TIM-MACHINE
MODEL XS

CNC 3D

Profile bending machine

MODEL XS

CNC 3D FP

Full equipment
One central 3D camera
high precision

  • This bending machine is equipped with only one central high precision 3D camera.
  • The machine can bend arches with one radius automatically in one process.
  • The machine can bend arches from 350 mm to 1500 mm in the automatic mode.
  • Larger radii than 1500 mm can be bent in the NC mode – semi-automatically.
  • This machine model is equipped with an automatic platform that automatically adjusts the encoder.
  • The machine is equipped with a laser device to ensure symmetrical arches.
  • The machine is equipped with a NFC device that offers a secure way to sign in and sign out in the software.
  • The NFC device enables data security on the machine.
  • The machine is equipped with a remote controller which is very useful for longer profiles so that the single operator can insert into and take out profiles from the machine more easily.

Profiles bending possibility

configure your machine and ask for the best price
Maximum profile height10 – 120 mm
Maximum profile width10 – 60 mm
Maximum profile (height + width) – Axis100 x 40 mm
Maximum profile (width + height) – Axis60 x 40 mm
Maximum profile lengthUnlimited
Profile wall thickness1 – 3 mm

Arches bending possibility

Automatic bending arches with one radius
Automatic bending arches with two radii
Automatic bending arches with three radii
Manual bending arches

TECHNICAL SPECIFICATIONS

Name TIM-MACHINE
Model MODEL XS
Type of machine CNC 3D FP
Electric motor for X axis – back axle – 1 pcs 5,5 KW
X axis – two back axles – max torque 1290 Nm
Electric motor for X axis – middle axle – 1 pcs 2,2 KW
X axis – middle axle – max torque per middle axle) 1163 Nm
Electric motor for Y axis – threaded spindle – 1 pcs 2.2 kW
Y axis – max torque per threaded spindle 500 Nm
Number of propulsive axles 3
Dimensions 1700 x 1550 x 3650mm
Weight 950 kg
Axle rotation speed 0-20 rpm
Axle diameter 70 mm
Axle height 200 mm
Voltage 3x380V~50 Hz
Warranty 1 year
Country of origin Serbia

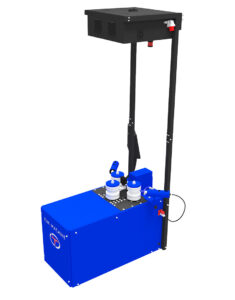

MODEL-XS-CNC-3D-FP-19

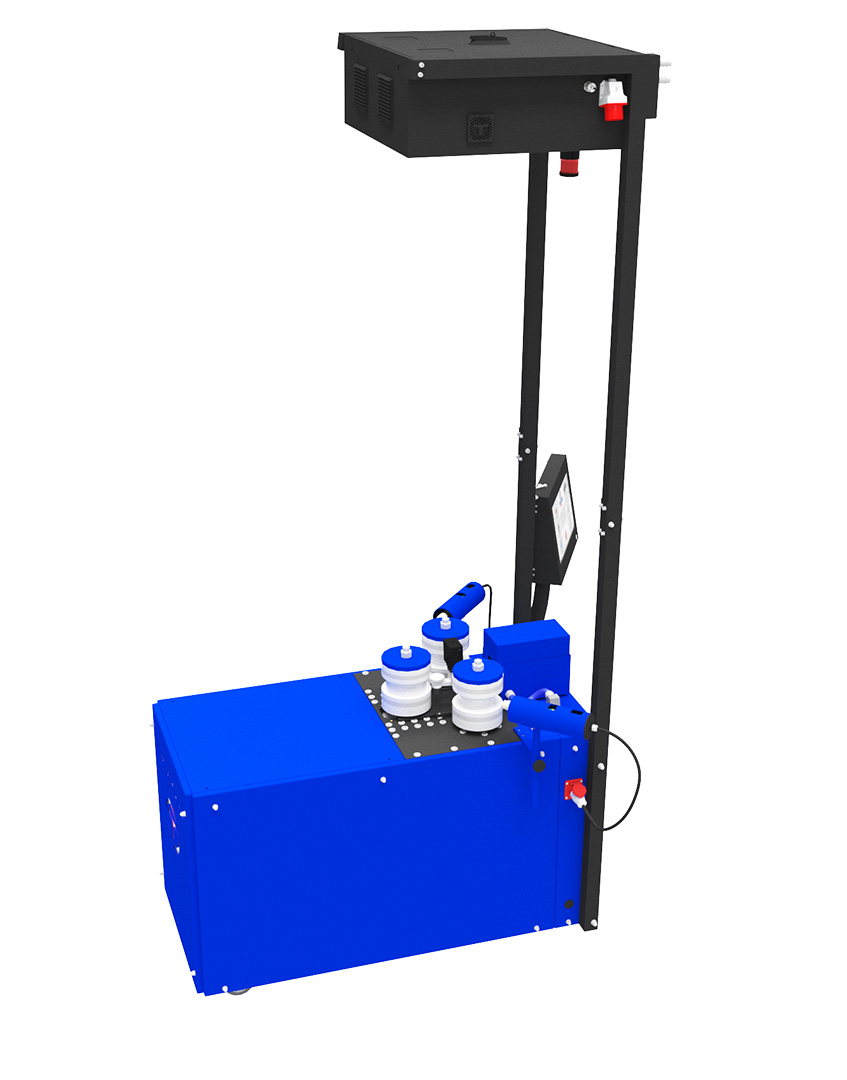

MODEL-XS-CNC-3D-FP-18

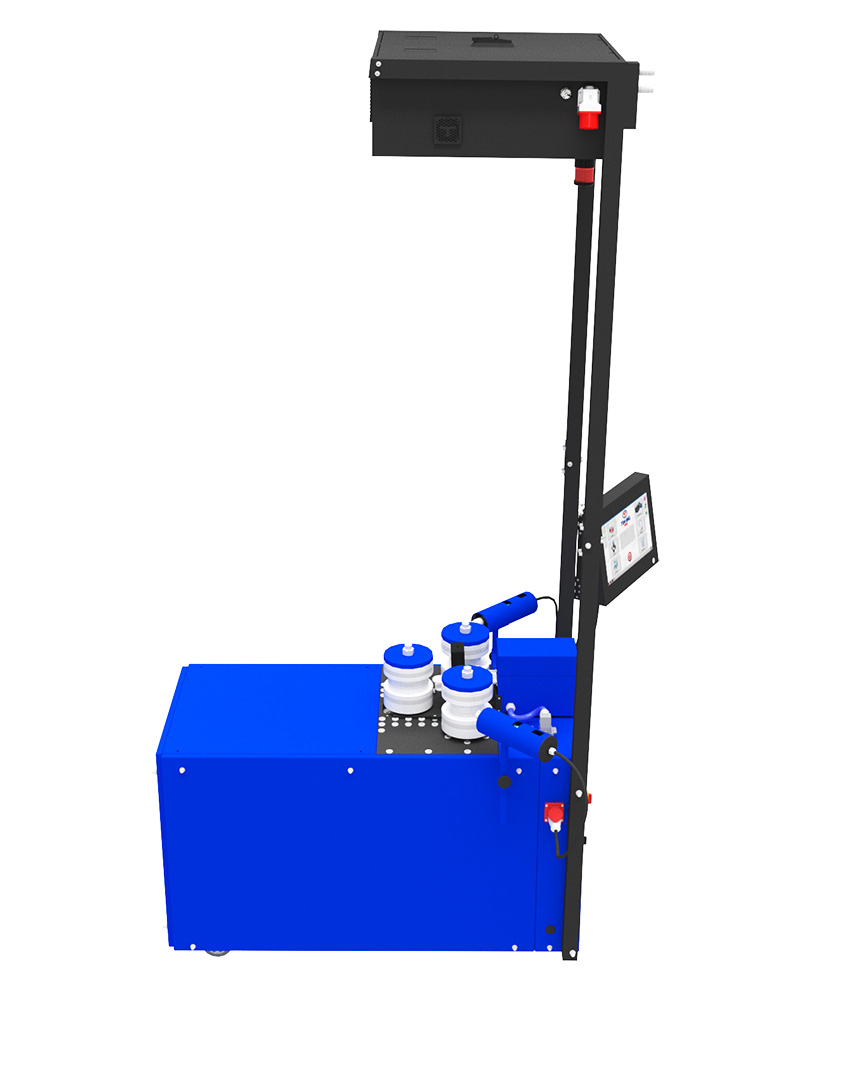

MODEL-XS-CNC-3D-FP-17

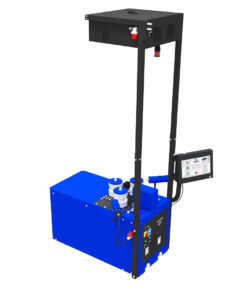

MODEL-XS-CNC-3D-FP-15

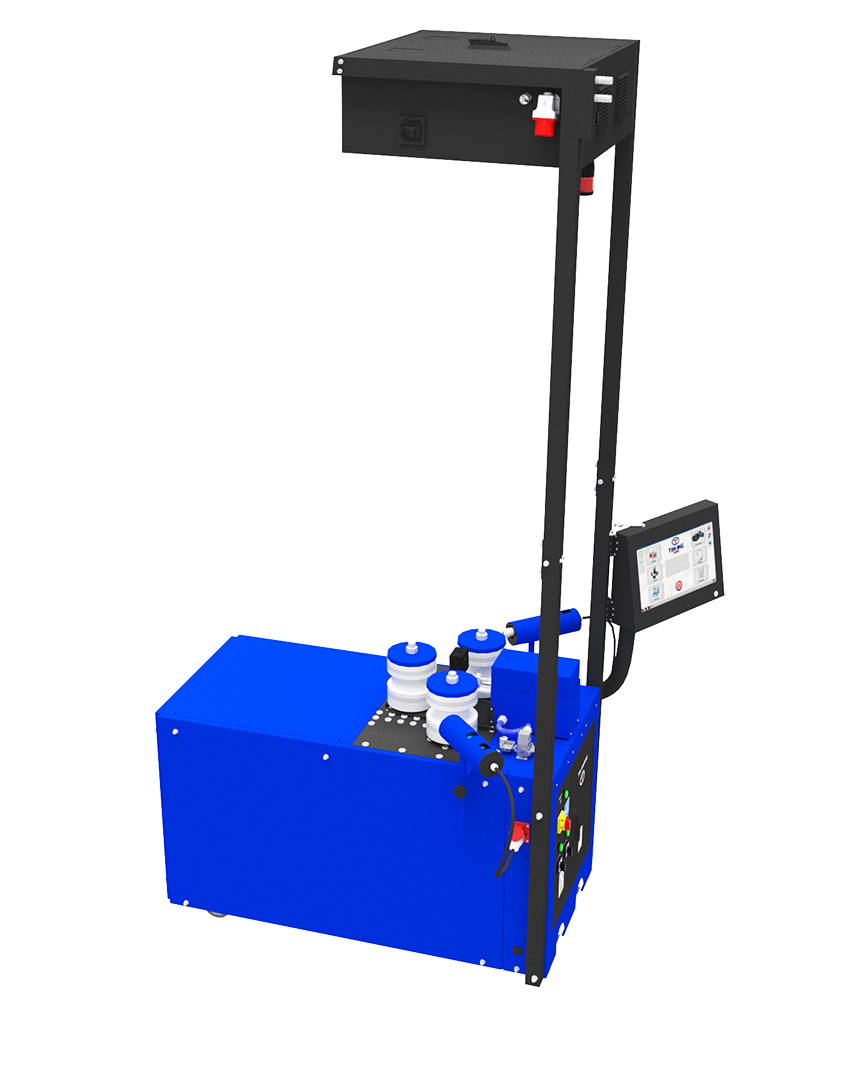

MODEL-XS-CNC-3D-FP-16

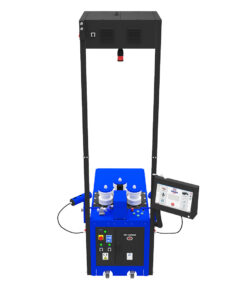

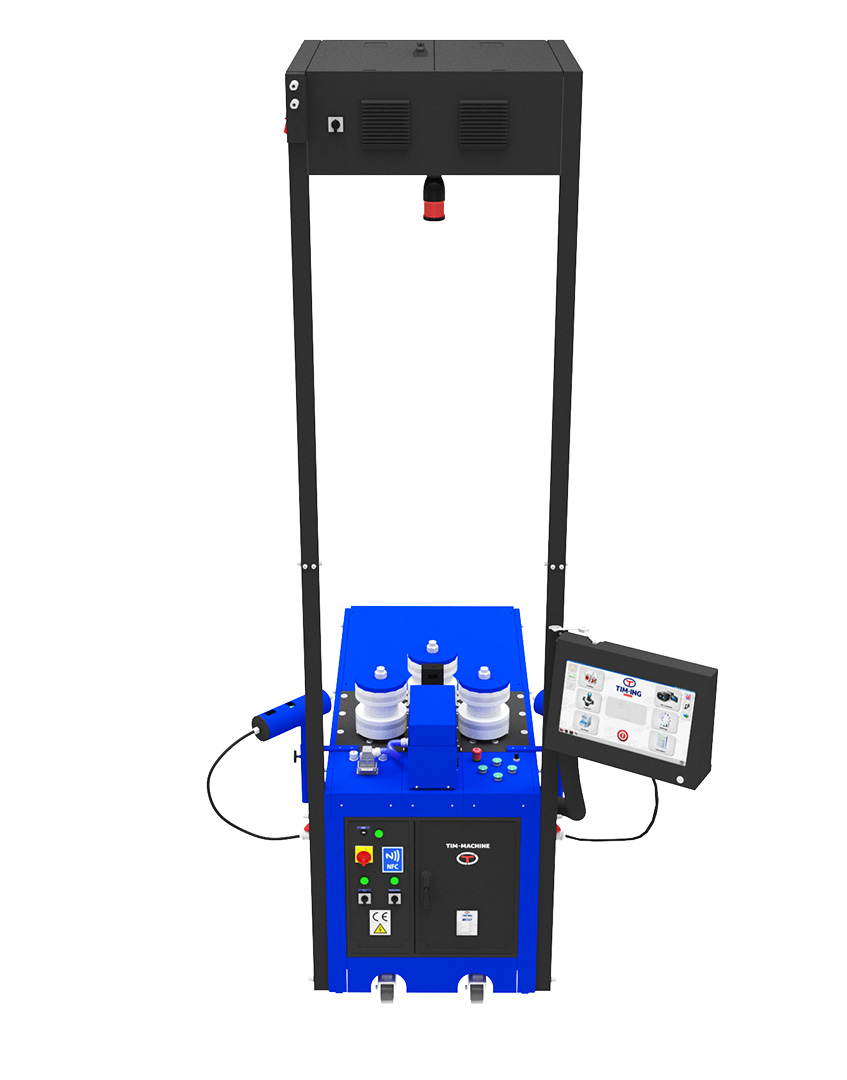

MODEL-XS-CNC-3D-FP-12

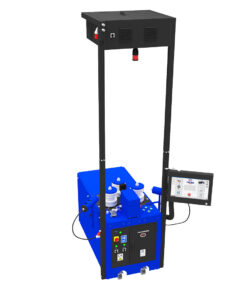

MODEL-XS-CNC-3D-FP-13

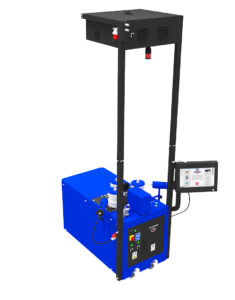

MODEL-XS-CNC-3D-FP-14

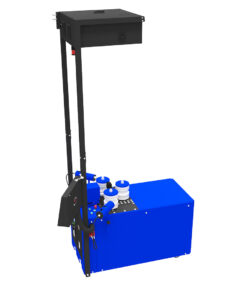

MODEL-XS-CNC-3D-FP-8
MODEL-XS-CNC-3D-FP-11

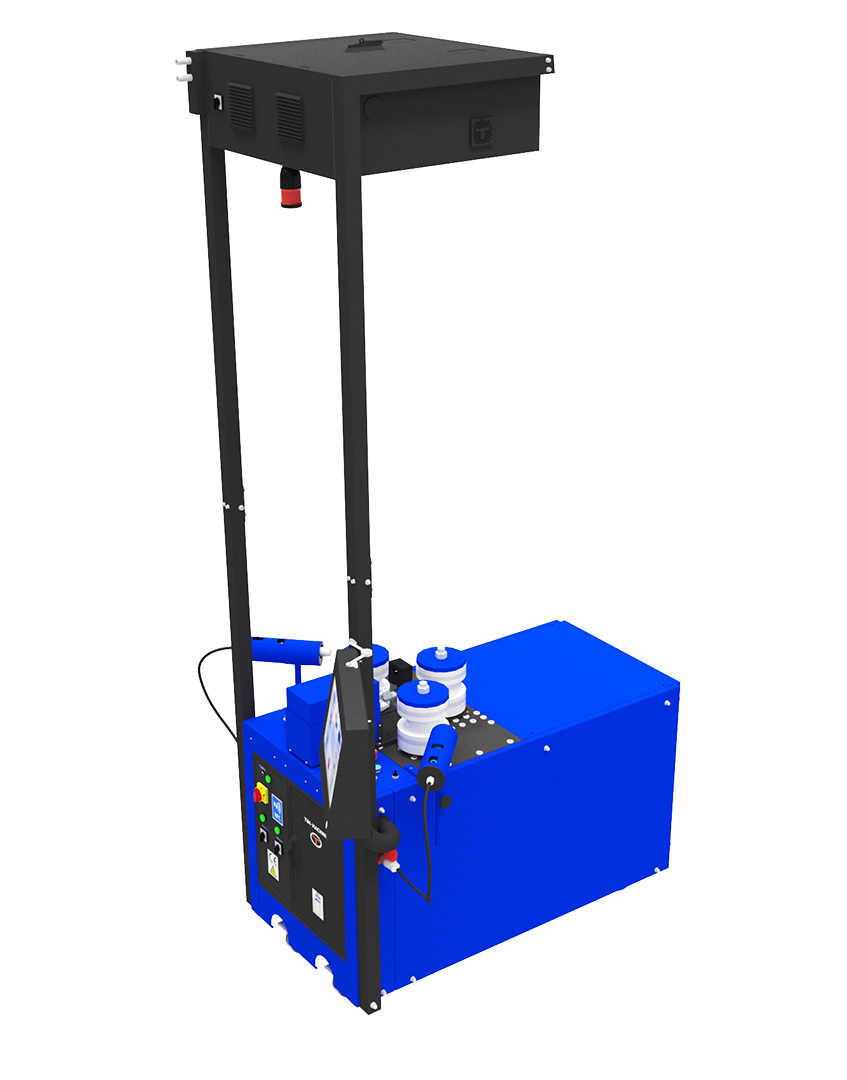

MODEL-XS-CNC-3D-FP-9

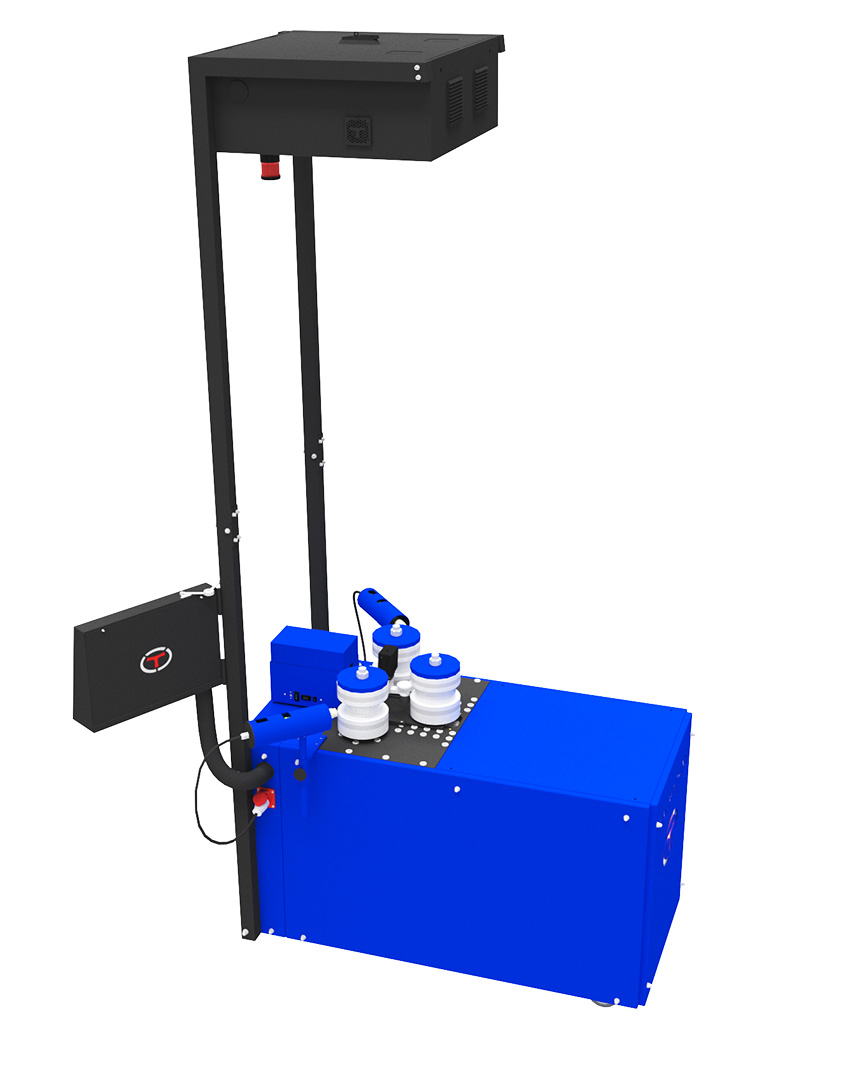

MODEL-XS-CNC-3D-FP-6

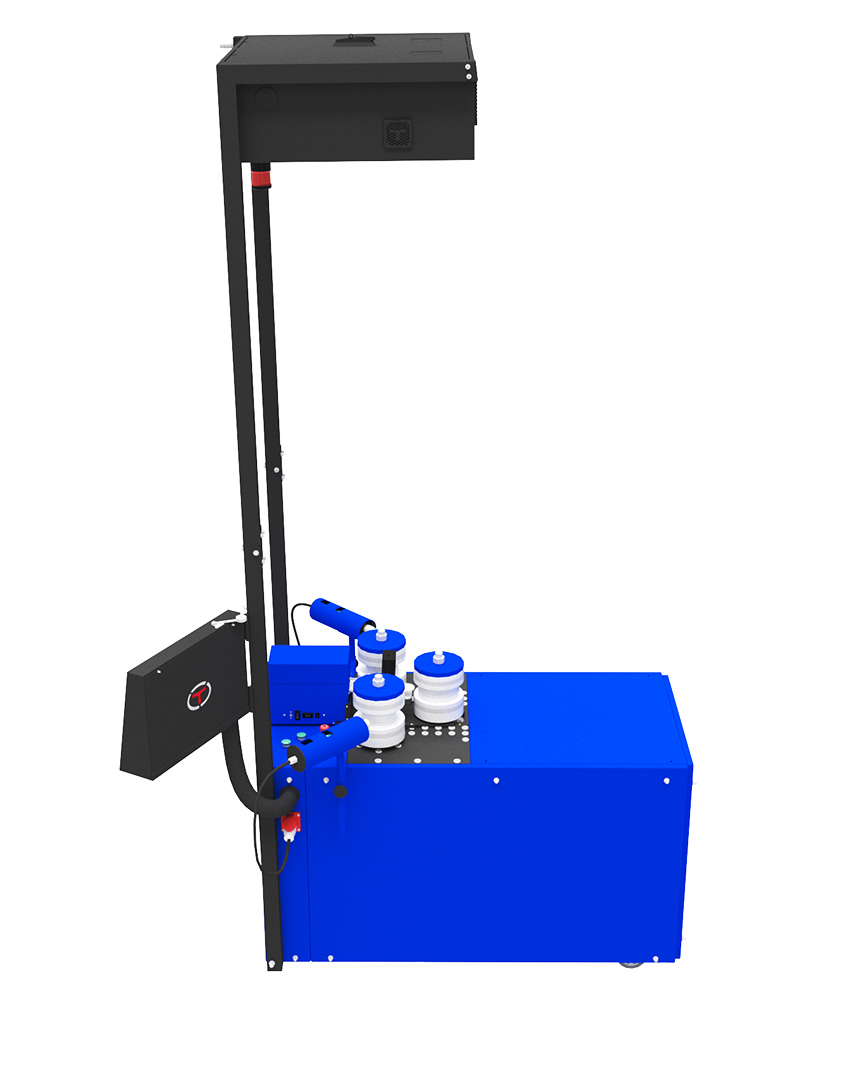

MODEL-XS-CNC-3D-FP-7

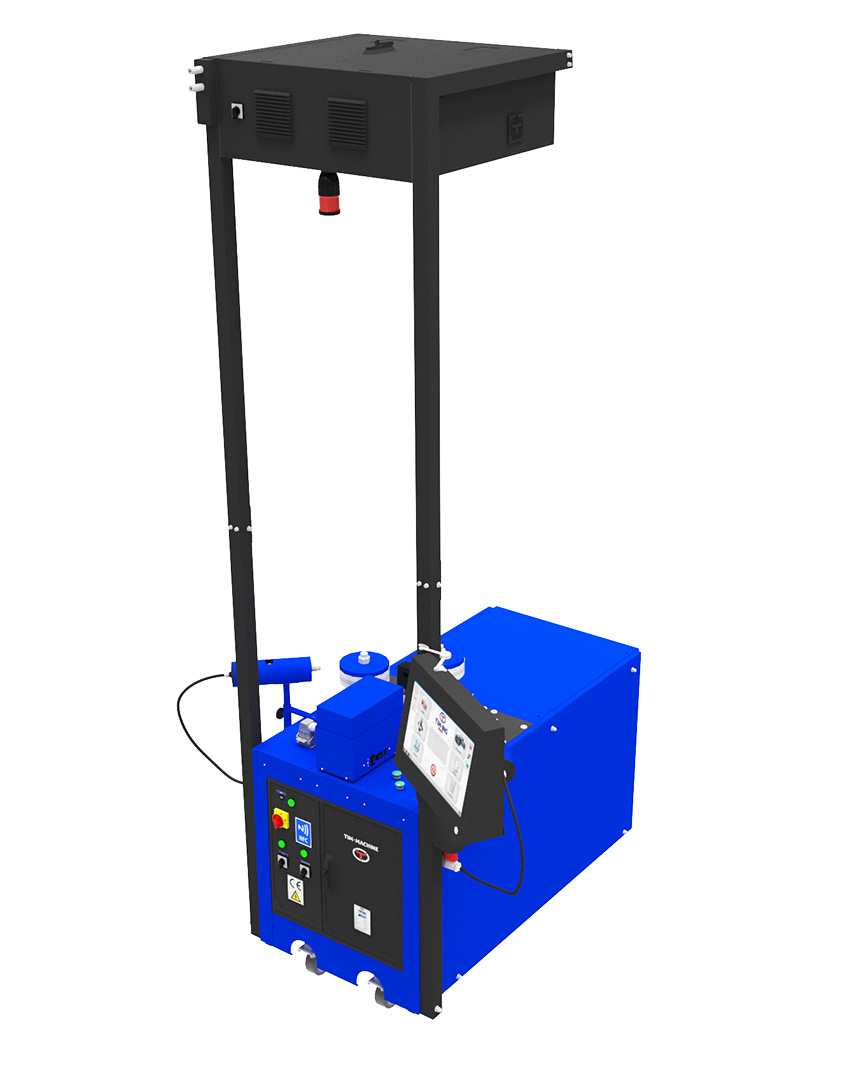

MODEL-XS-CNC-3D-FP-10

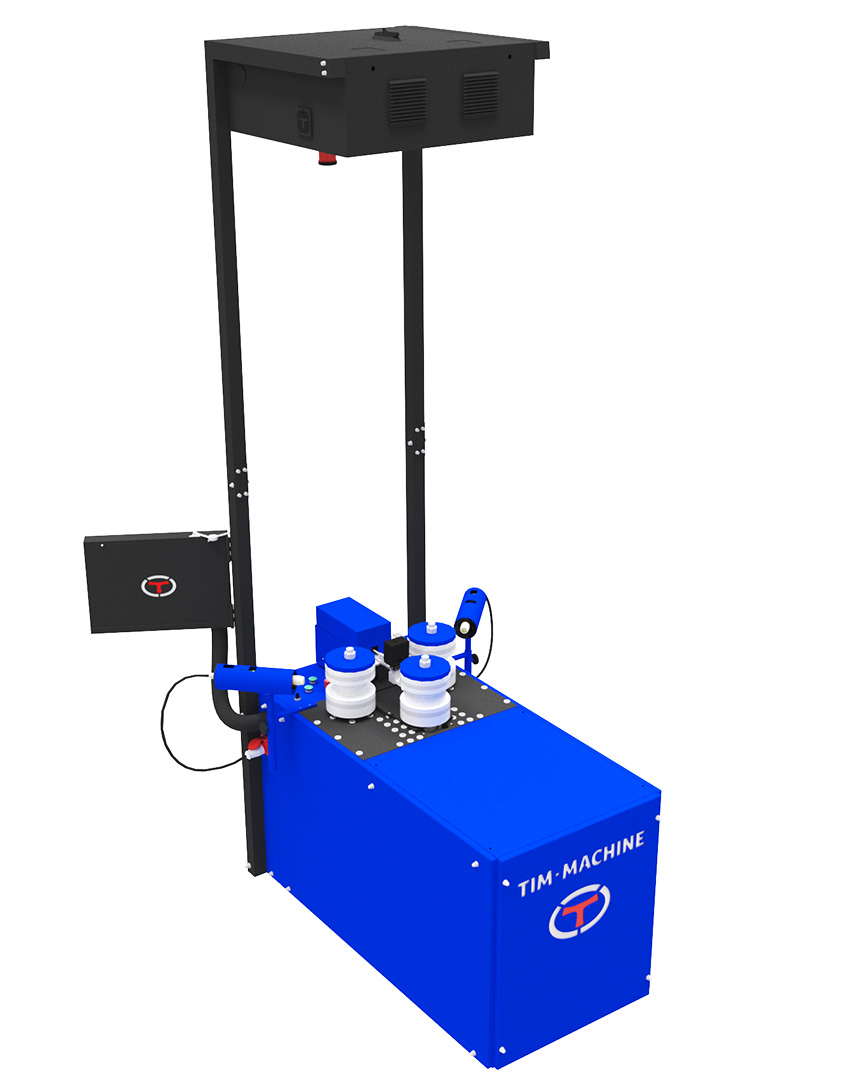

MODEL-XS-CNC-3D-FP-4

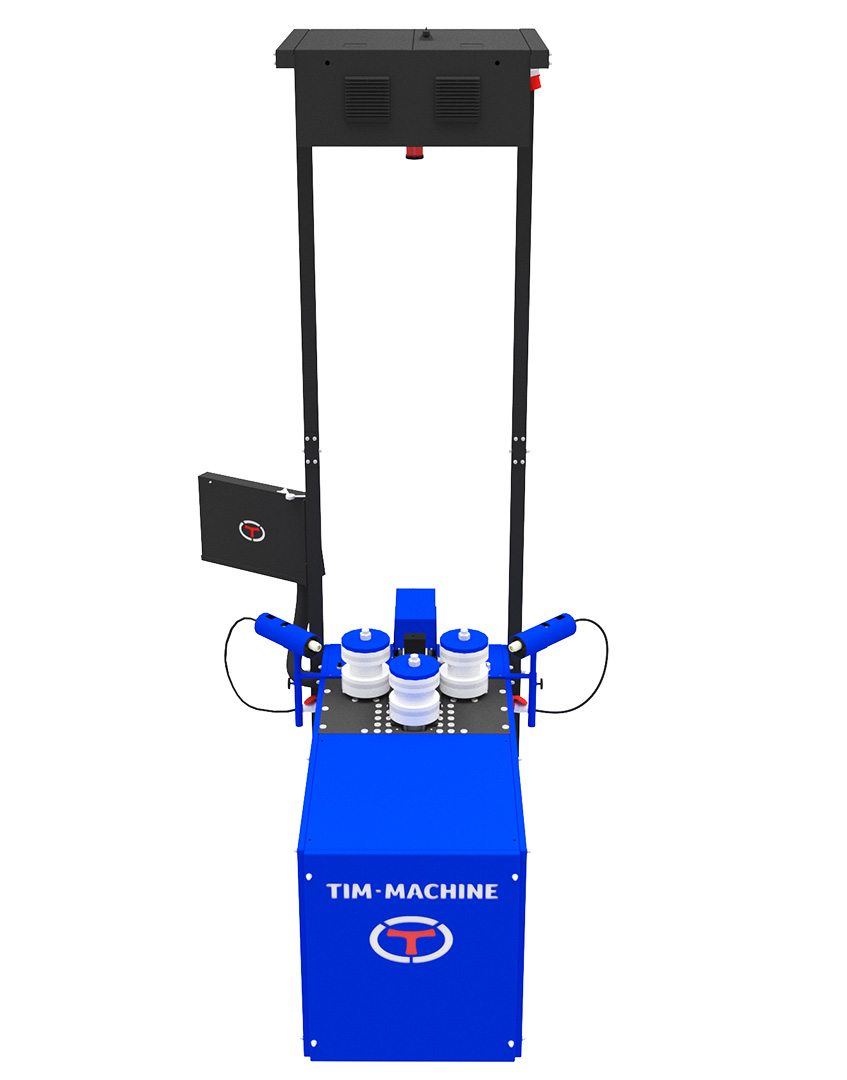

MODEL-XS-CNC-3D-FP-2

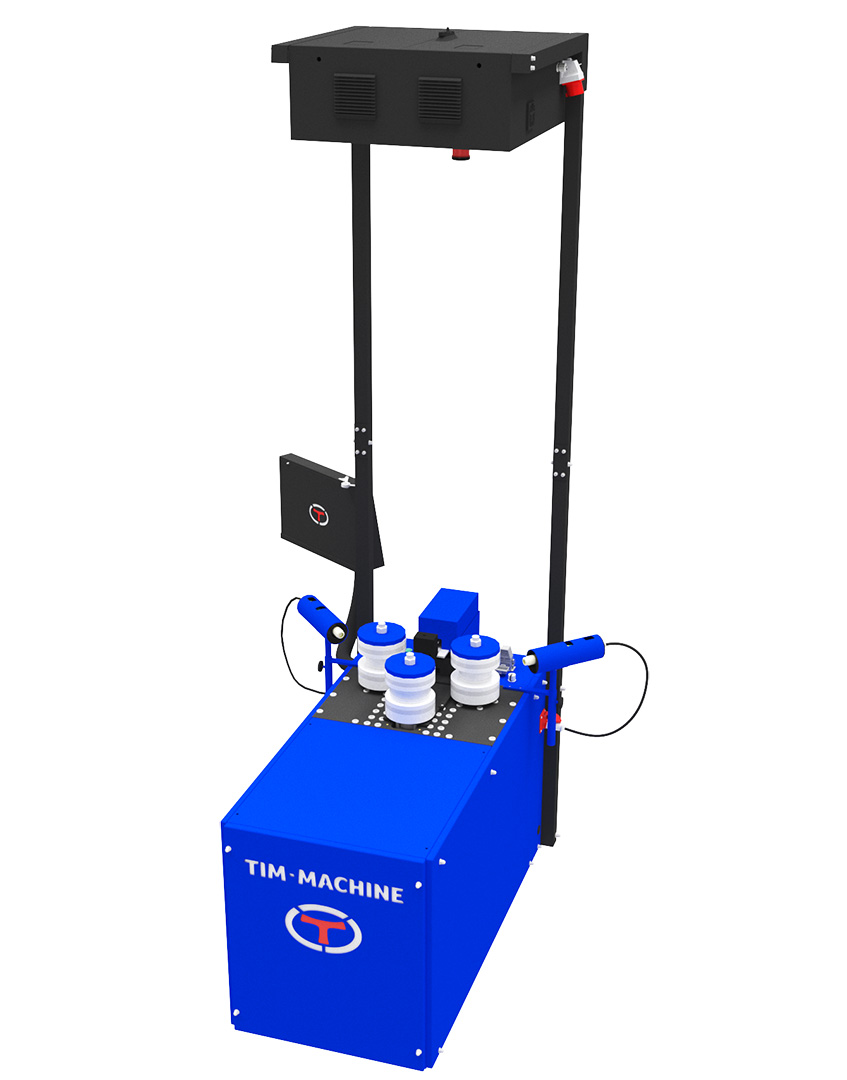

MODEL-XS-CNC-3D-FP-1

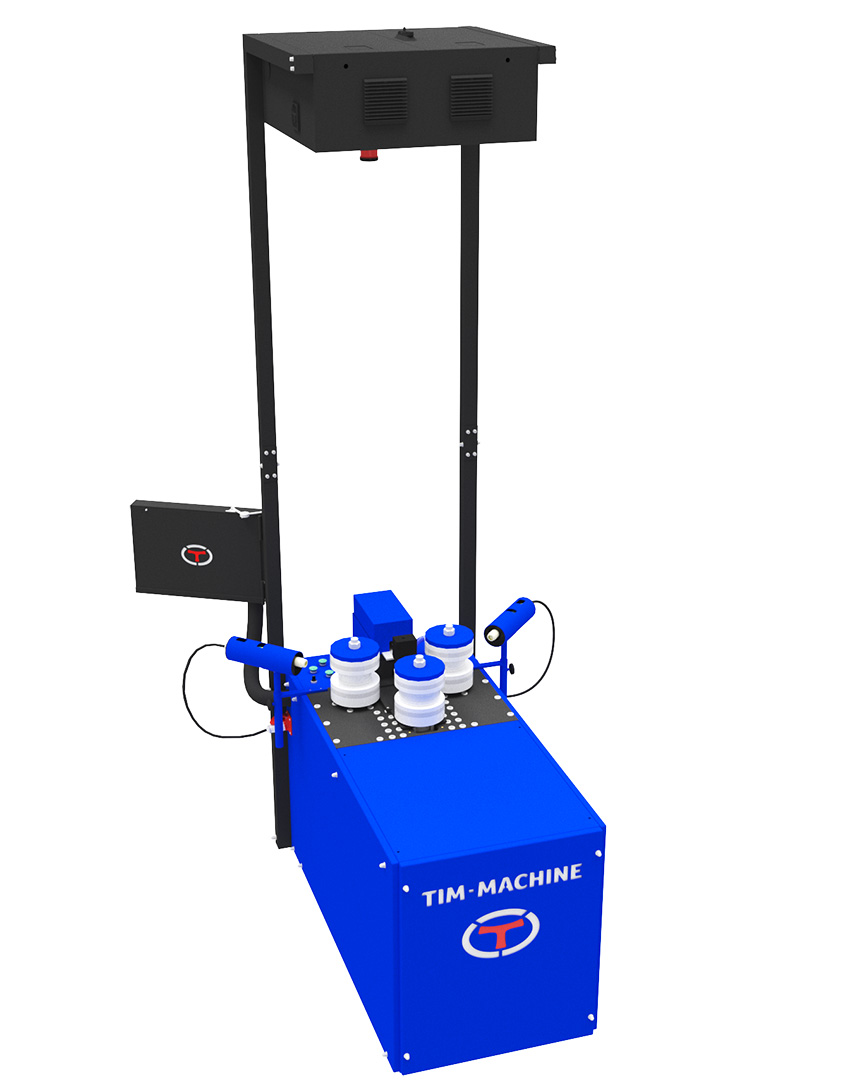

MODEL-XS-CNC-3D-FP-3

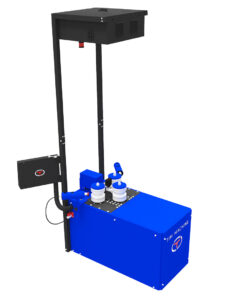

MODEL-XS-CNC-3D-FP-5

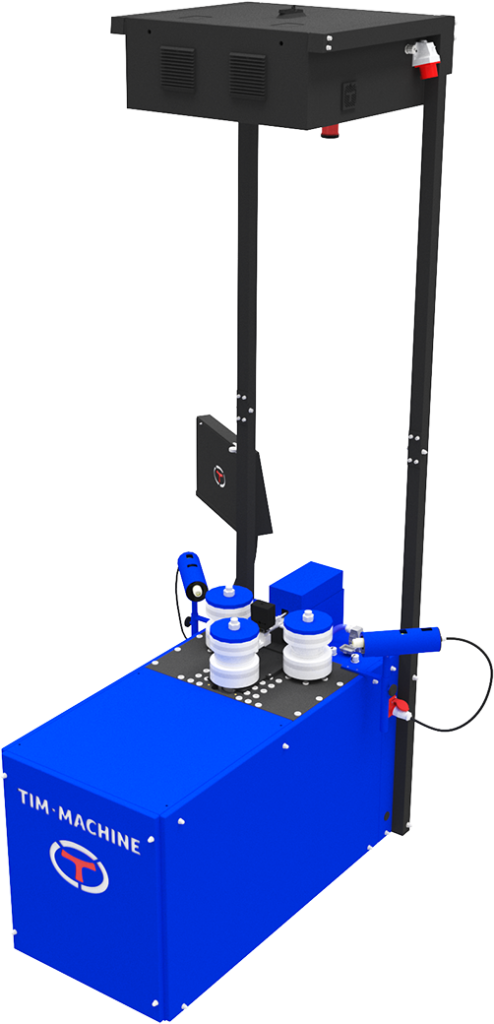

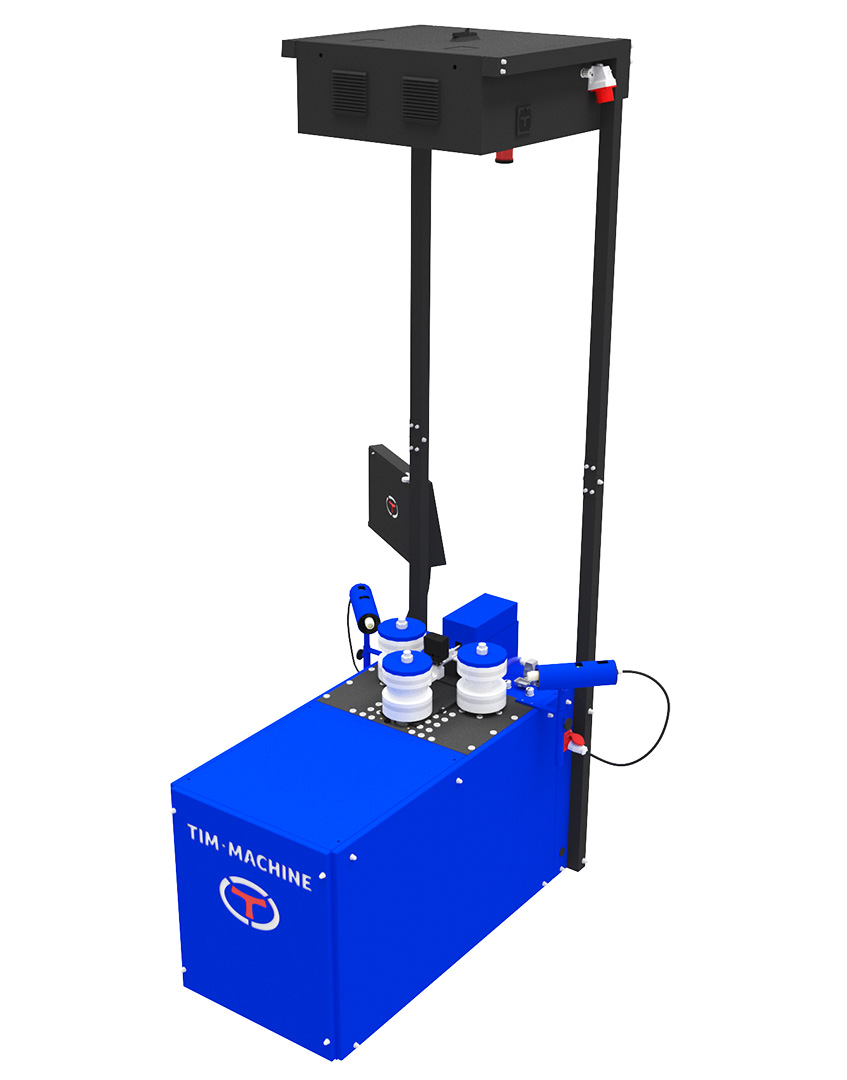

MODEL-XS-CNC-3D-FP-0
