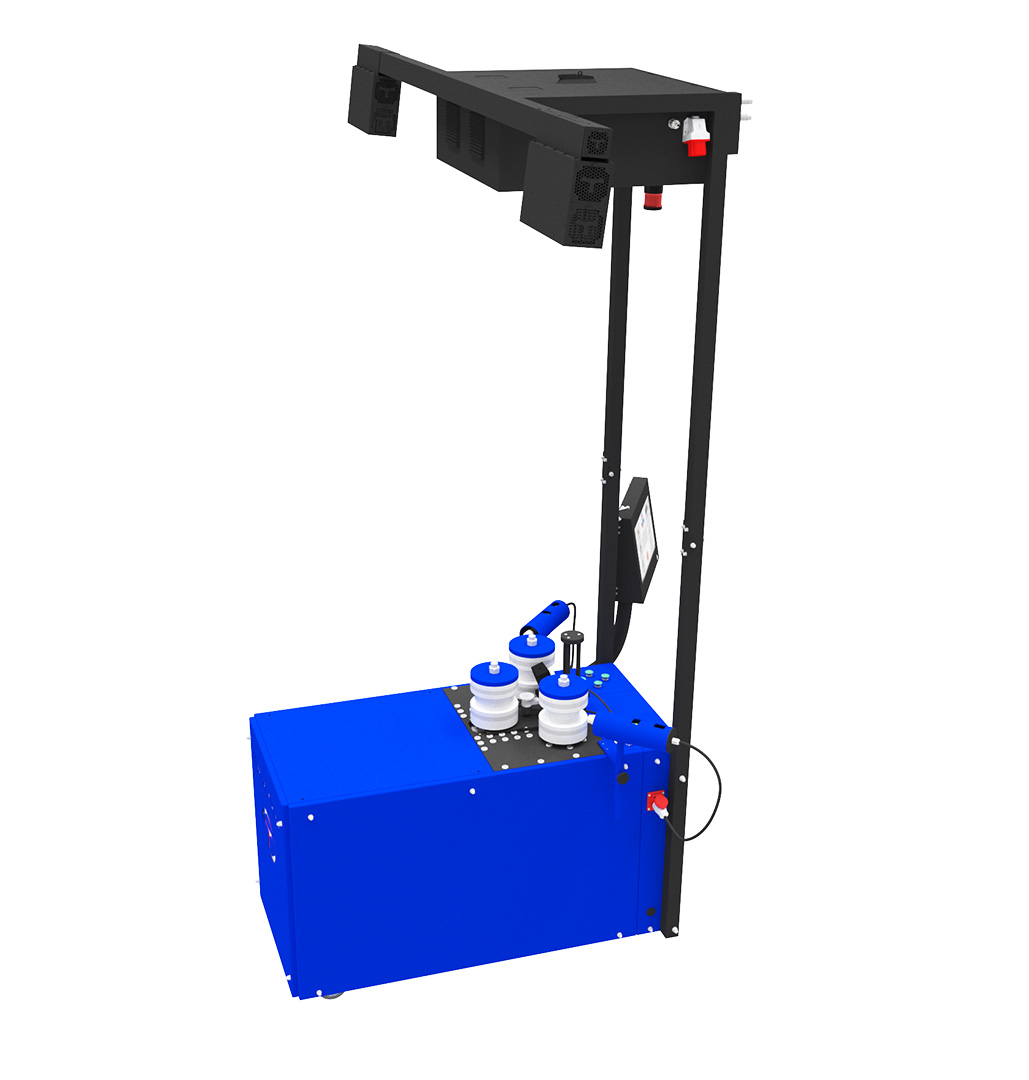

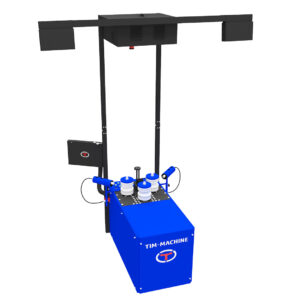

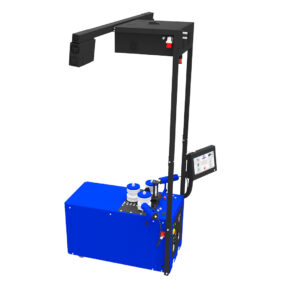

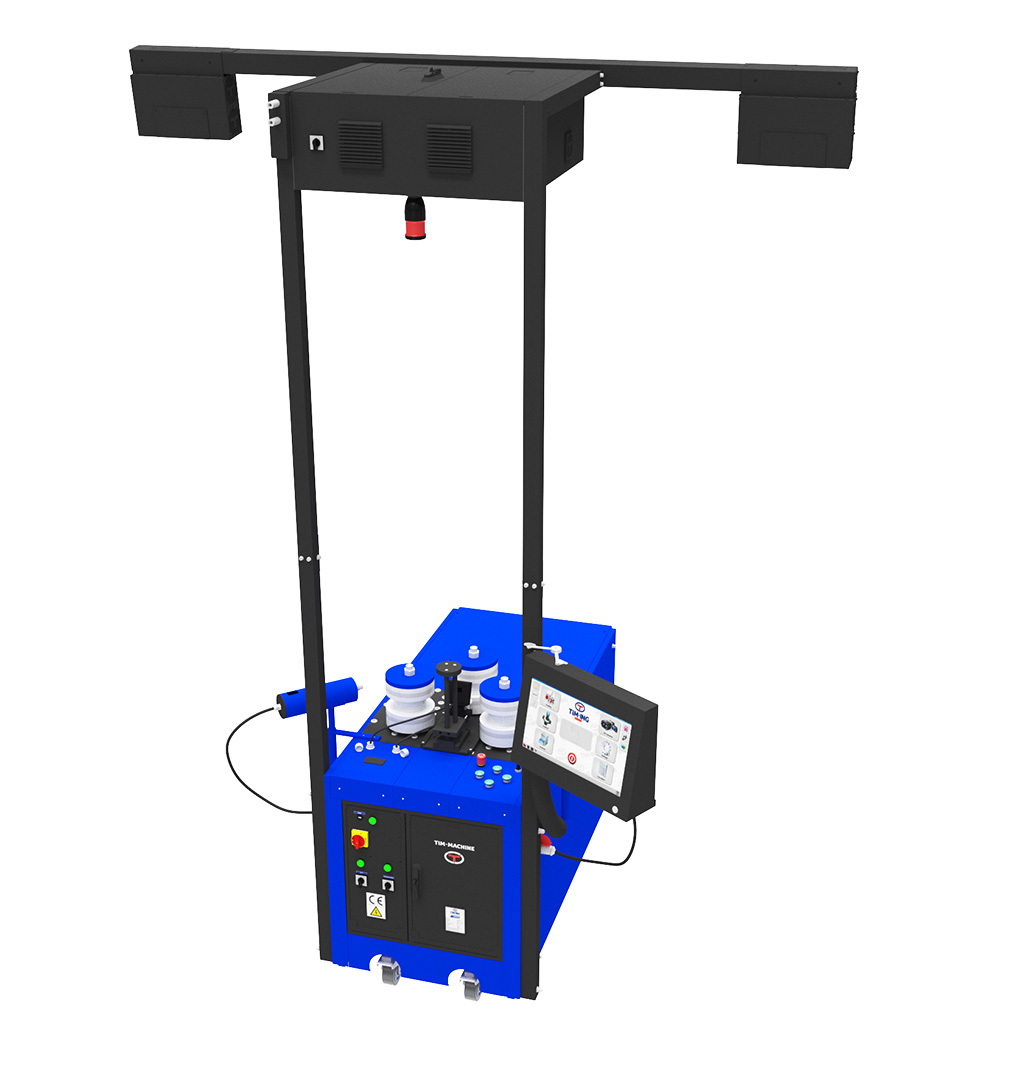

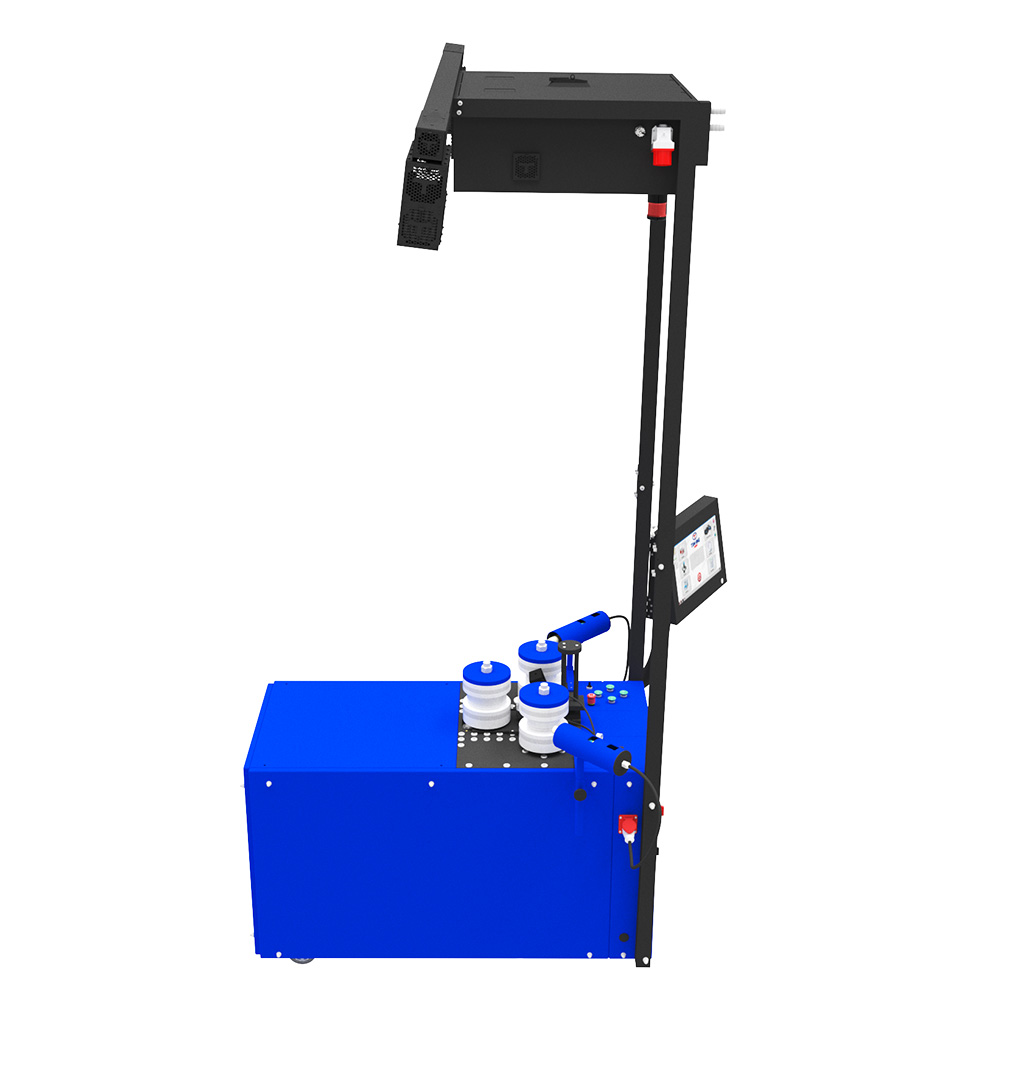

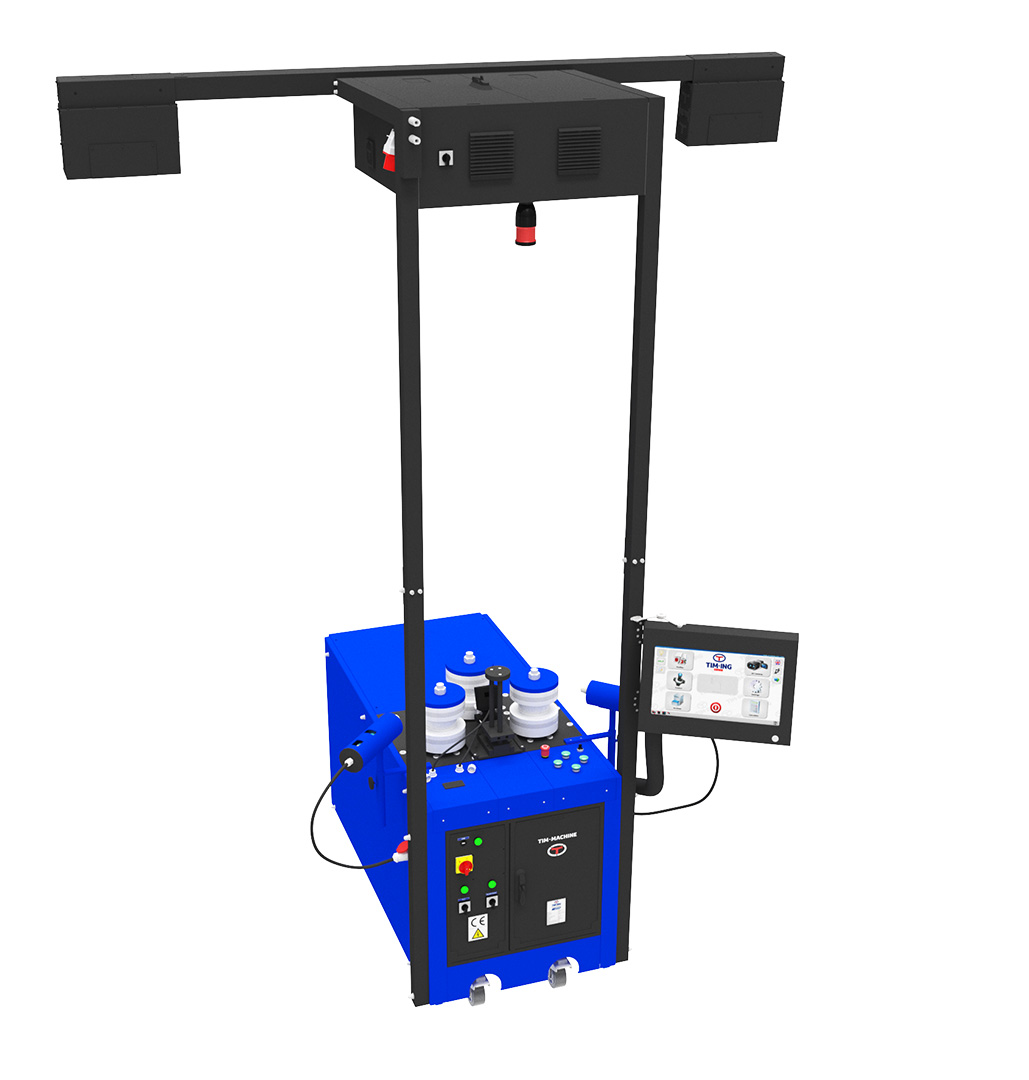

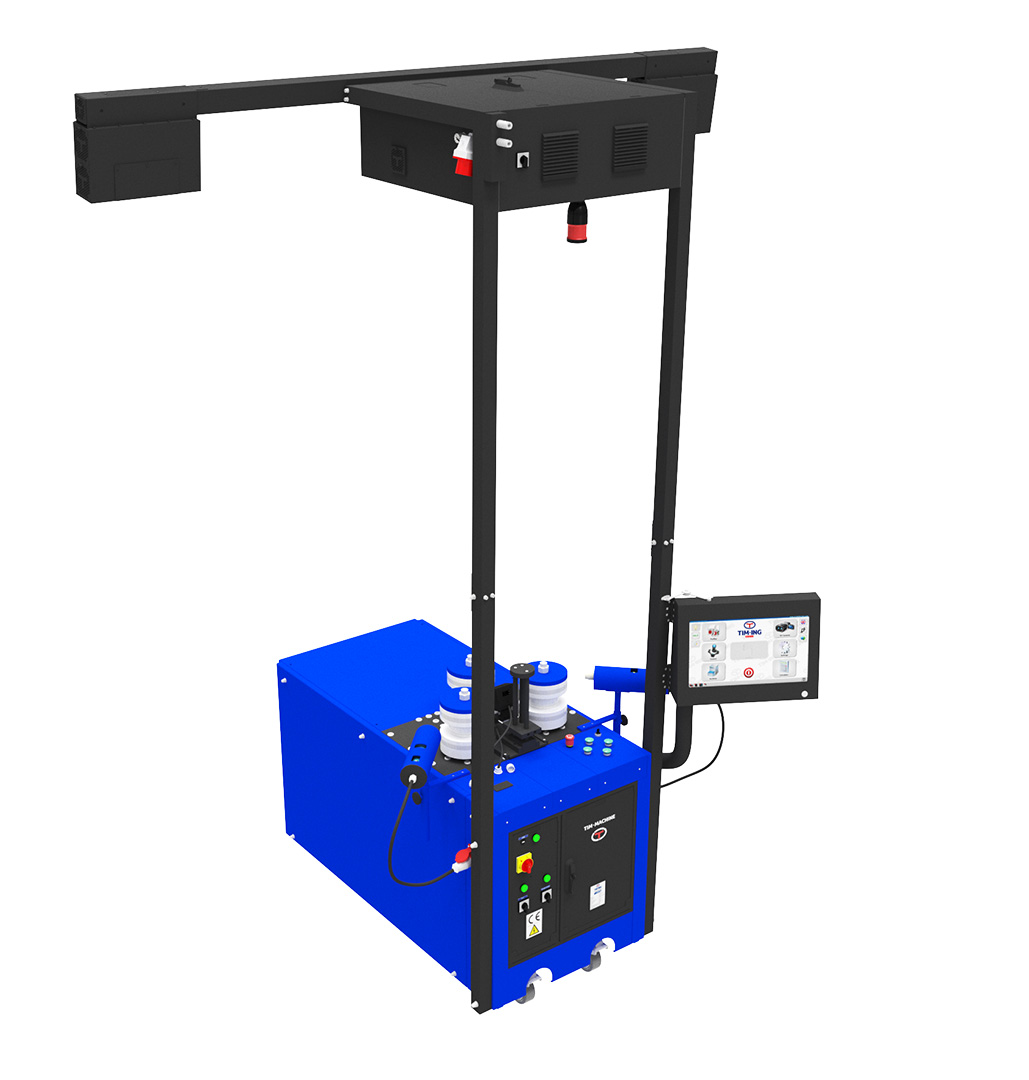

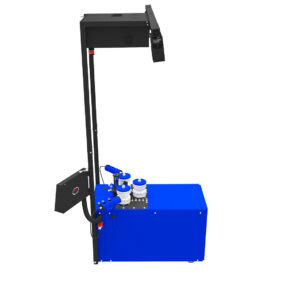

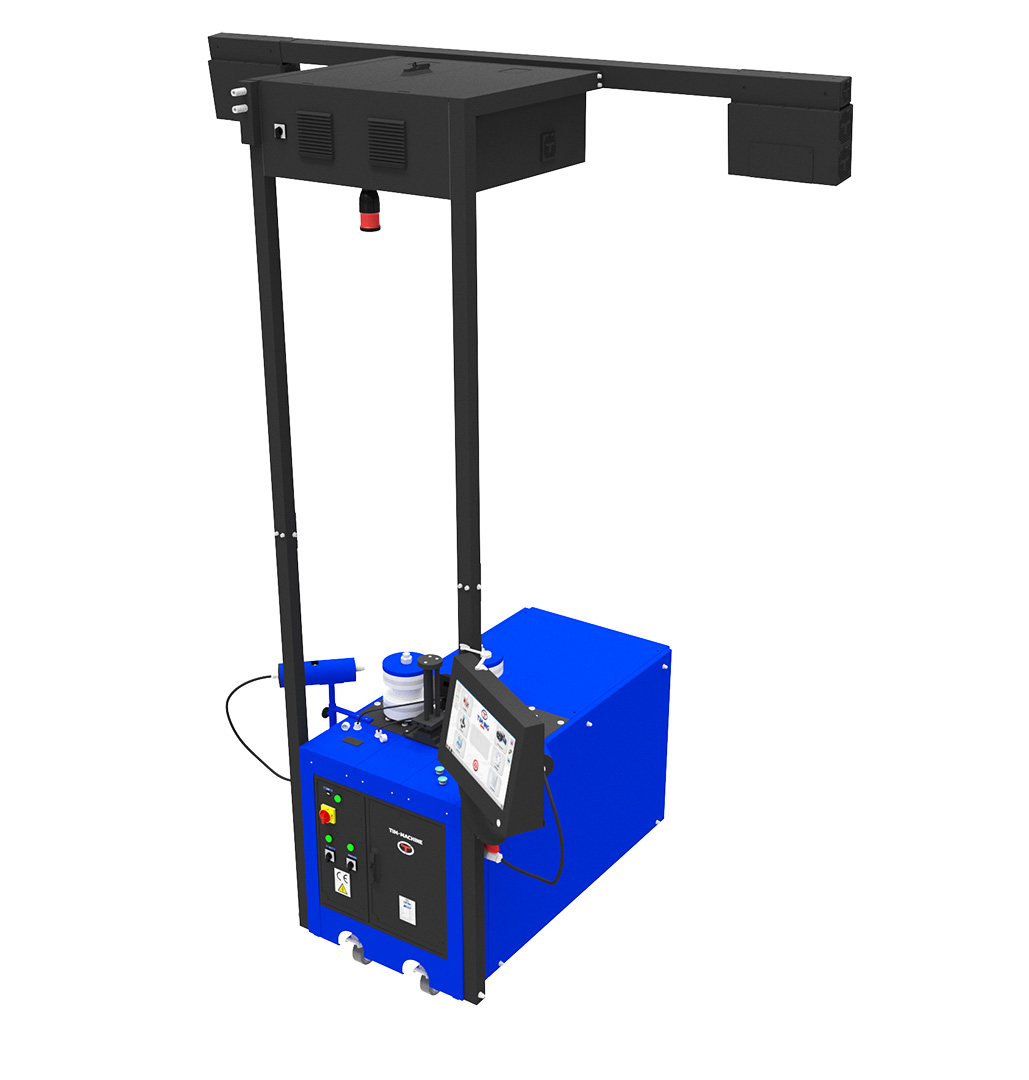

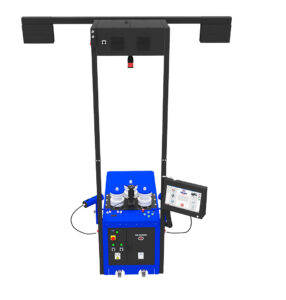

MODEL XS CNC 3D BHP - TIM-ING Centar

TIM-MACHINE
MODEL XS

CNC 3D

Profile bending machine

MODEL XS

CNC 3D BHP

Basic equipment
Three high precision
3D cameras

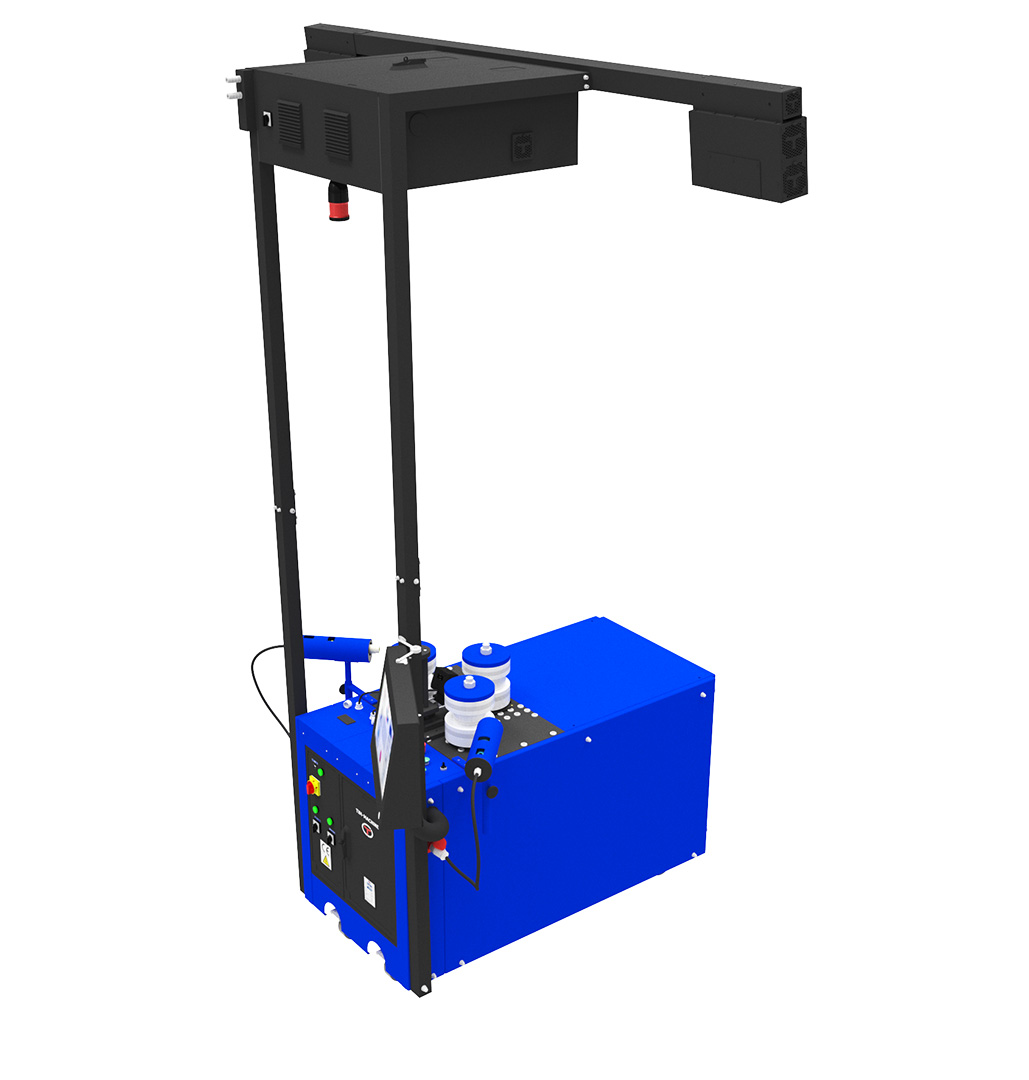

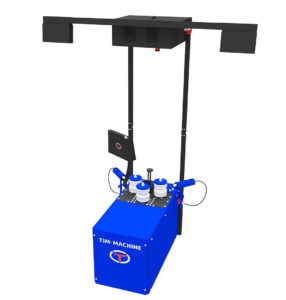

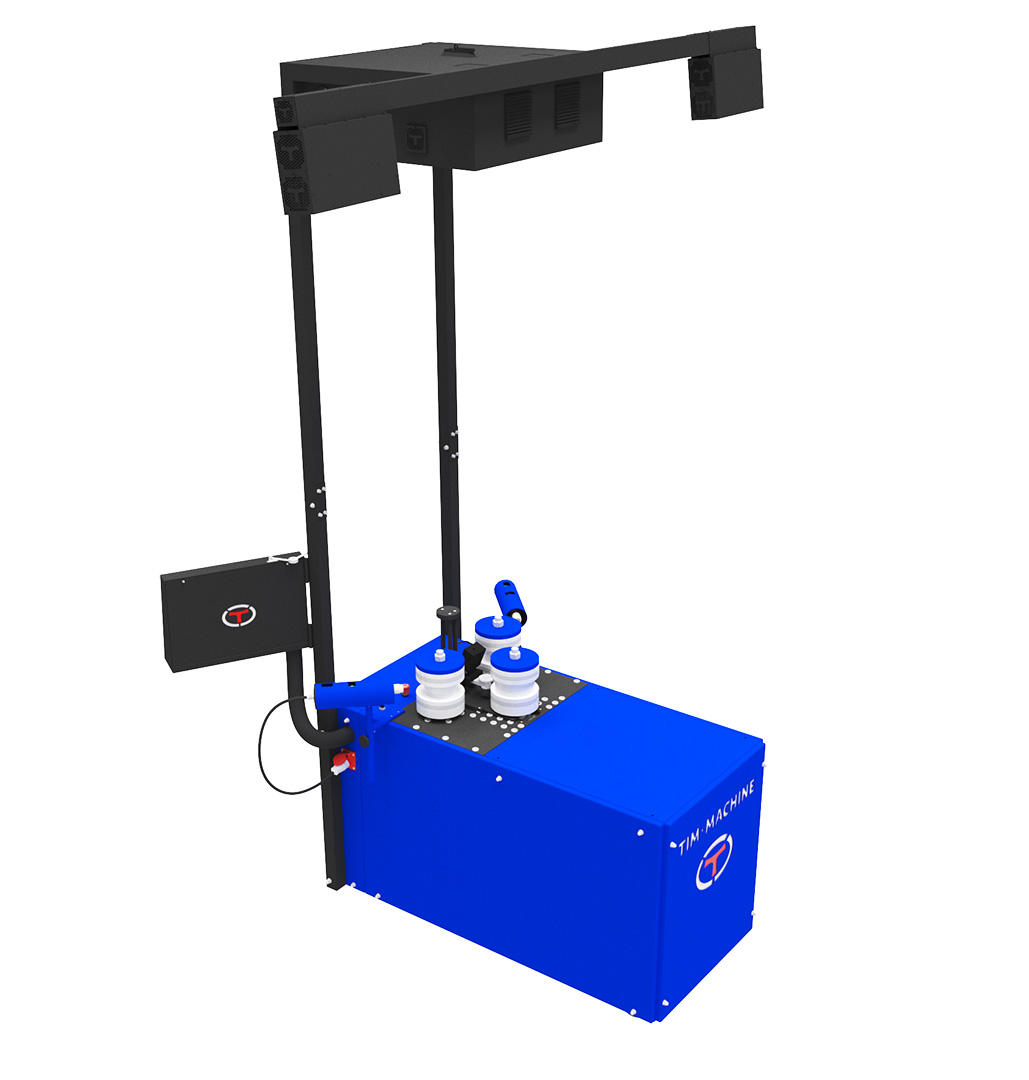

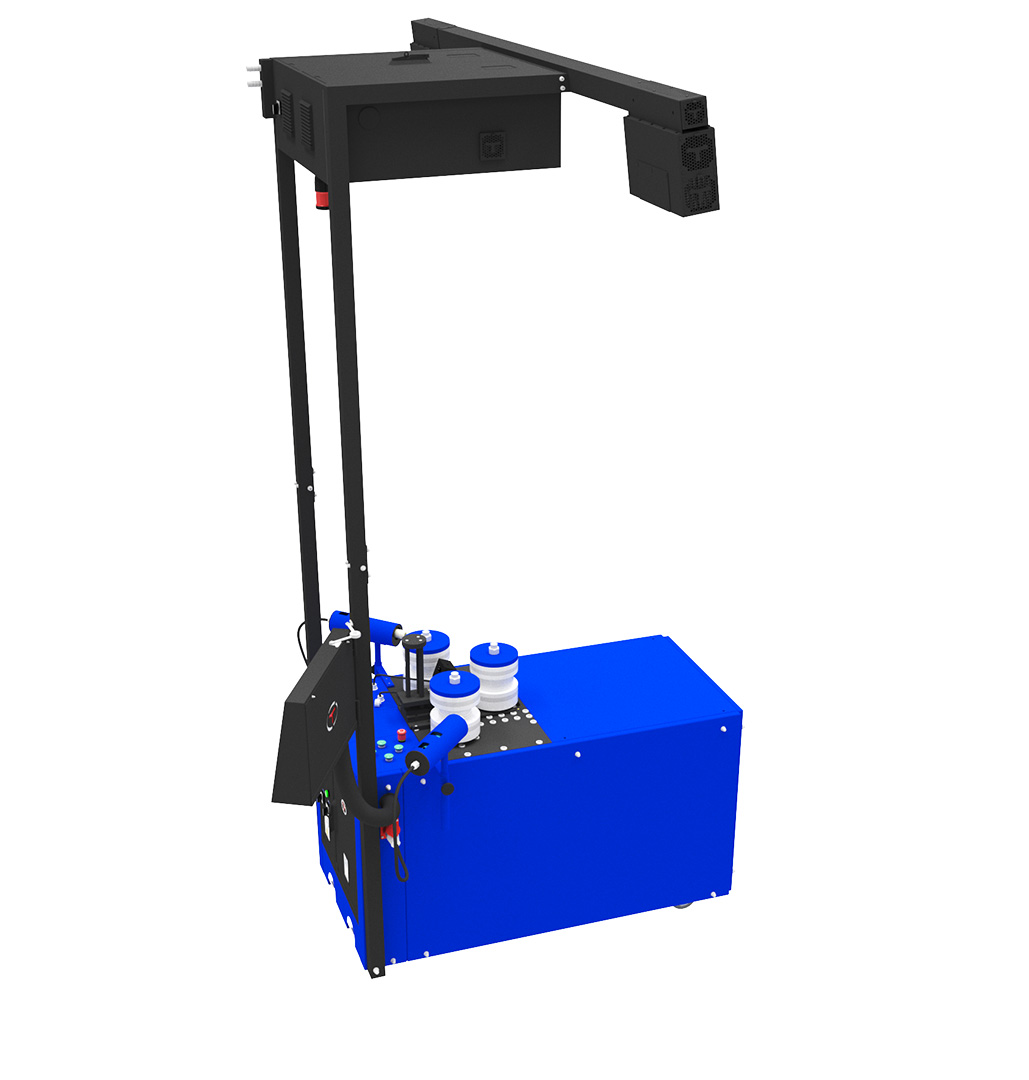

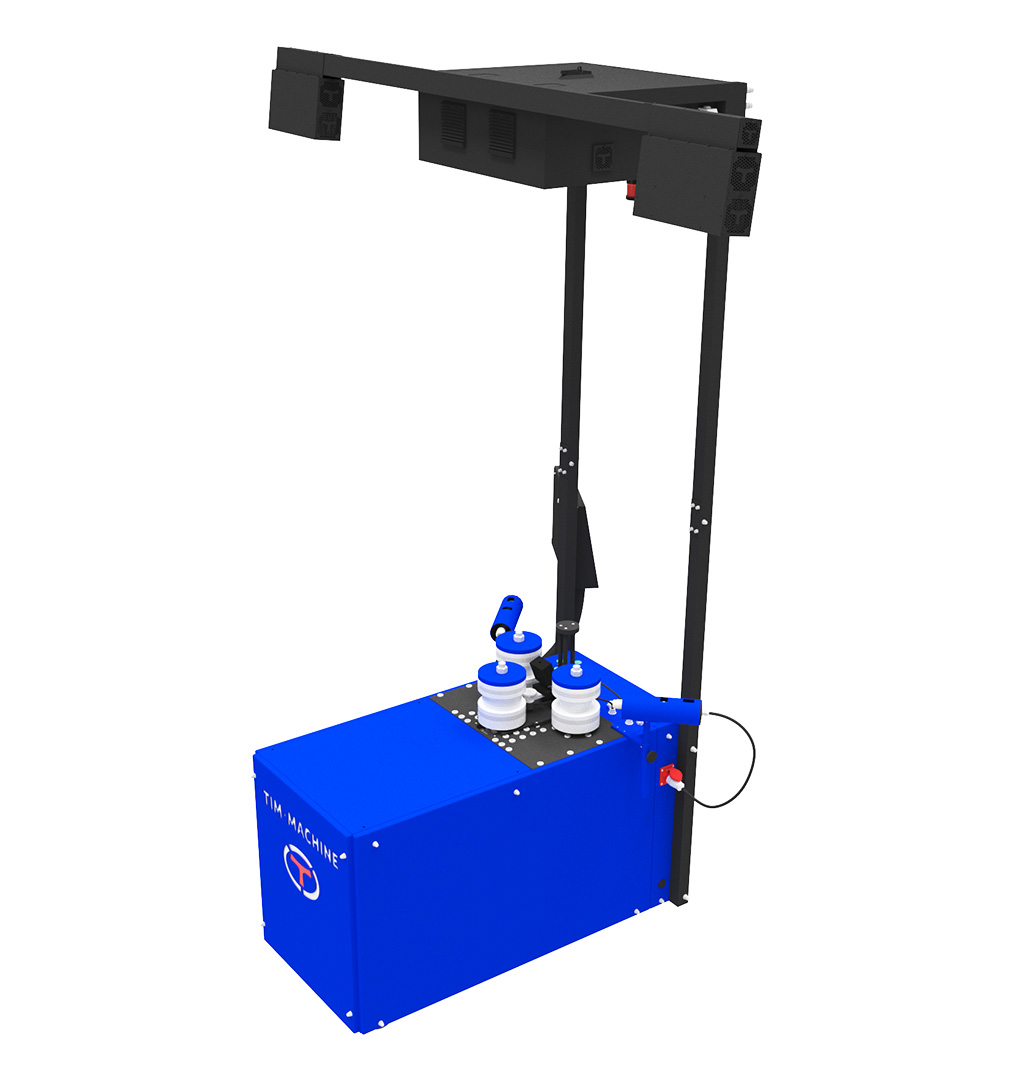

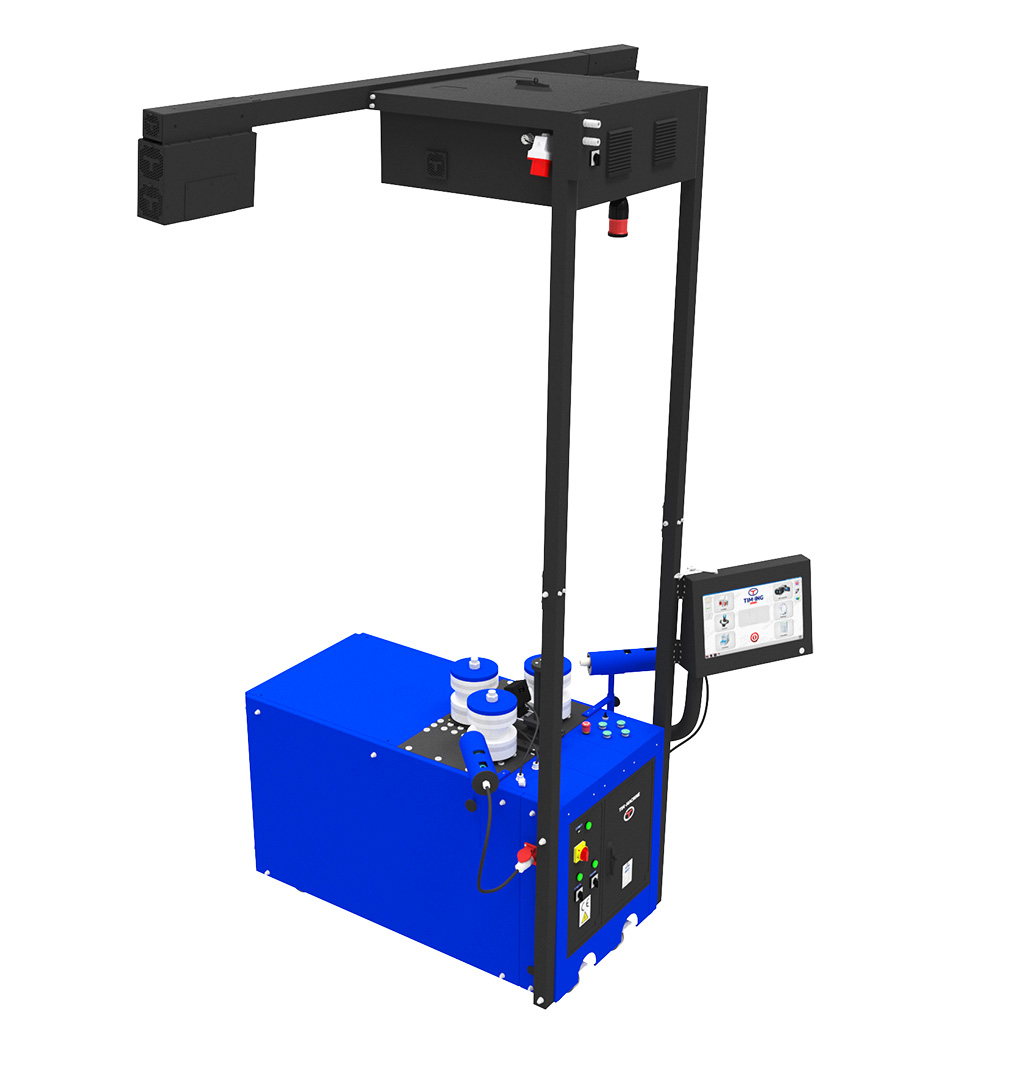

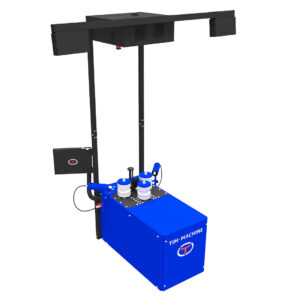

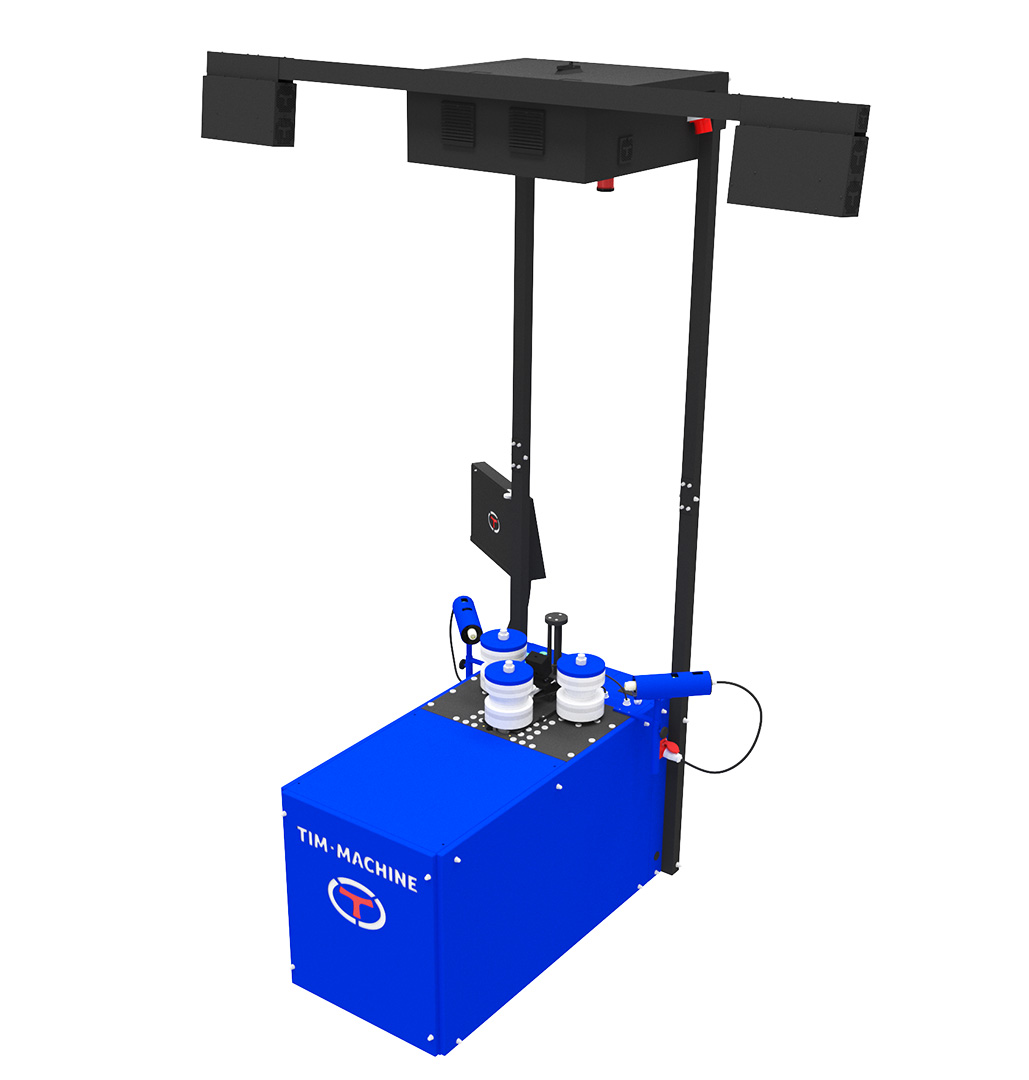

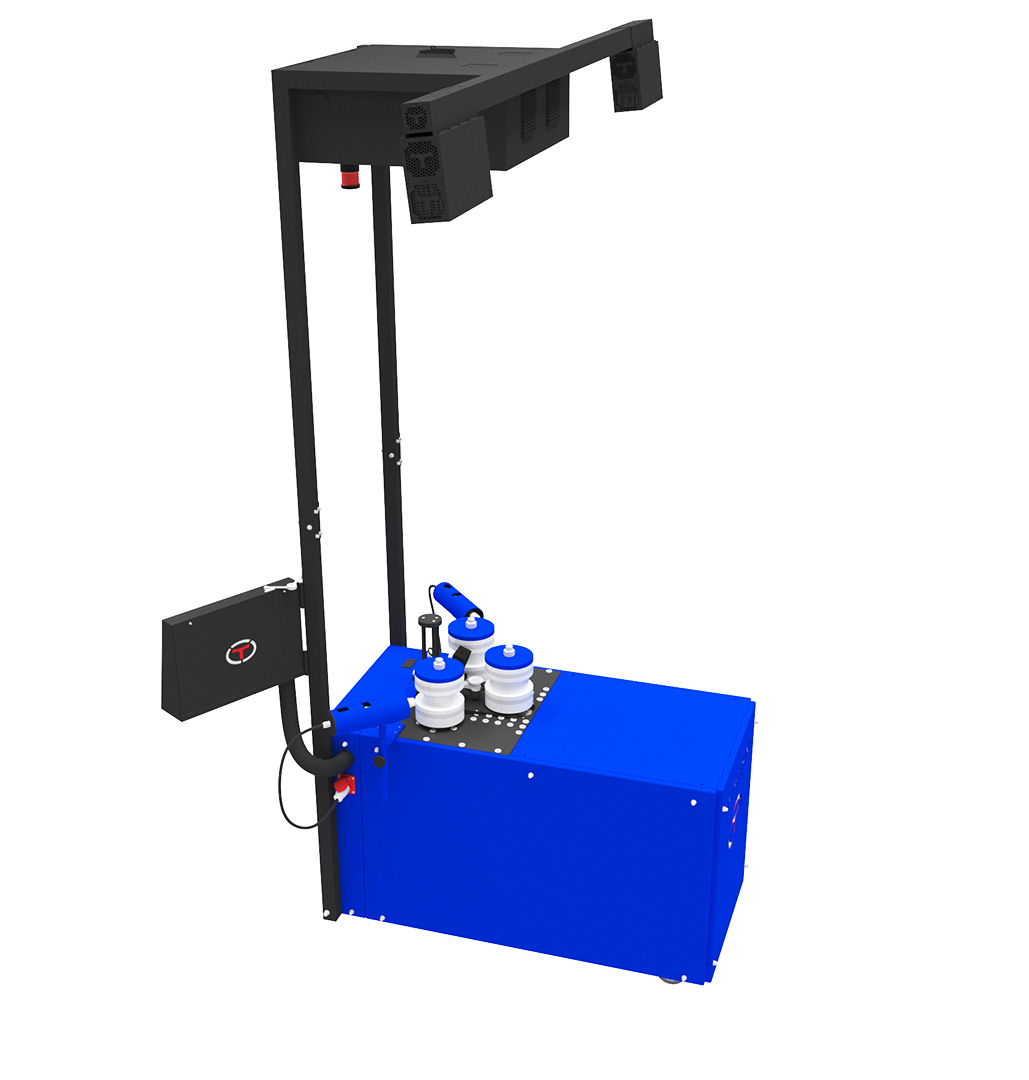

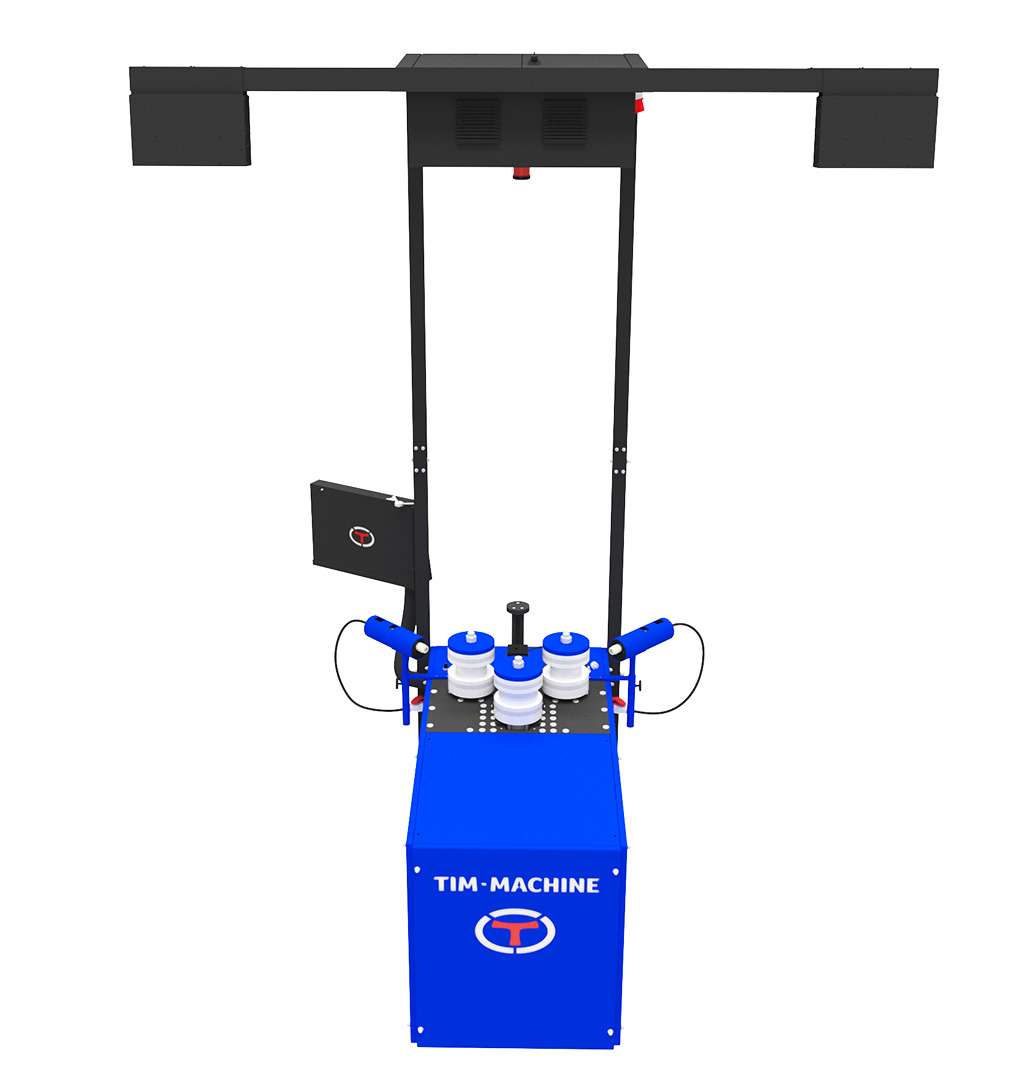

This bending machine is equipped with one central high precision 3D camera and two additional high precision 3D cameras placed at both sides.
This version machine having 3D cameras of high resolution are used for all profiles having the width of 15 mm and bigger than that.
The advantage of these high precision 3D cameras is that they are having the possibility to detect white, light, narrow, raw and dark profiles.
The machine can bend predefined complex arches that have one, two and three radii automatically in one process flow.
The machine can bend arches from 350 mm to 2800 mm in the automatic mode.
This machine model is equipped with a mechanical holder for the encoder that measures the distance.
The machine is equipped with a laser device to ensure symmetrical arches.

Profiles bending possibility

Maximum profile height	10 – 120 mm
Maximum profile width	10 – 60 mm
Maximum profile (height + width) – Axis	100 x 40 mm
Maximum profile (width + height) – Axis	60 x 40 mm
Maximum profile length	Unlimited
Profile wall thickness	1 – 3 mm

Arches bending possibility

Automatic bending arches with one radius
Automatic bending arches with two radii
Automatic bending arches with three radii
Manual bending arches

TECHNICAL SPECIFICATIONS

Name	TIM-MACHINE
Model	MODEL XS
Type of machine	CNC 3D BHP
Electric motor for X axis – back axle – 1 pcs	5,5 KW
X axis – two back axles – max torque	1290 Nm
Electric motor for X axis – middle axle – 1 pcs	2,2 KW
X axis – middle axle – max torque per middle axle)	1163 Nm
Electric motor for Y axis – threaded spindle – 1 pcs	2.2 kW
Y axis – max torque per threaded spindle	500 Nm
Number of propulsive axles	3
Dimensions	1700 x 2780 x 3650mm
Weight	1000 kg
Axle rotation speed	0-20 rpm
Axle diameter	70 mm
Axle height	200 mm
Voltage	3x380V~50 Hz
Warranty	1 year
Country of origin	Serbia
