TIM-MACHINE
MODEL S
CNC 3D

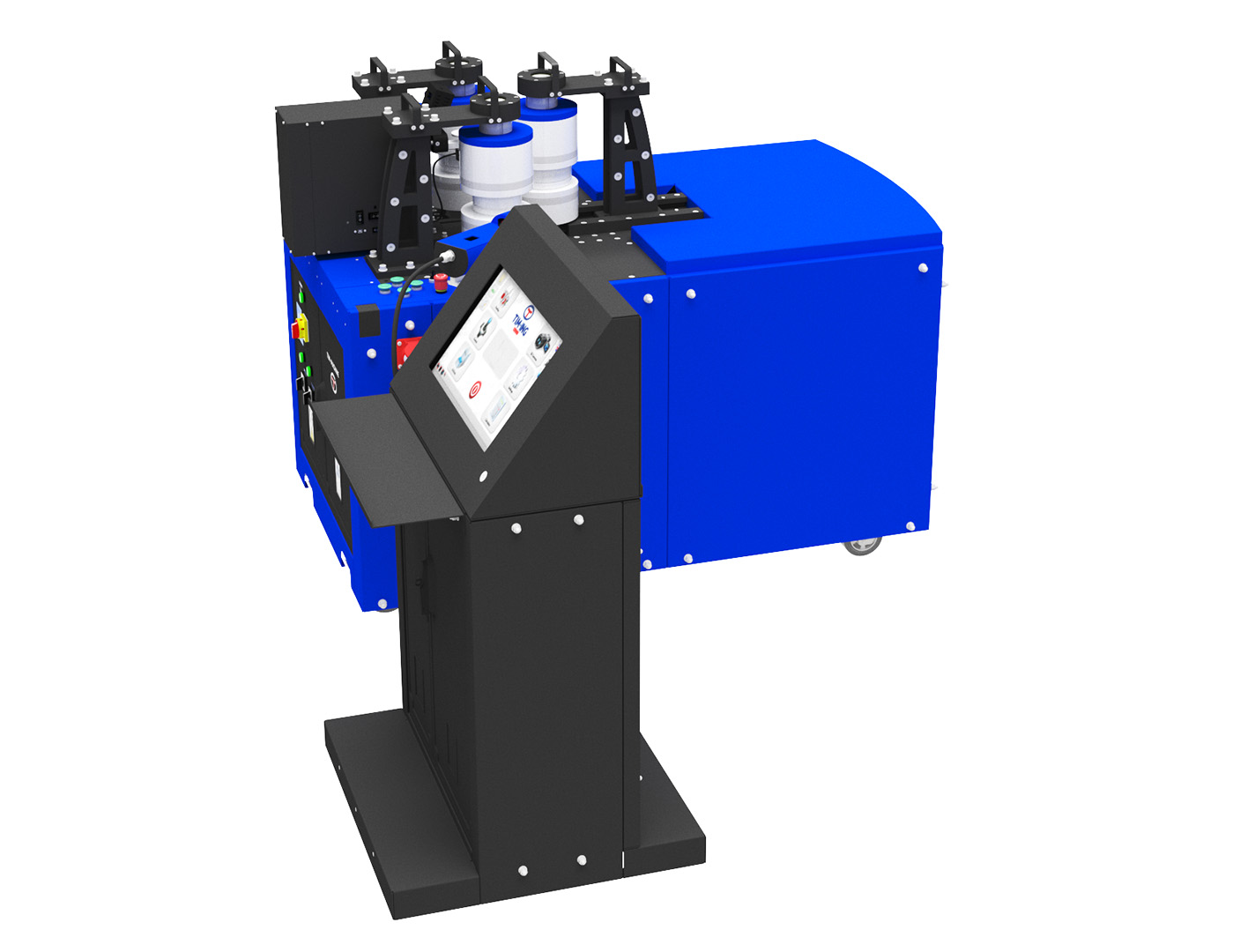

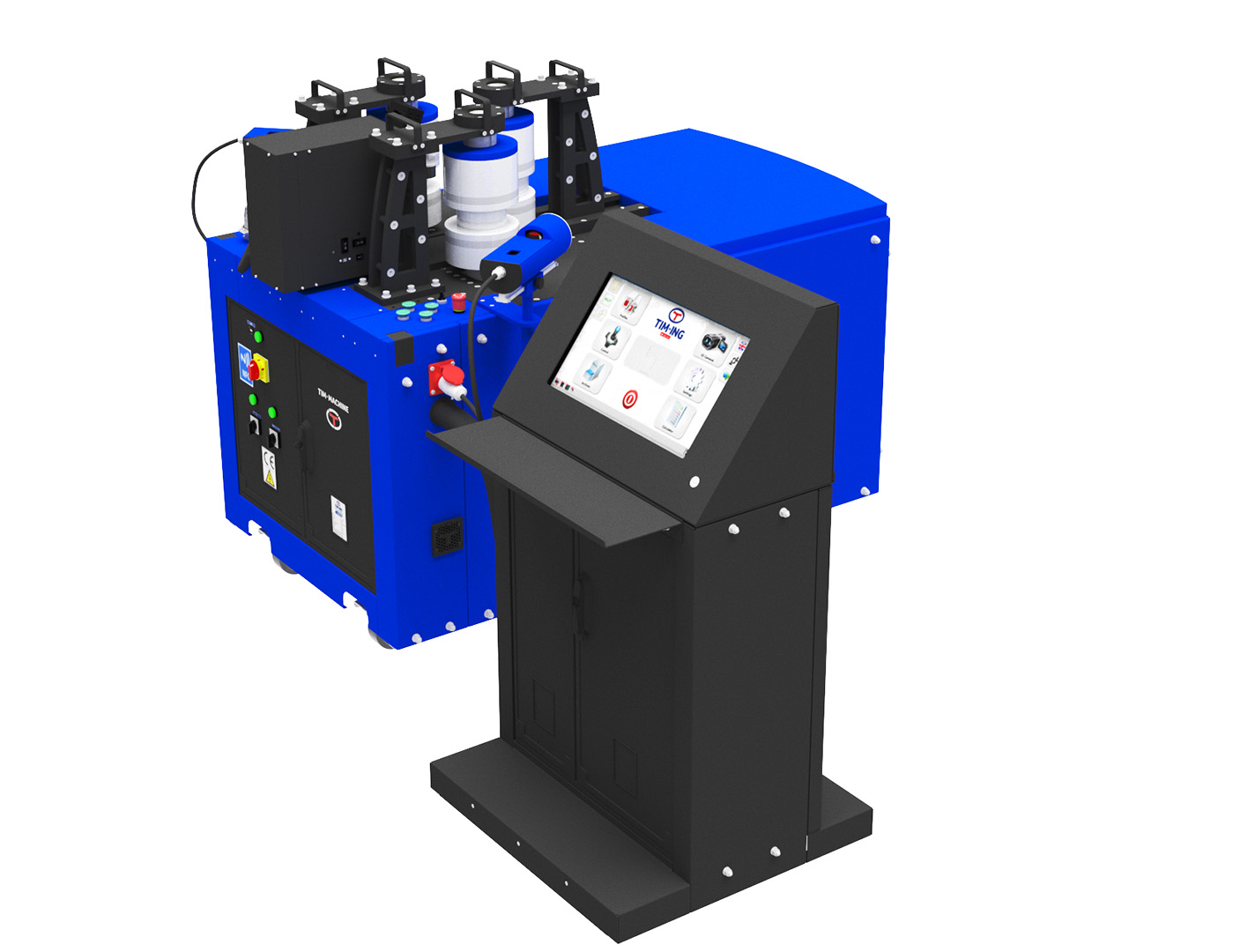

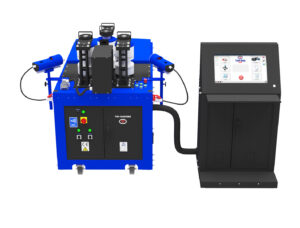

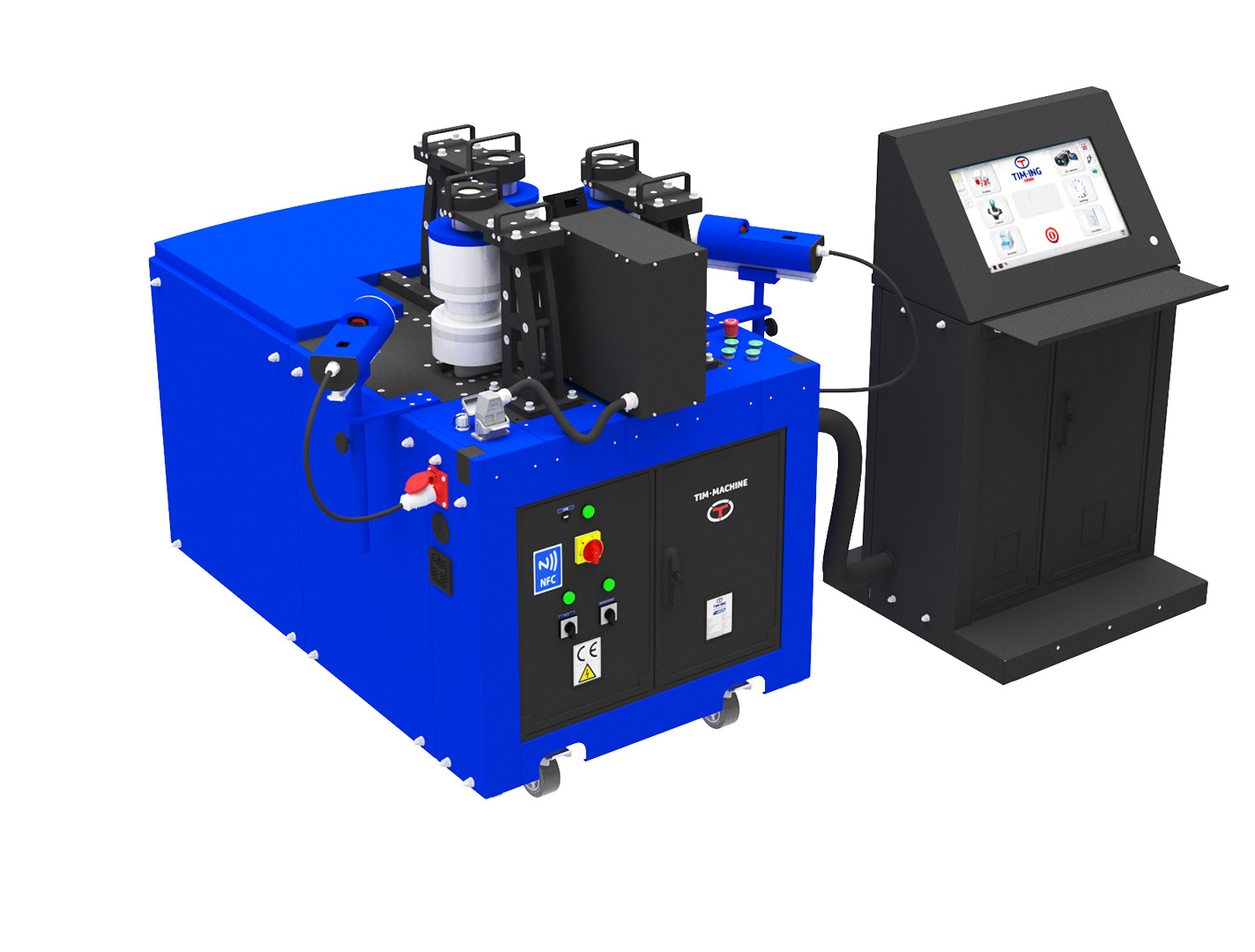

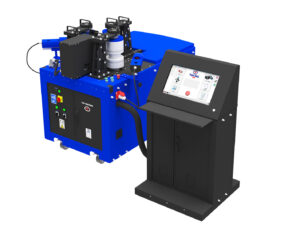

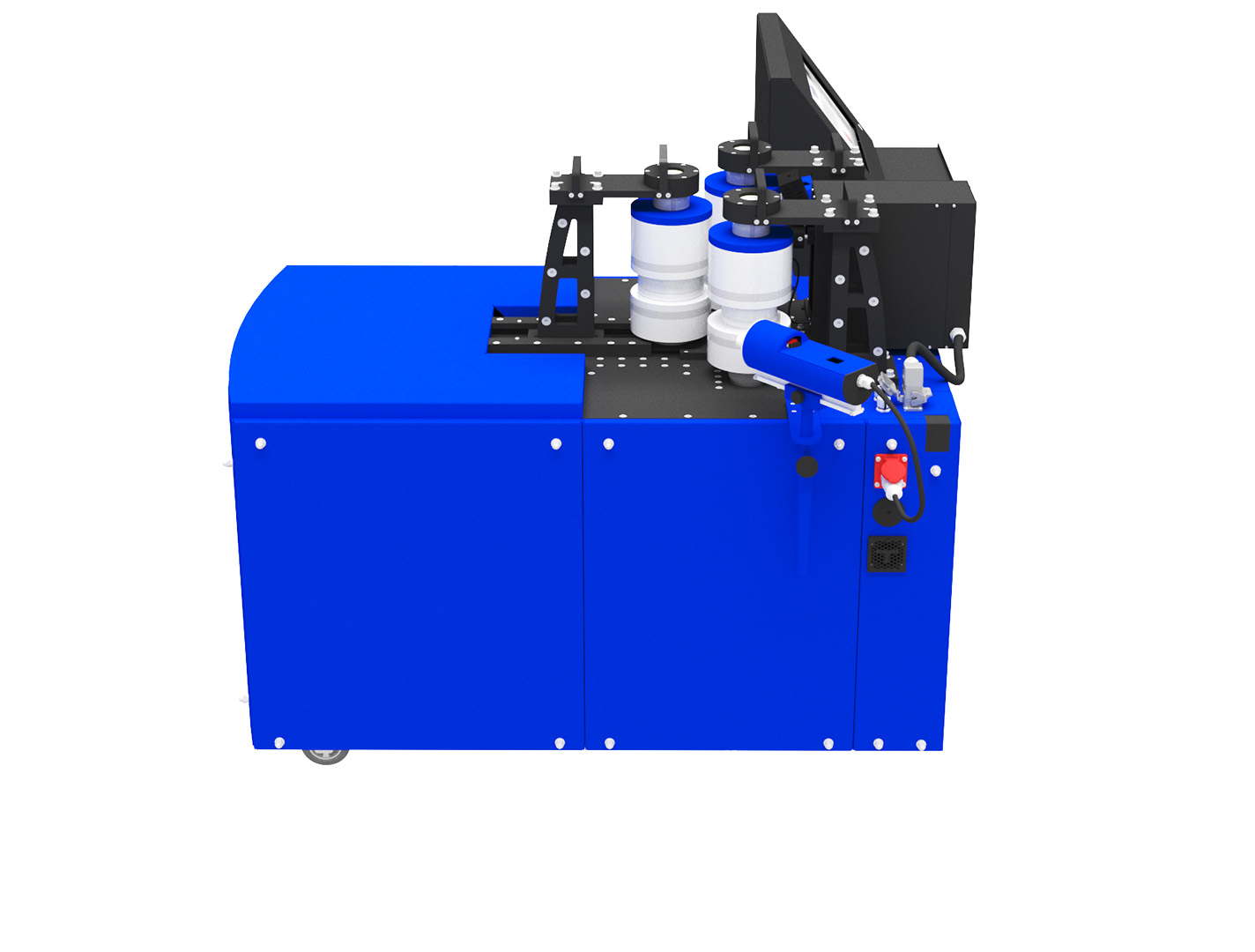

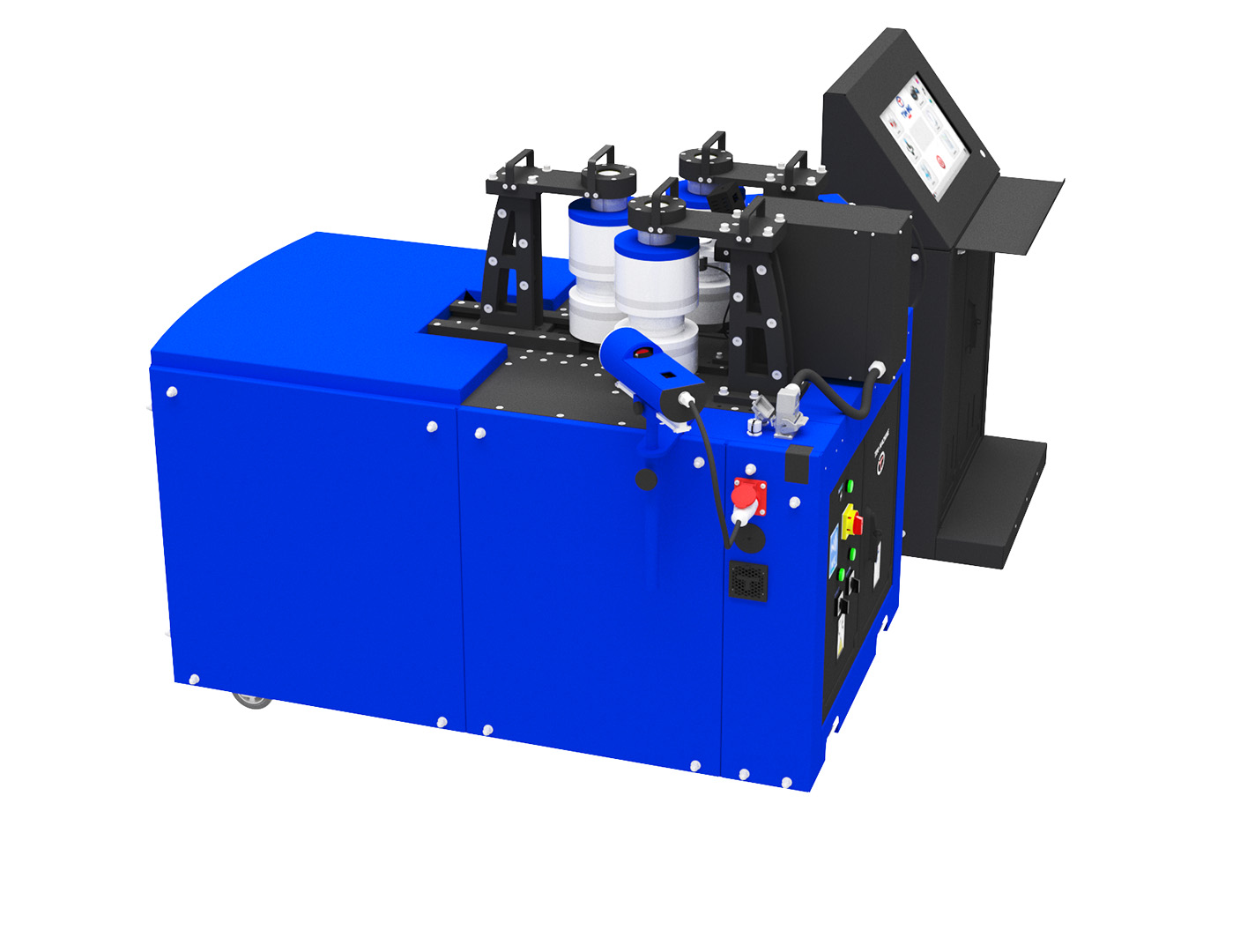

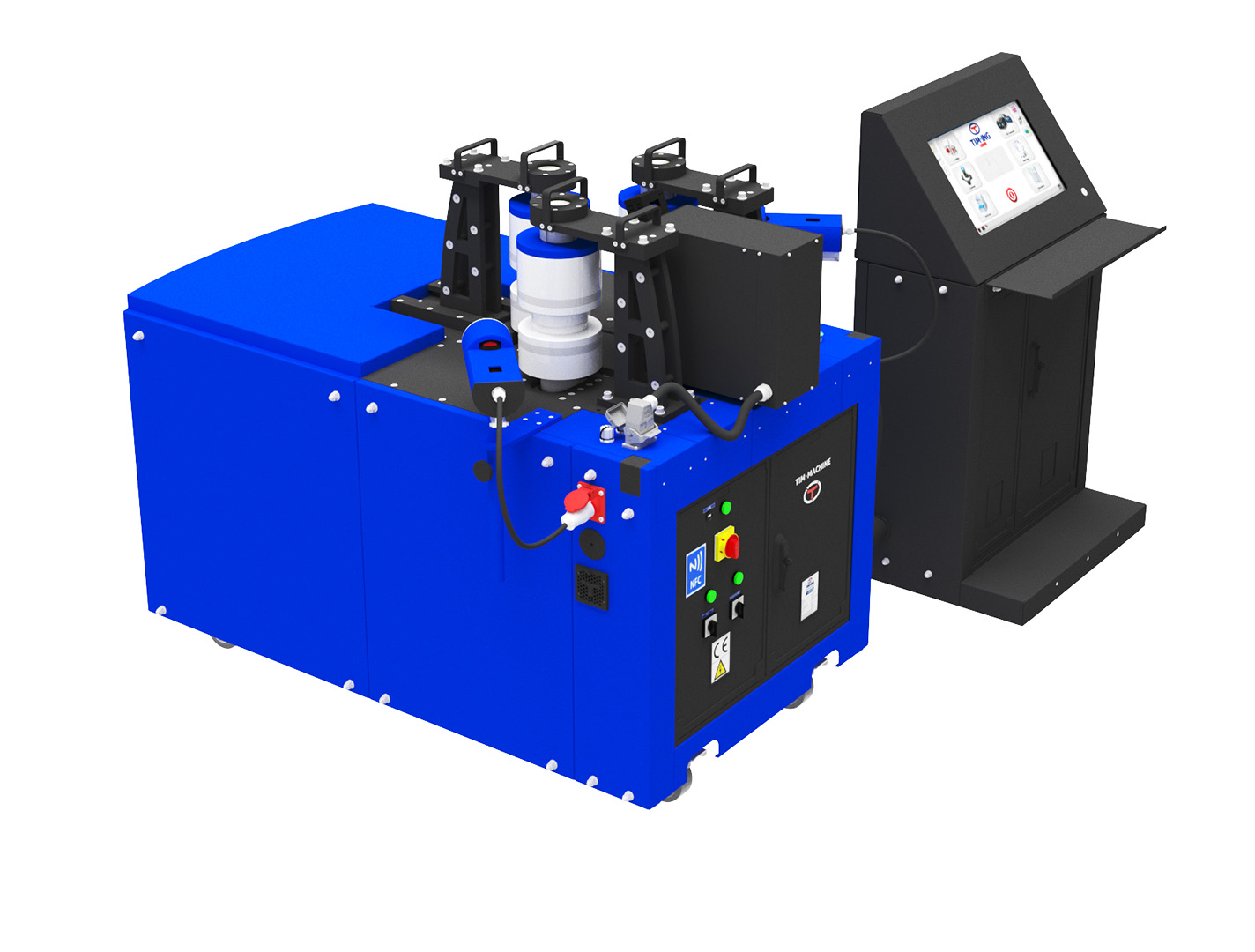

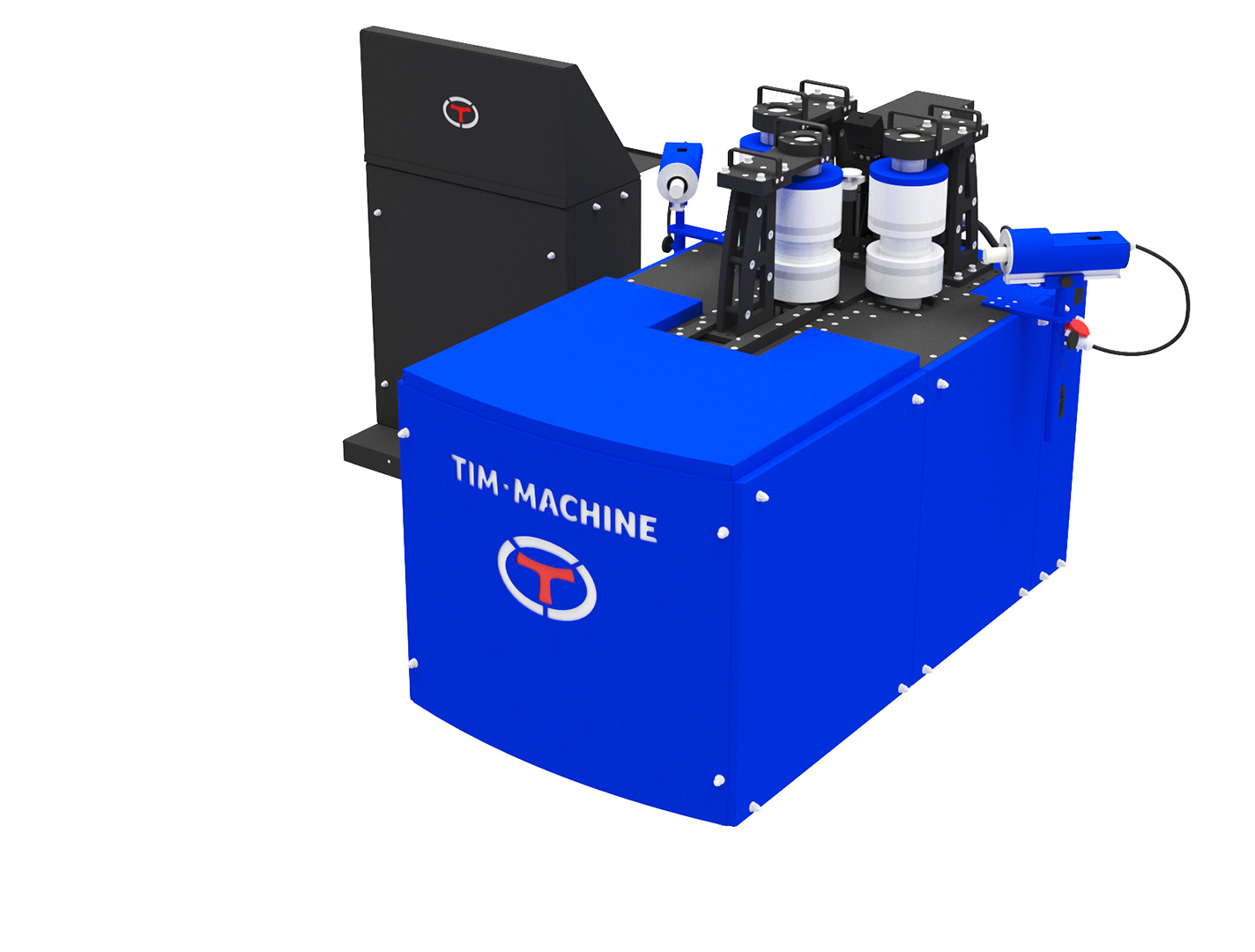

Profile bending machine
MODEL S
CNC F
Full equipment
CNC system
high precision
- This bending machine is equipped with a high precision CNC system.
- The machine can automatically bend arcs with one radius in one process.
- This machine can bend arcs from 350 mm to 1500 mm in automatic CNC mode.
- It can also bend radii greater than 1500 mm in CNC mode, automatically.
- This machine model is equipped with an automatic platform that automatically adjusts the height of the position of the encoder and the laser device.
- The machine is equipped with a laser device that ensures the symmetry of the left and right sides of the arc.

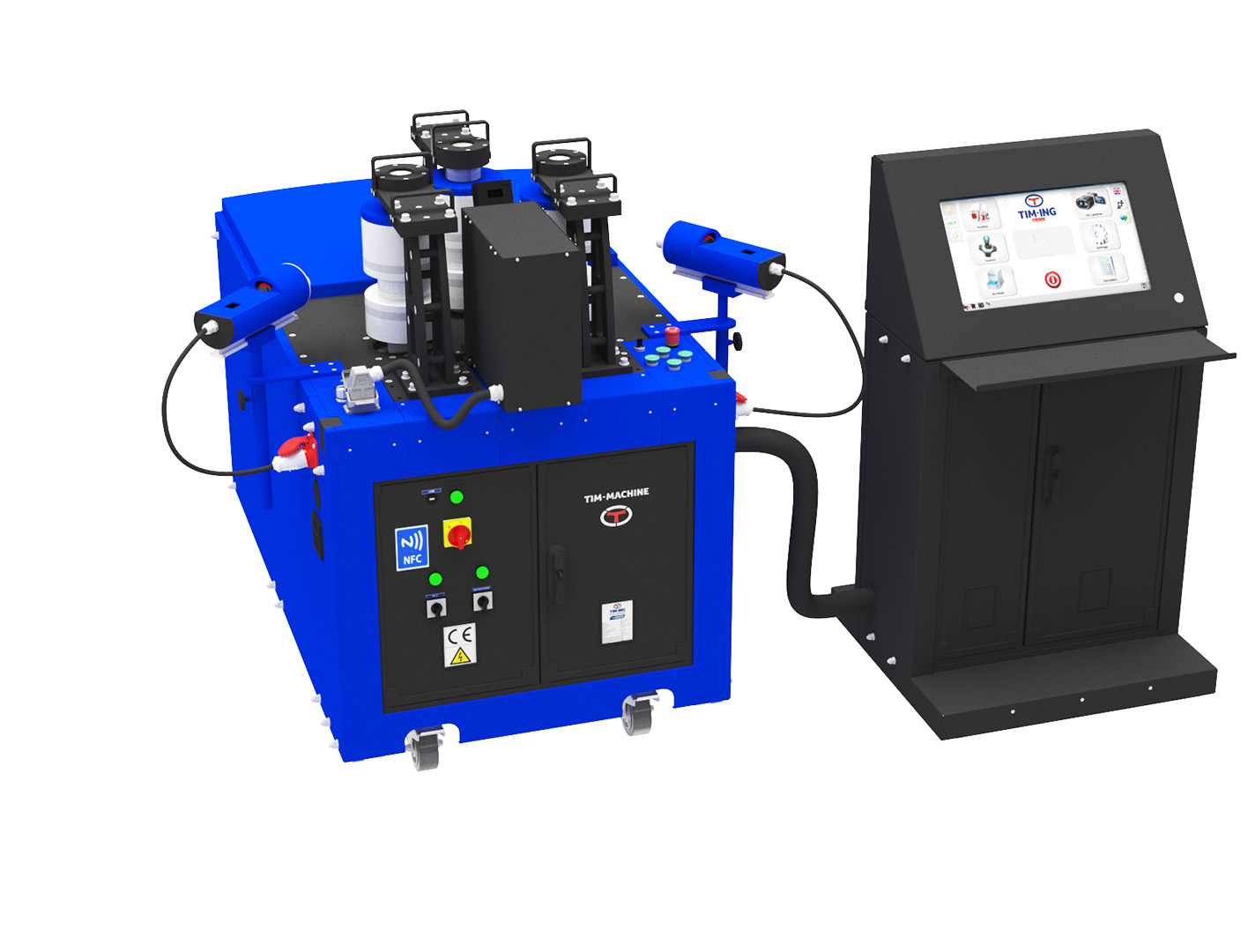

- The machine is equipped with an NFC device that provides a secure way of signing in and out of the program.
- The NFC device enables data security on the machine.
- The machine is equipped with a remote control, which is very useful for longer profiles, so that the operator can very easily insert and remove the profiles from the machine.
Profiles bending possibility
| Maximum profile height | 10 – 240 mm |
|---|---|
| Maximum profile width | 10 – 100 mm |
| Maximum profile (height + width) – Axis | 240 x 40 mm |
| Maximum profile (width + height) – Axis | 80 x 40 mm |
| Maximum profile length | Unlimited |
| Profile wall thickness | 1 – 4 mm |
Arches bending possibility
| Automatic bending arches with one radius | |
|---|---|
| Manual bending arches |
TECHNICAL SPECIFICATIONS
| Name | TIM-MACHINE |
|---|---|
| Model | MODEL S |
| Type of machine | CNC F |
| Electric motor for X axis – back axle – 2 pcs | 3 kW + 3 kW |
| X axis – two back axles – max torque | 1316 Nm |
| Electric motor for X axis – middle axle – 1 pcs | 2,2 KW |
| X axis – middle axle – max torque per middle axle) | 1163 Nm |
| Electric motor for Y axis – threaded spindle – 1 pcs | 2.2 kW |
| Y axis – max torque per threaded spindle | 500 Nm |
| Number of propulsive axles | 3 |
| Dimensions | 1800 x 1700 x 3650mm |
| Weight | 1520 kg |
| Axle rotation speed | 0-16 rpm |
| Axle diameter | 70 mm |
| Axle height | 300 mm |
| Voltage | 3x380V~50 Hz |
| Warranty | 1 year |
| Country of origin | Serbia |
