TIM-MACHINE
MODEL S

CNC 3D

Profile bending machine

MODEL S

CNC 3D FP

Full equipment
One central high
precision 3D camera

  • This bending machine is equipped with only one central high precision 3D camera.
  • The machine can bend arches with one radius automatically in one process.
  • The machine can bend arches from 350 mm to 1500 mm in the automatic mode.
  • Larger radii than 1500 mm can be bent in the NC mode – semi-automatically.
  • This machine model is equipped with an automatic platform that automatically adjusts the encoder.
  • The machine is equipped with a laser device to ensure symmetrical arches.
  • The machine is equipped with a NFC device that offers a secure way to sign in and sign out in the software.
  • The NFC device enables data security on the machine.
  • The machine is equipped with a remote controller which is very useful for longer profiles so that the single operator can insert into and take out profiles from the machine more easily.

Profiles bending possibility

configure your machine and ask for the best price
Maximum profile height 10 – 240 mm
Maximum profile width 10 – 100 mm
Maximum profile (height + width) – Axis 240 x 40 mm
Maximum profile (width + height) – Axis 80 x 40 mm
Maximum profile length Unlimited
Profile wall thickness 1 – 4 mm

Arches bending possibility

Automatic bending arches with one radius
Automatic bending arches with two radii
Automatic bending arches with three radii
Manual bending arches

TECHNICAL SPECIFICATIONS

NameTIM-MACHINE
ModelMODEL S
Type of machineCNC 3D FP
Electric motor for X axis – back axle – 2 pcs3 kW + 3 kW
X axis – two back axles – max torque1316 Nm
Electric motor for X axis – middle axle – 1 pcs2,2 KW
X axis – middle axle – max torque per middle axle)1163 Nm
Electric motor for Y axis – threaded spindle – 1 pcs2.2 kW
Y axis – max torque per threaded spindle500 Nm
Number of propulsive axles3
Dimensions1800 x 1700 x 3650mm
Weight1520 kg
Axle rotation speed0-16 rpm
Axle diameter70 mm
Axle height300 mm
Voltage3x380V~50 Hz
Warranty1 year
Country of originSerbia

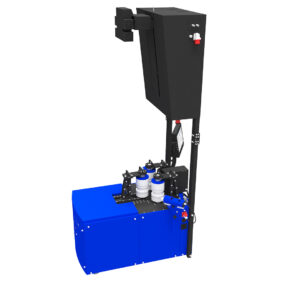

MODEL-S-CNC-3D-FP-18

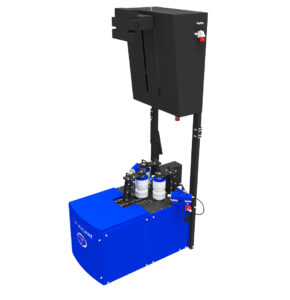

MODEL-S-CNC-3D-FP-19

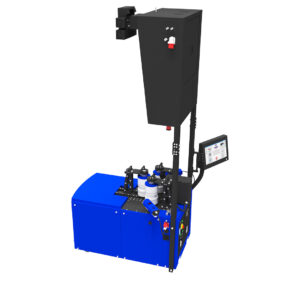

MODEL-S-CNC-3D-FP-16

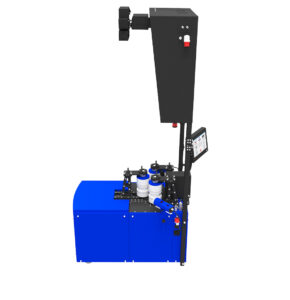

MODEL-S-CNC-3D-FP-17

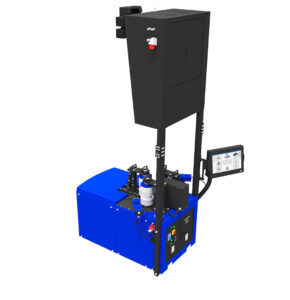

MODEL-S-CNC-3D-FP-15
MODEL-S-CNC-3D-FP-13

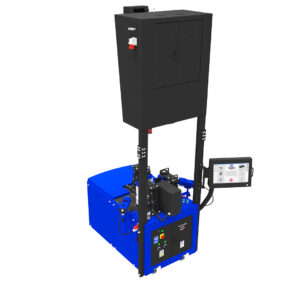

MODEL-S-CNC-3D-FP-14

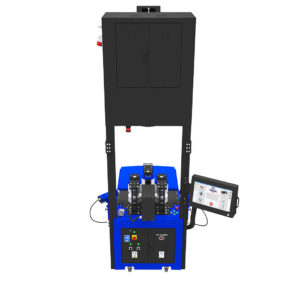

MODEL-S-CNC-3D-FP-12

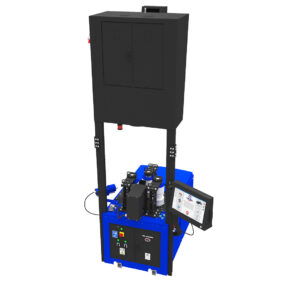

MODEL-S-CNC-3D-FP-11

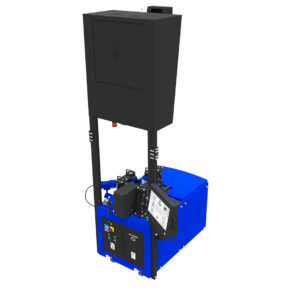

MODEL-S-CNC-3D-FP-10

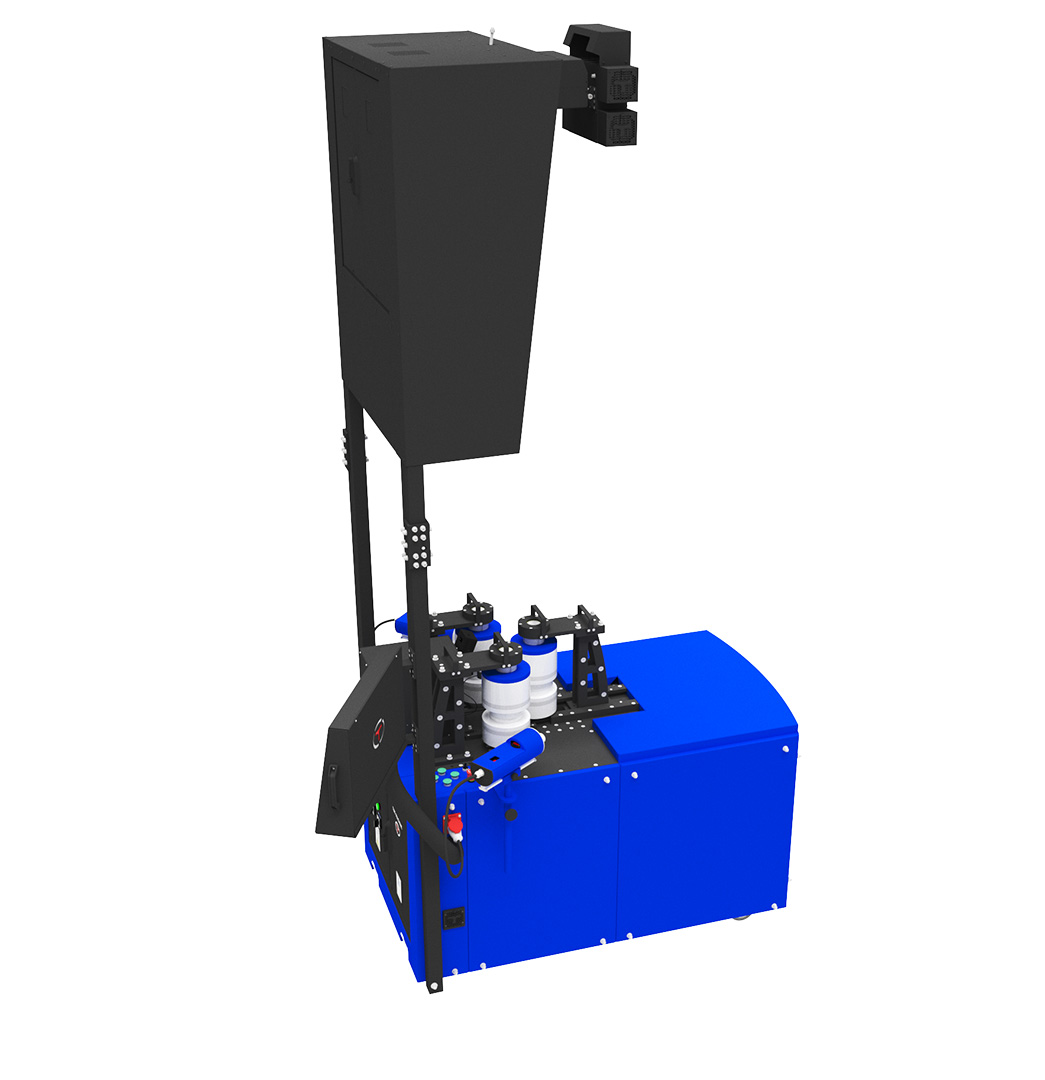

MODEL-S-CNC-3D-FP-8

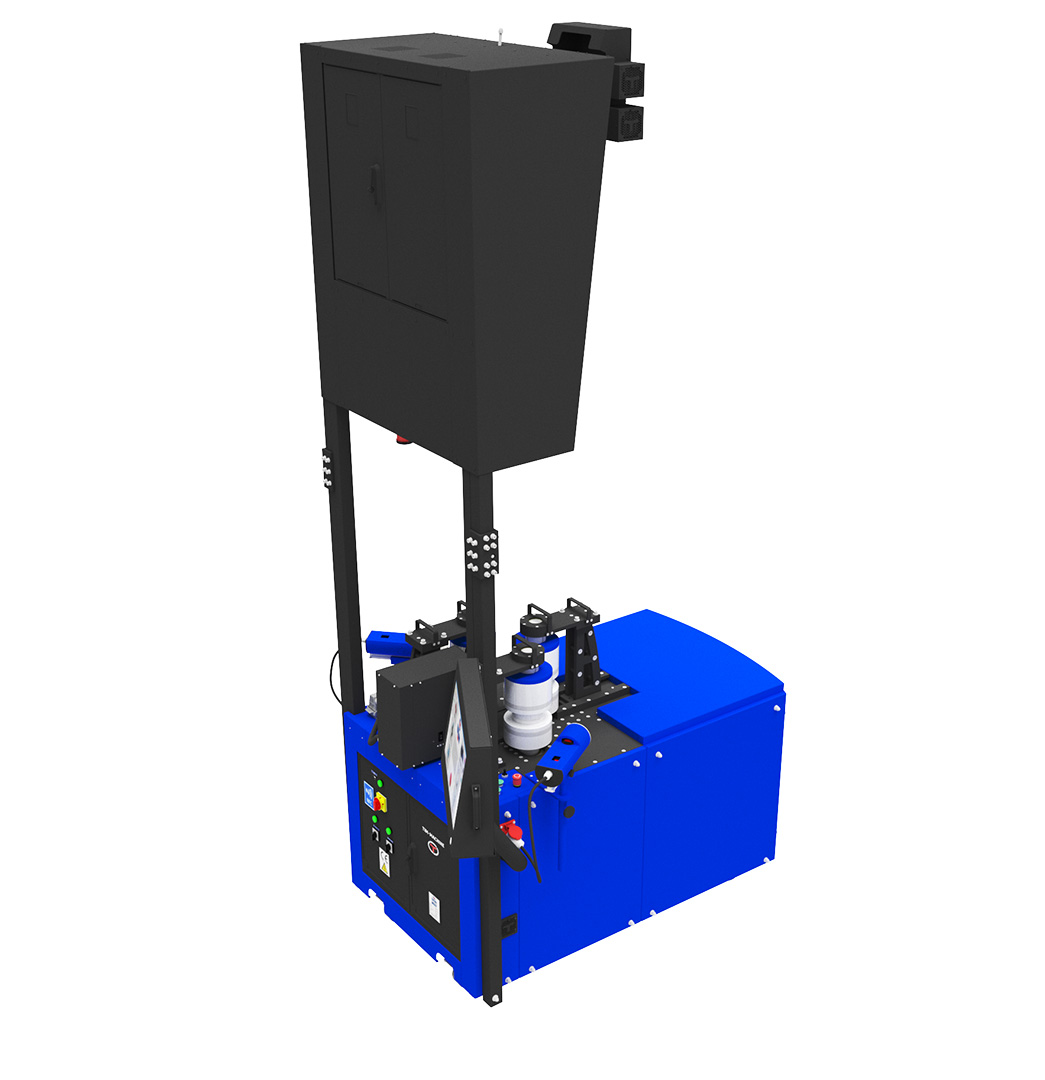

MODEL-S-CNC-3D-FP-9

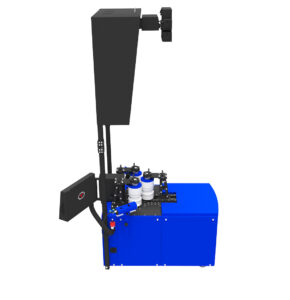

MODEL-S-CNC-3D-FP-7

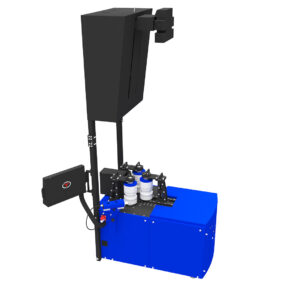

MODEL-S-CNC-3D-FP-6

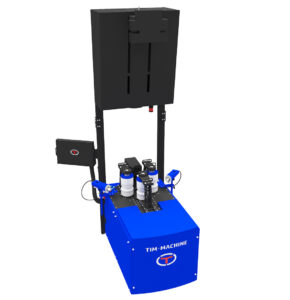

MODEL-S-CNC-3D-FP-3

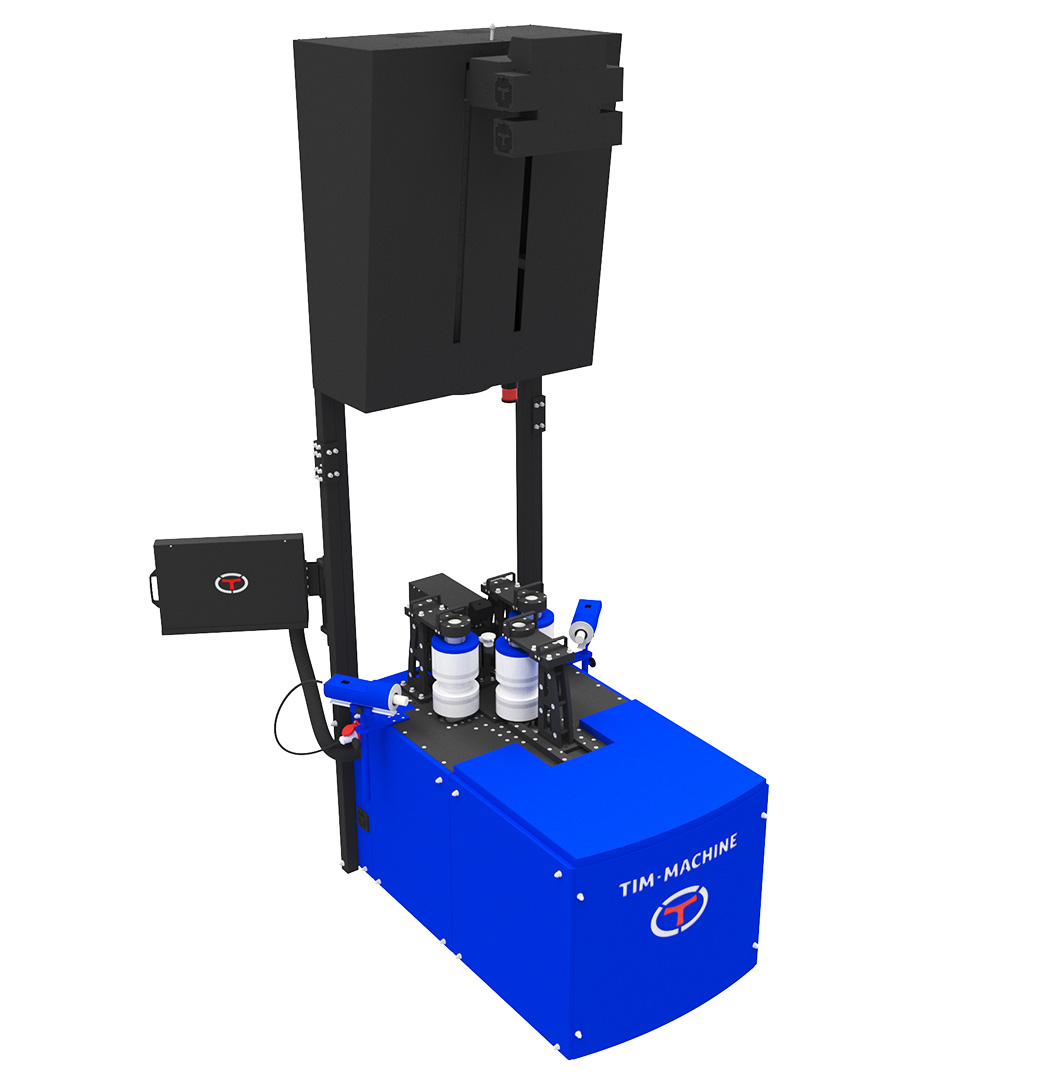

MODEL-S-CNC-3D-FP-4

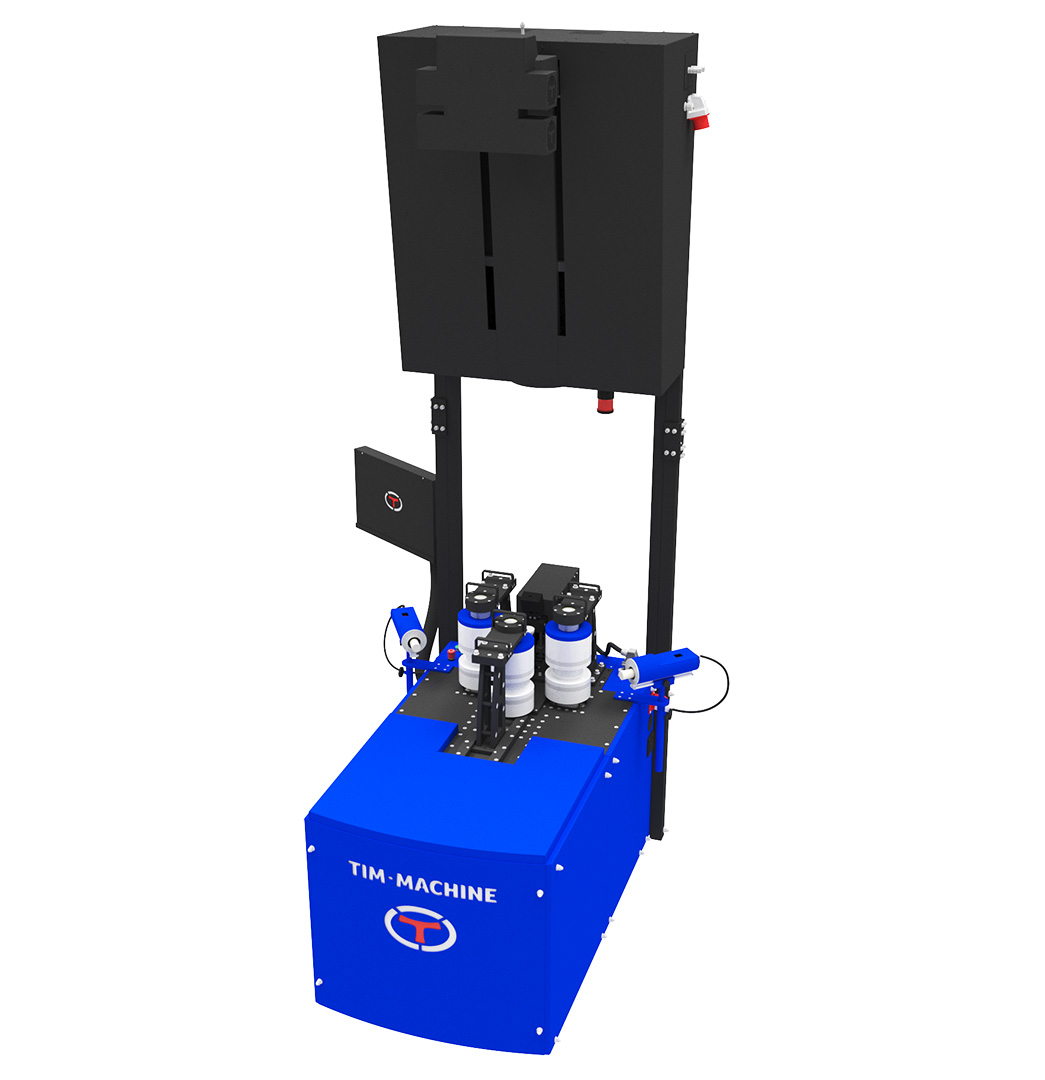

MODEL-S-CNC-3D-FP-1

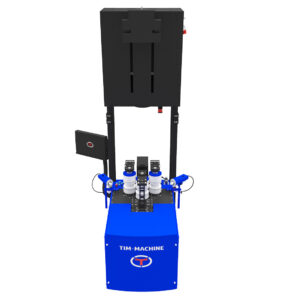

MODEL-S-CNC-3D-FP-2

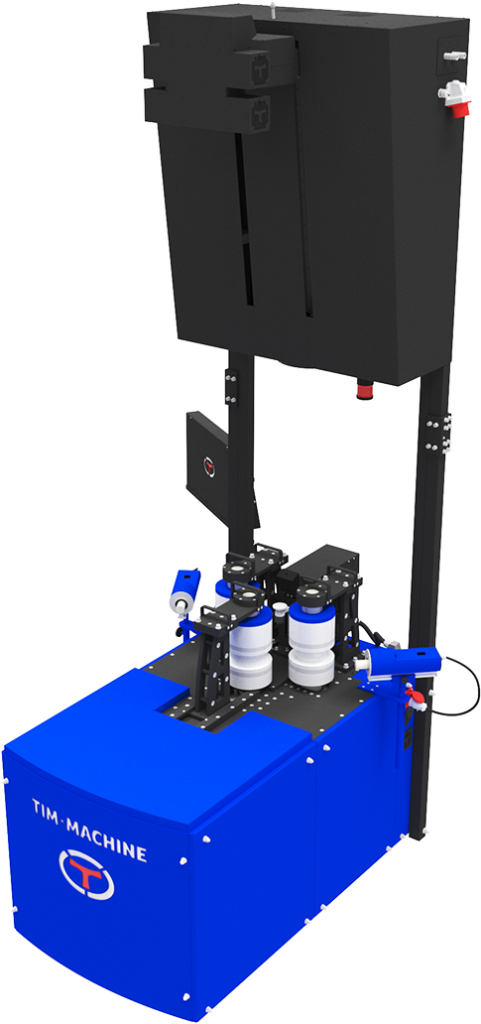

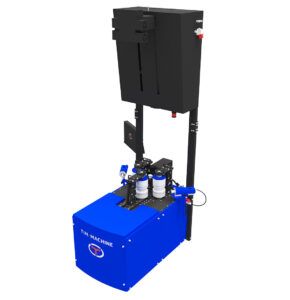

MODEL-S-CNC-3D-FP-0

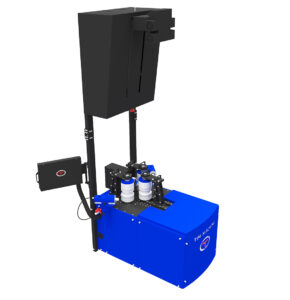

MODEL-S-CNC-3D-FP-5
