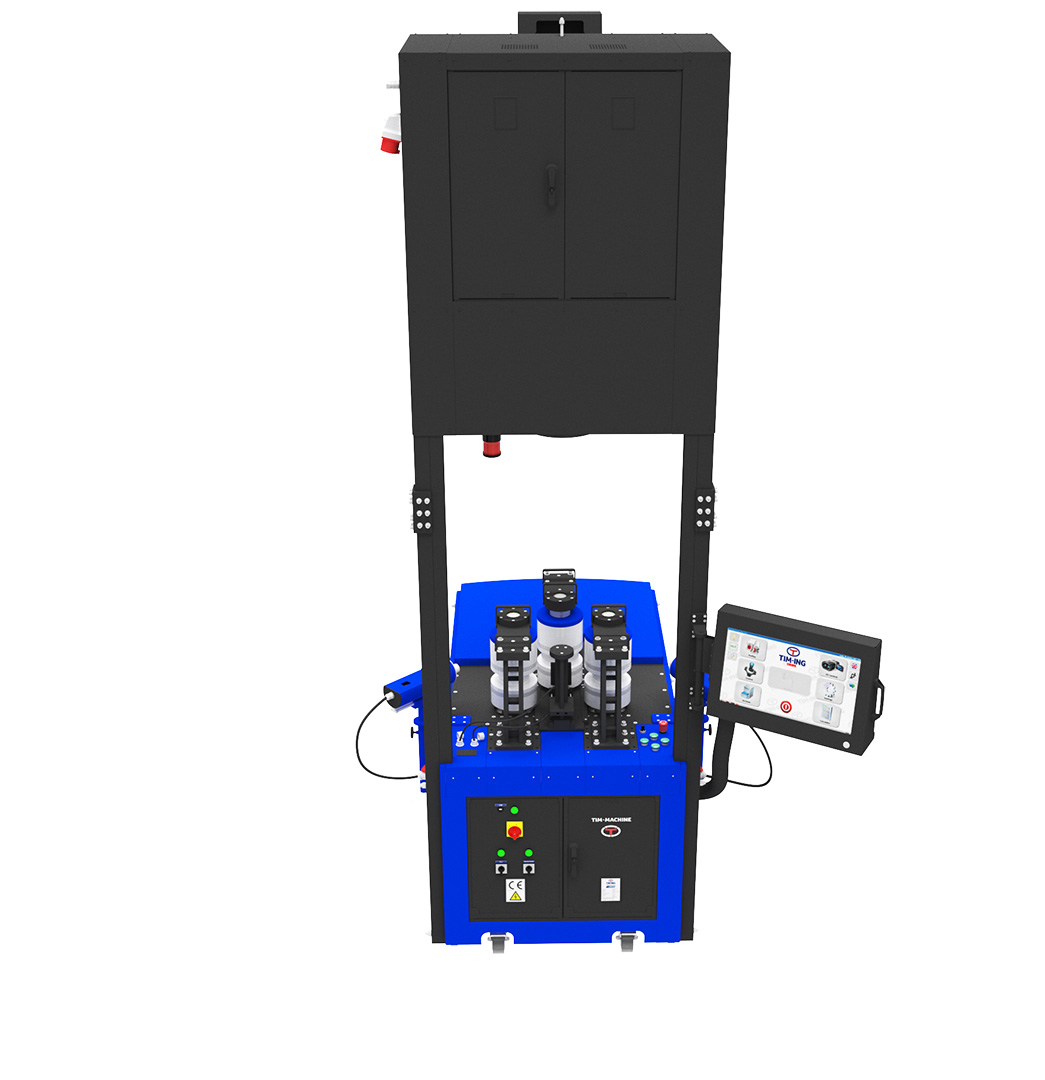

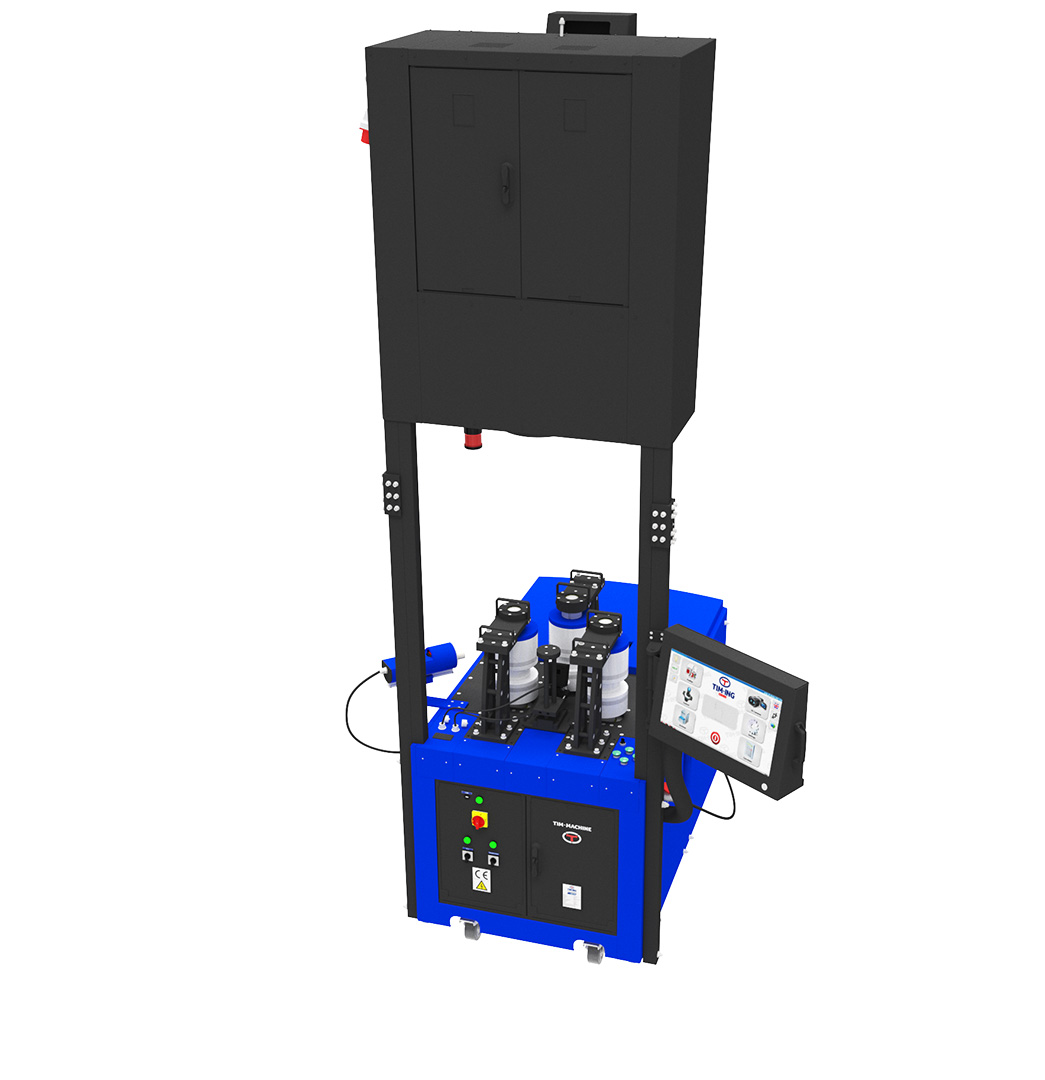

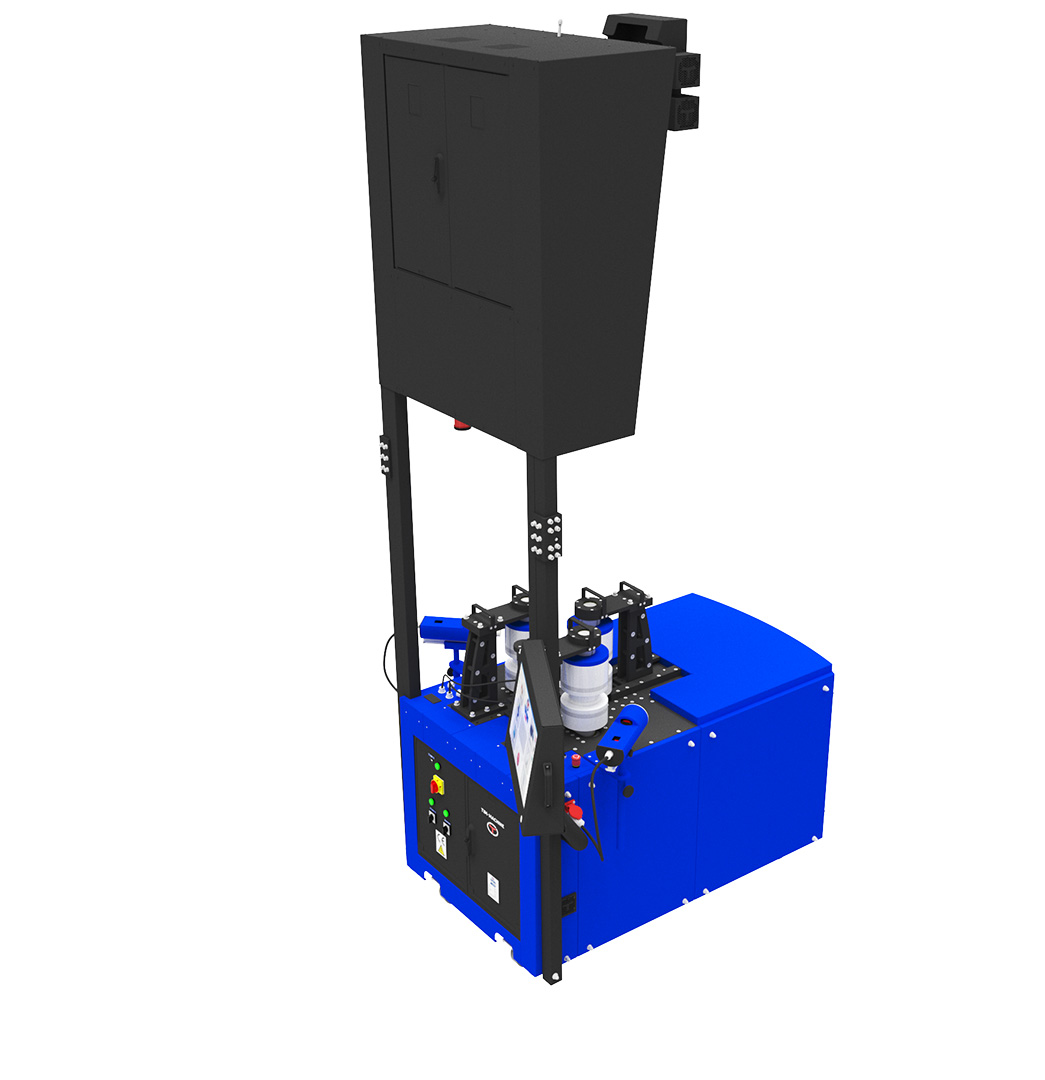

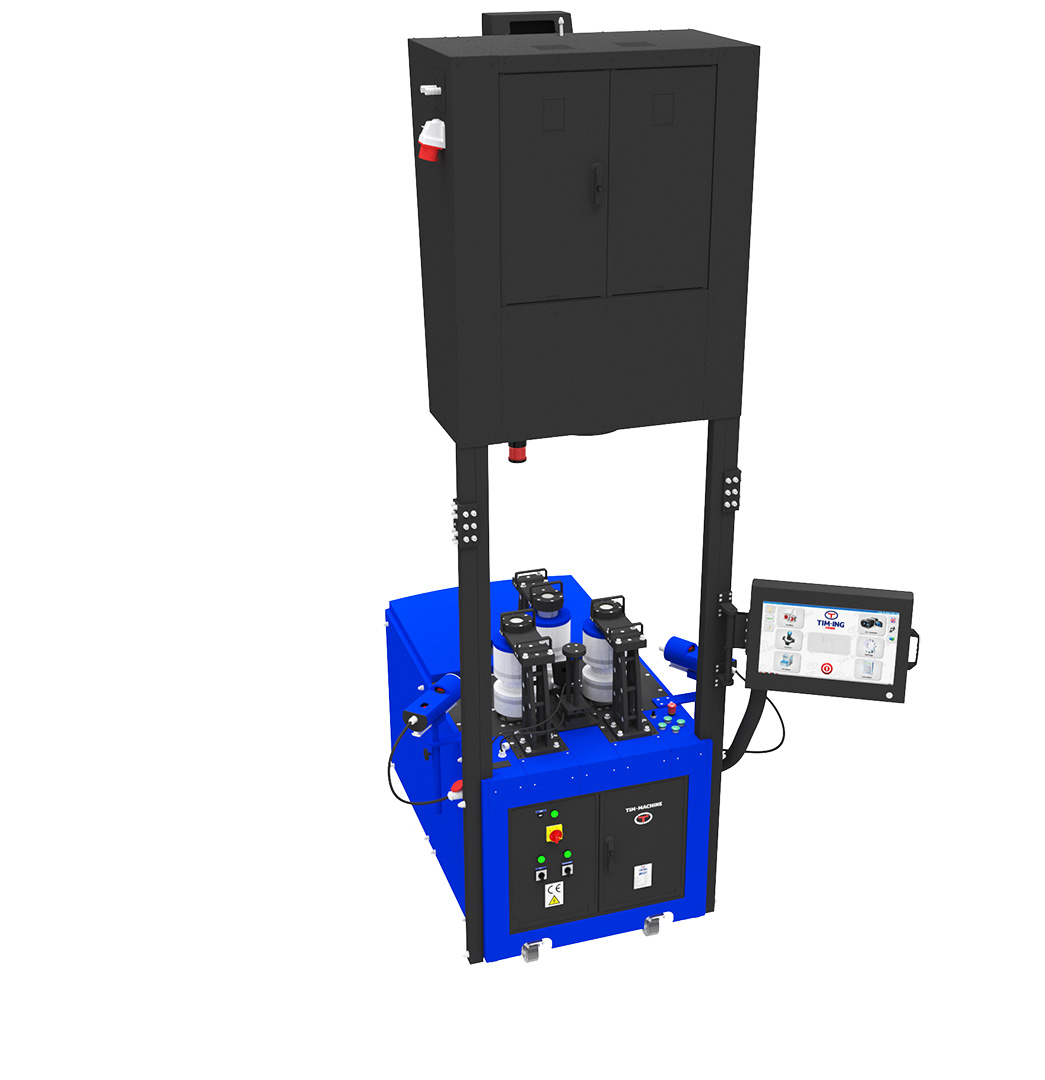

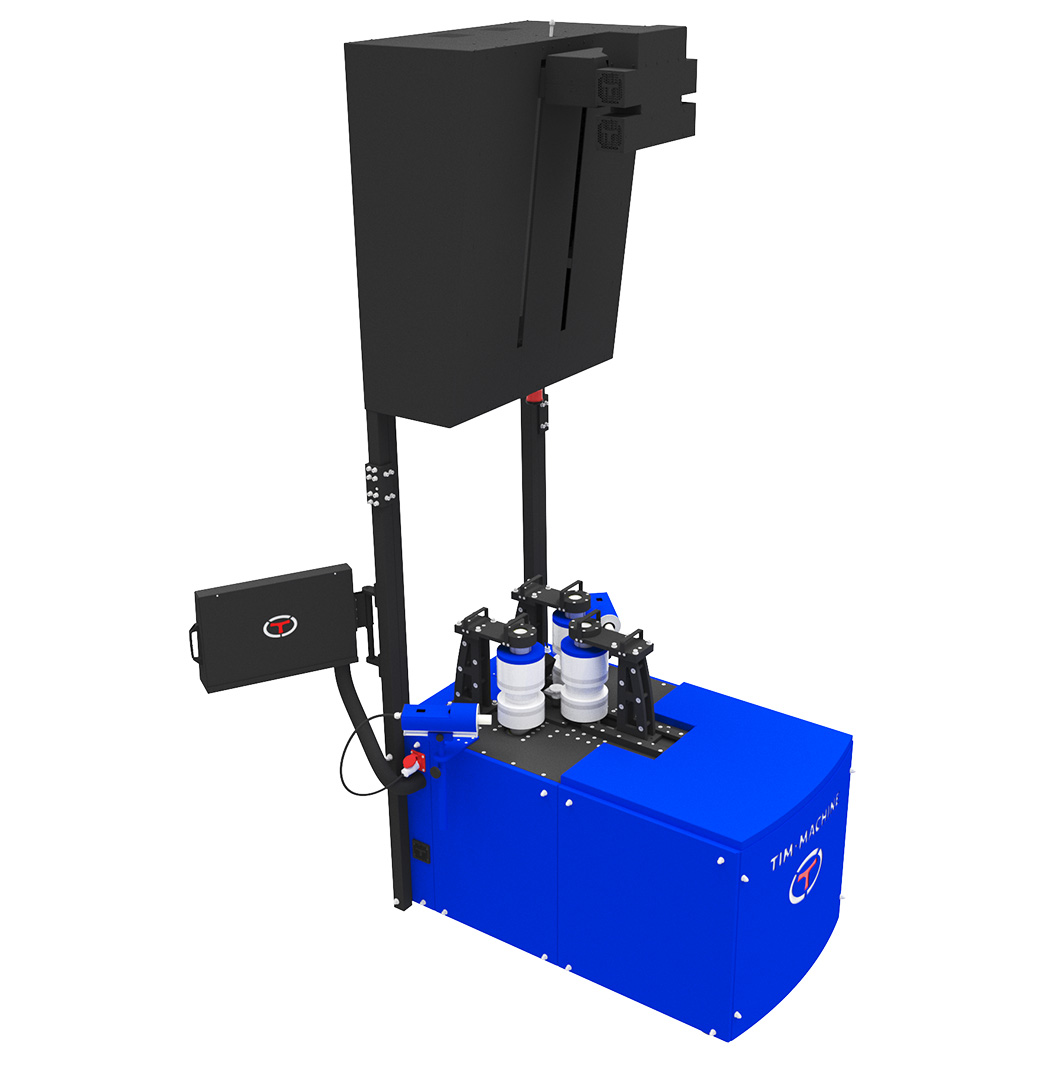

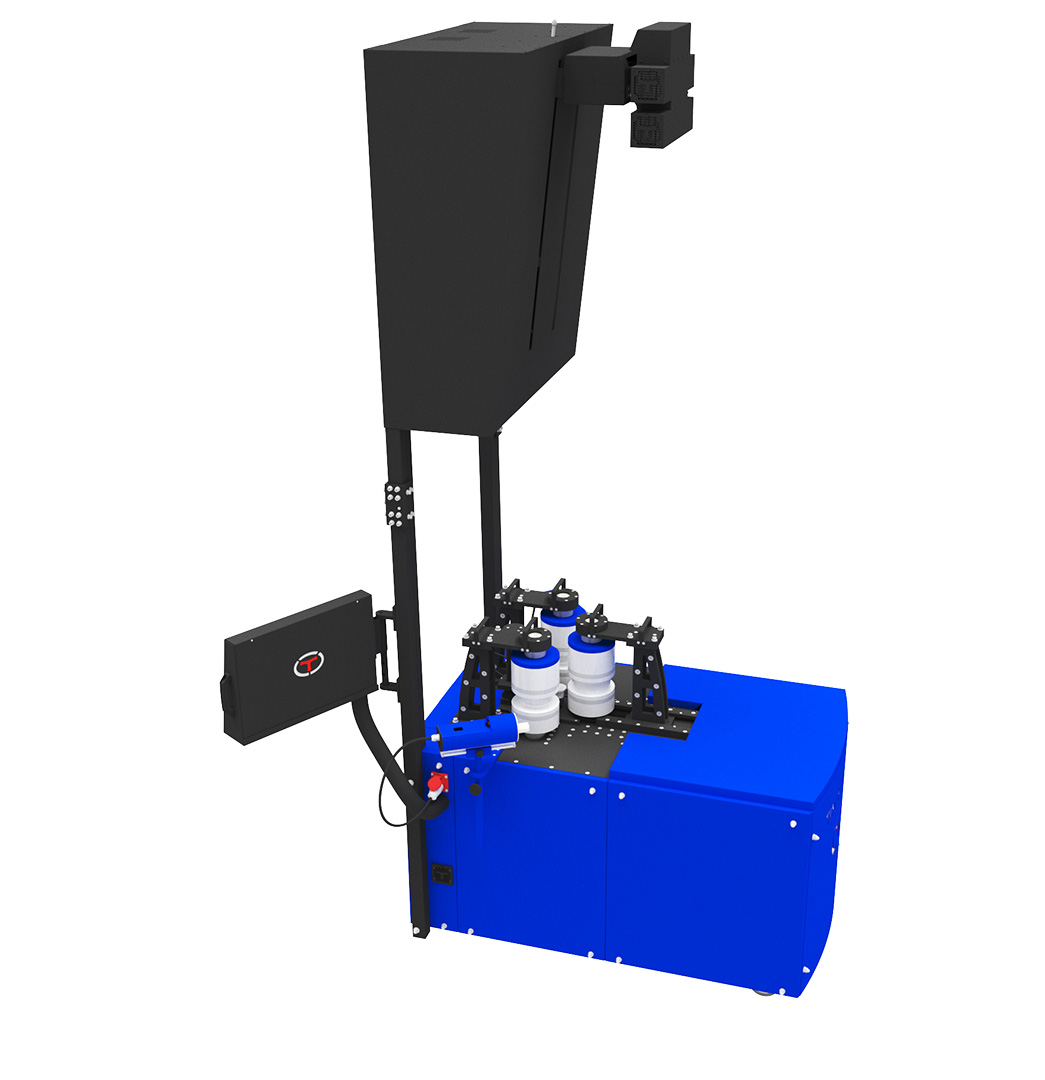

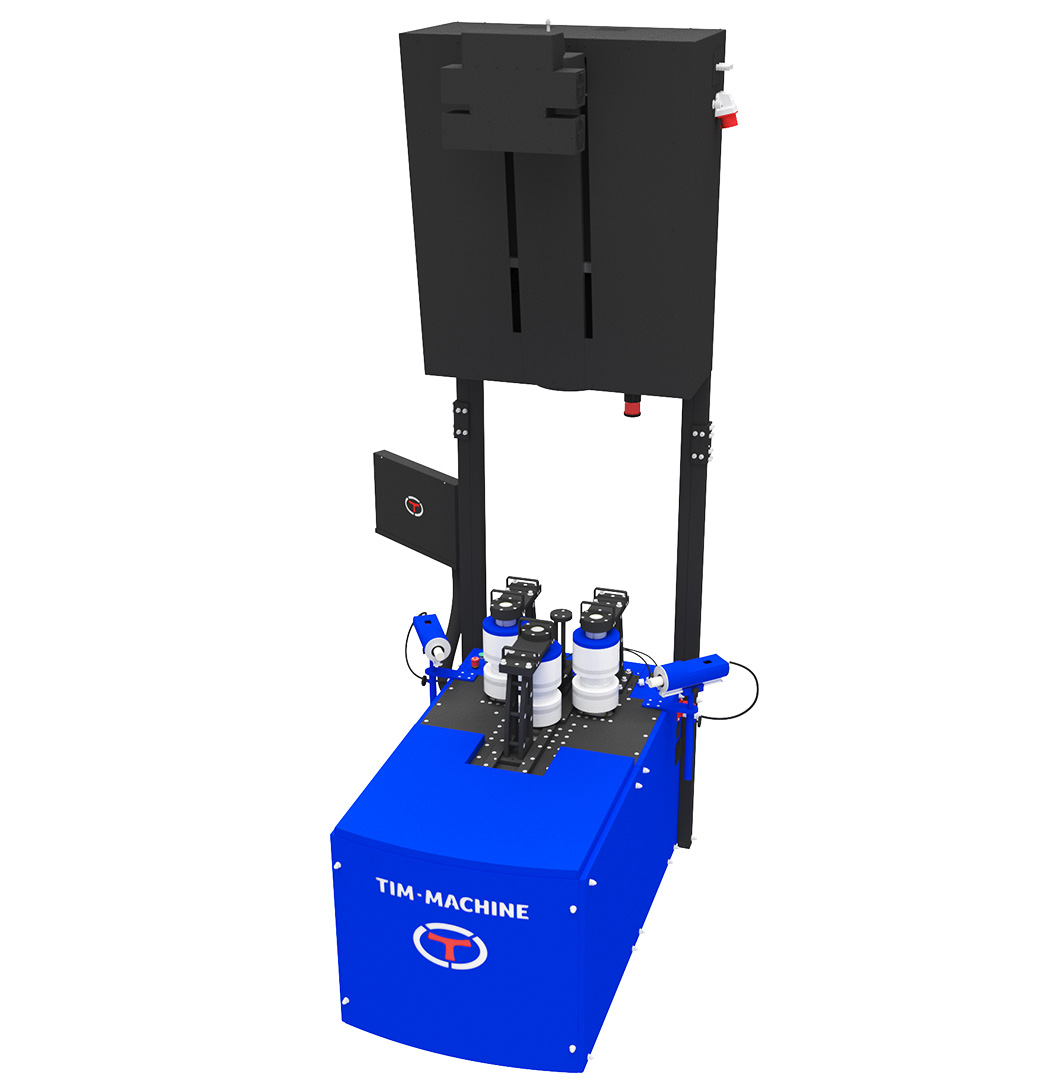

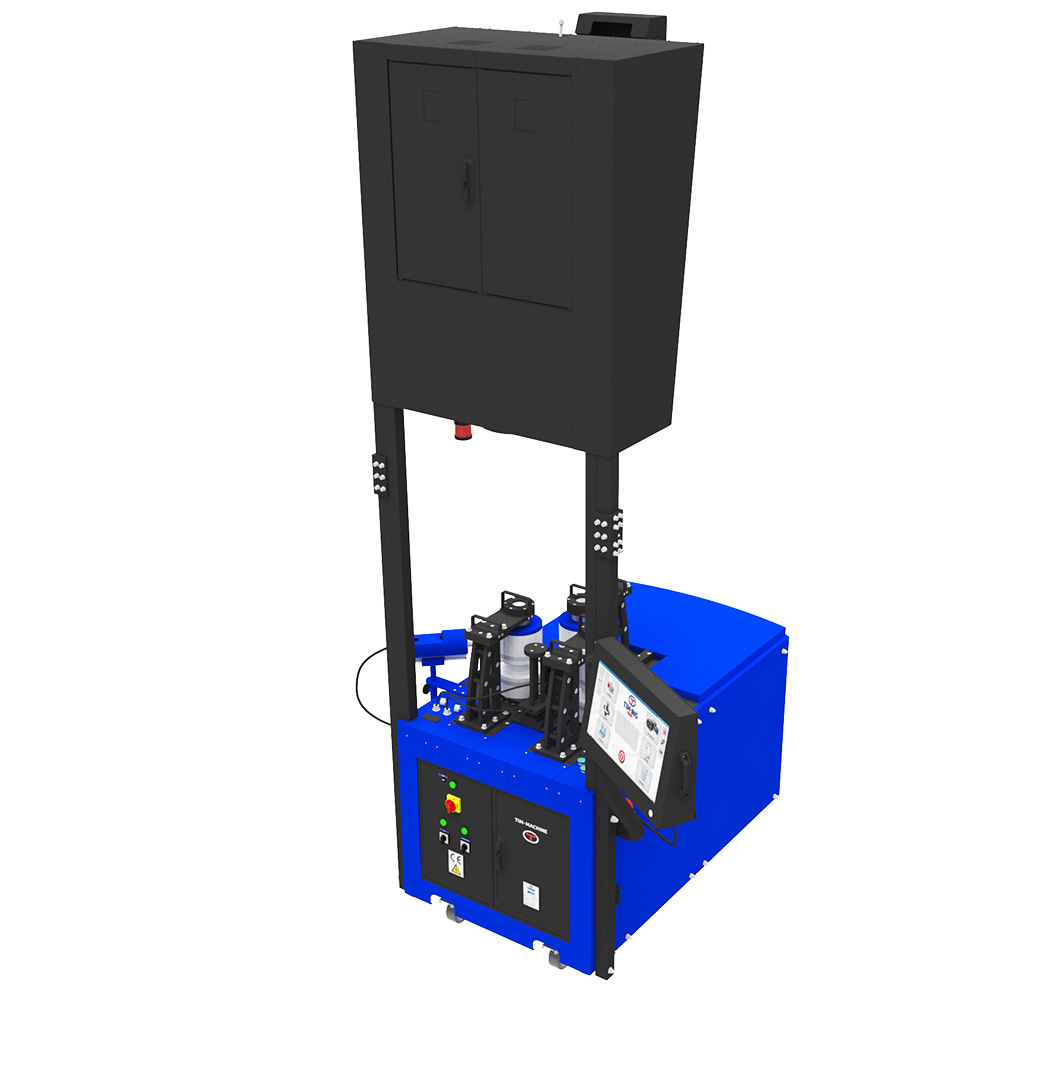

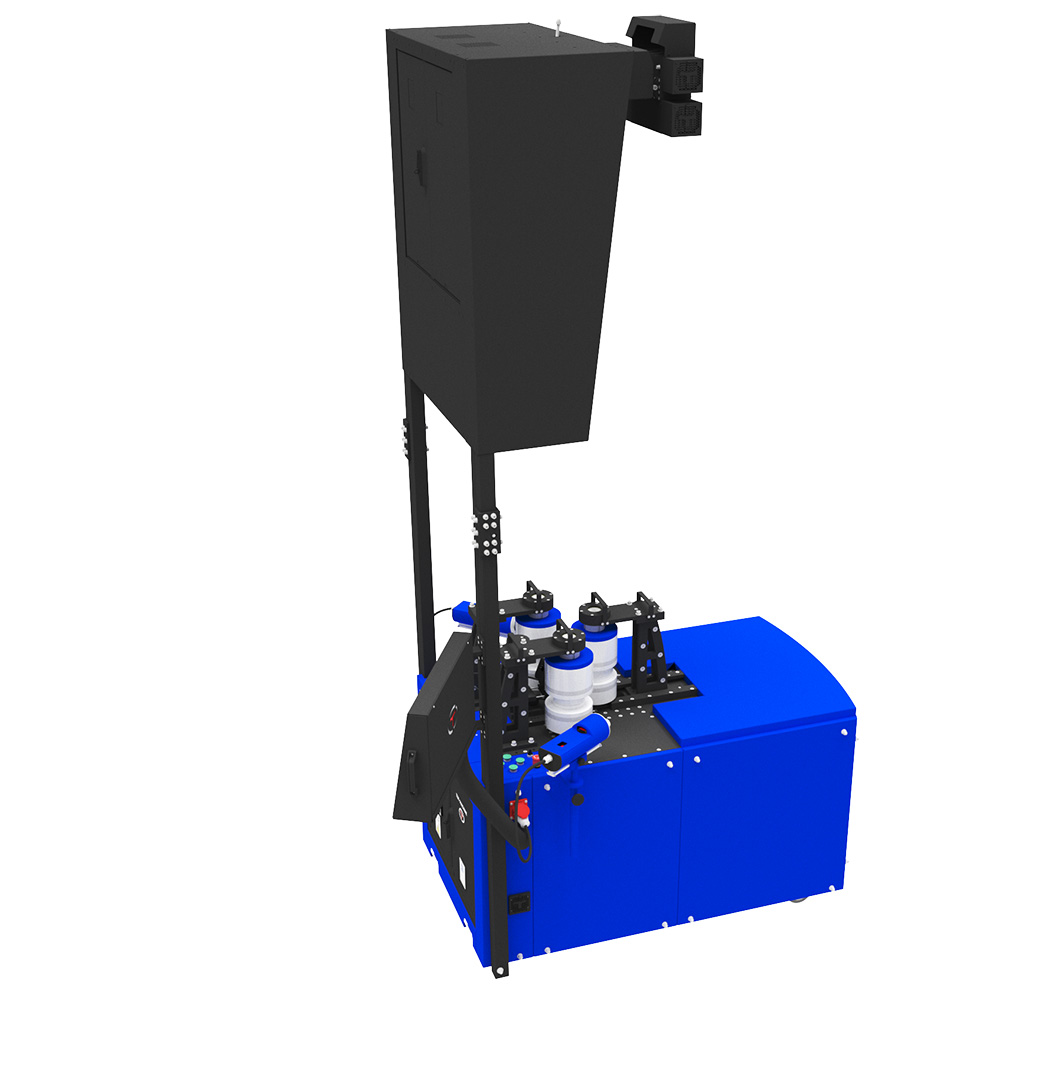

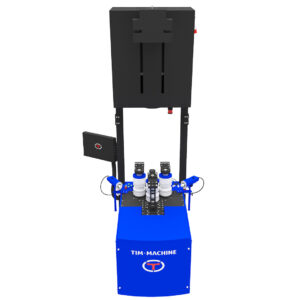

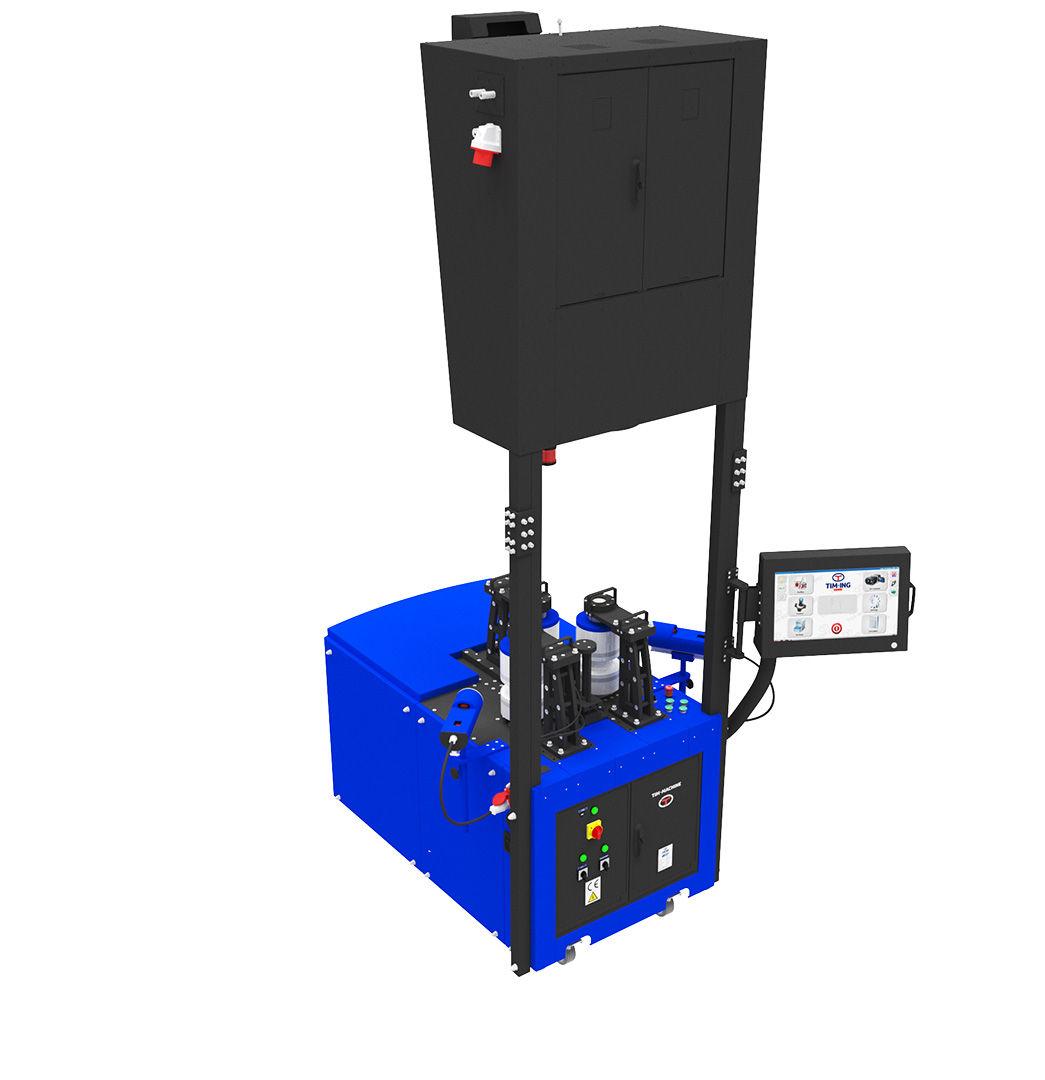

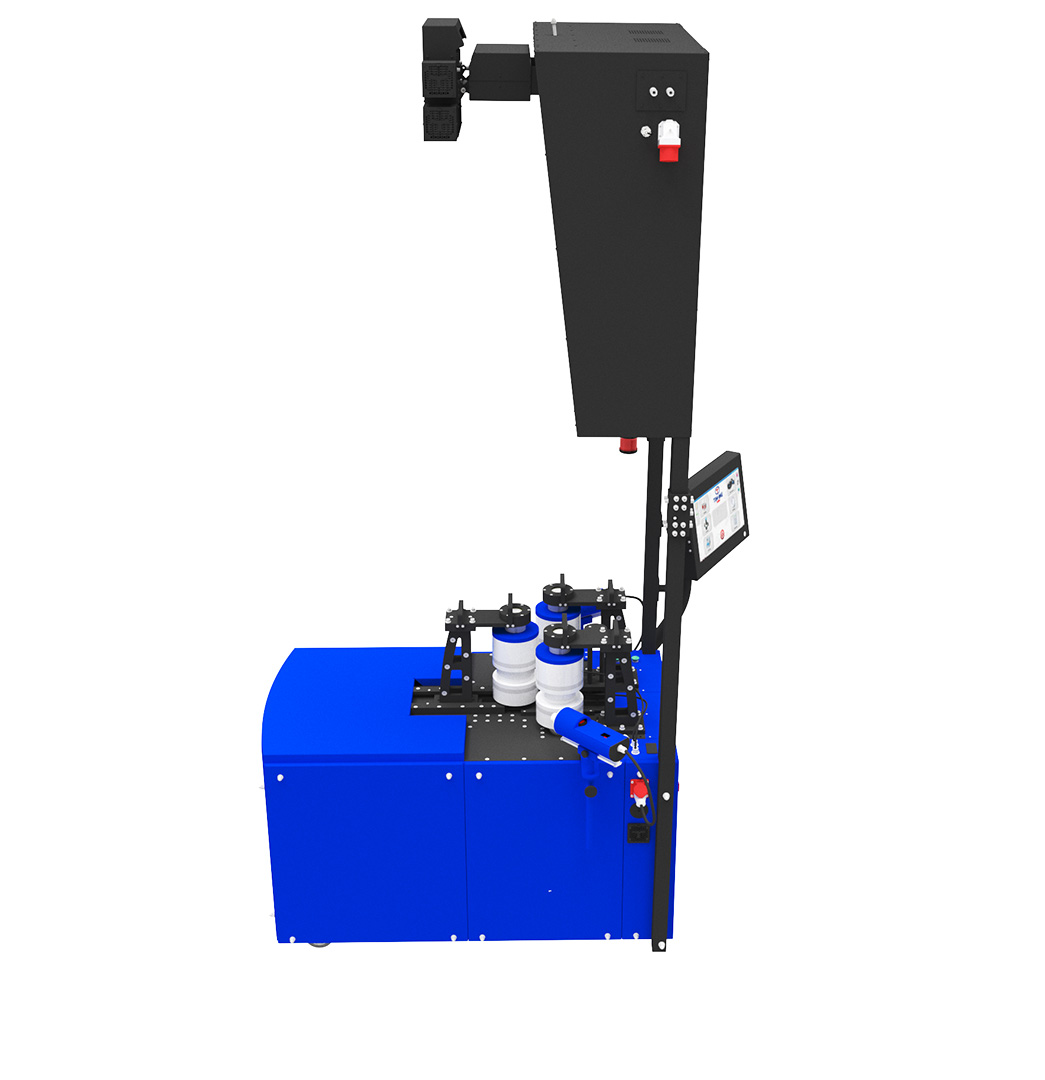

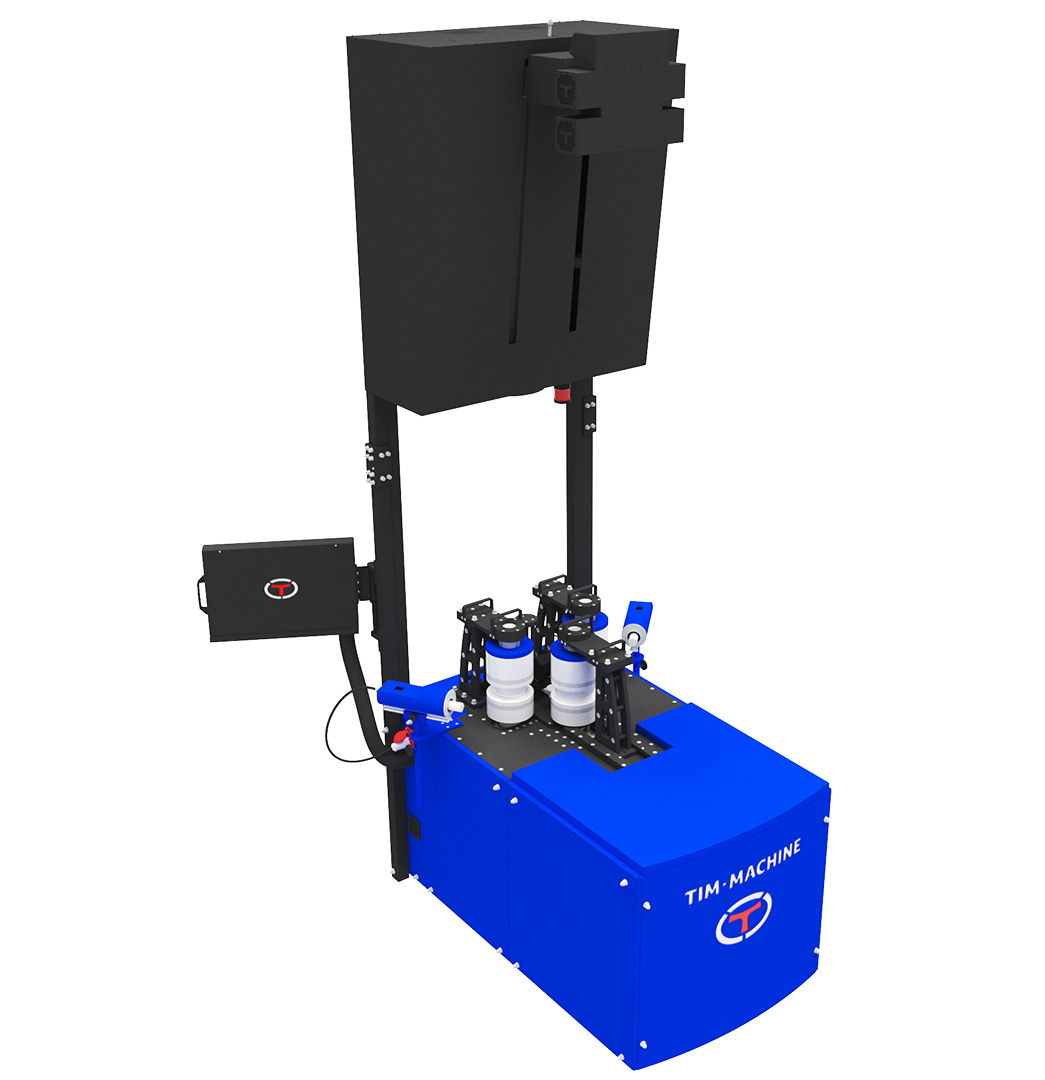

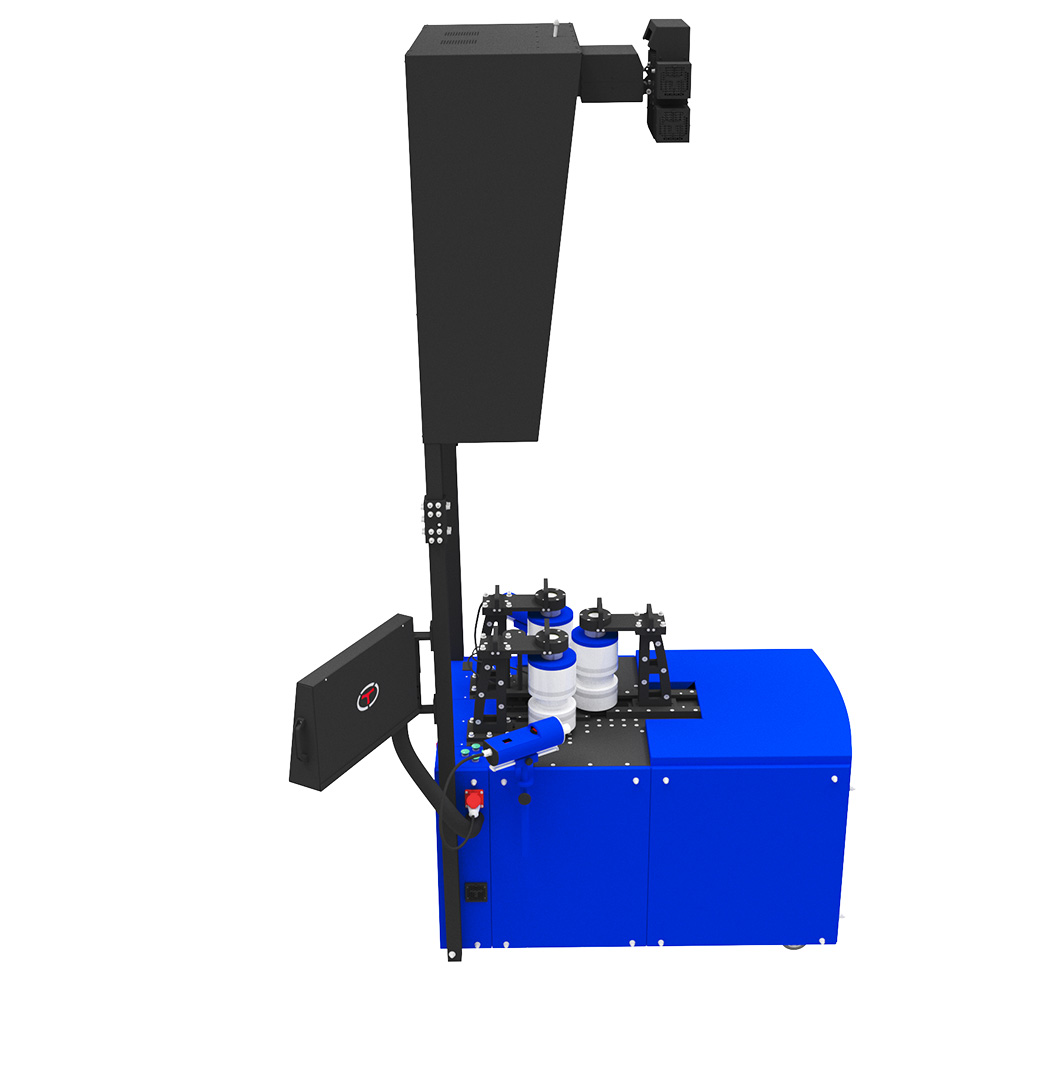

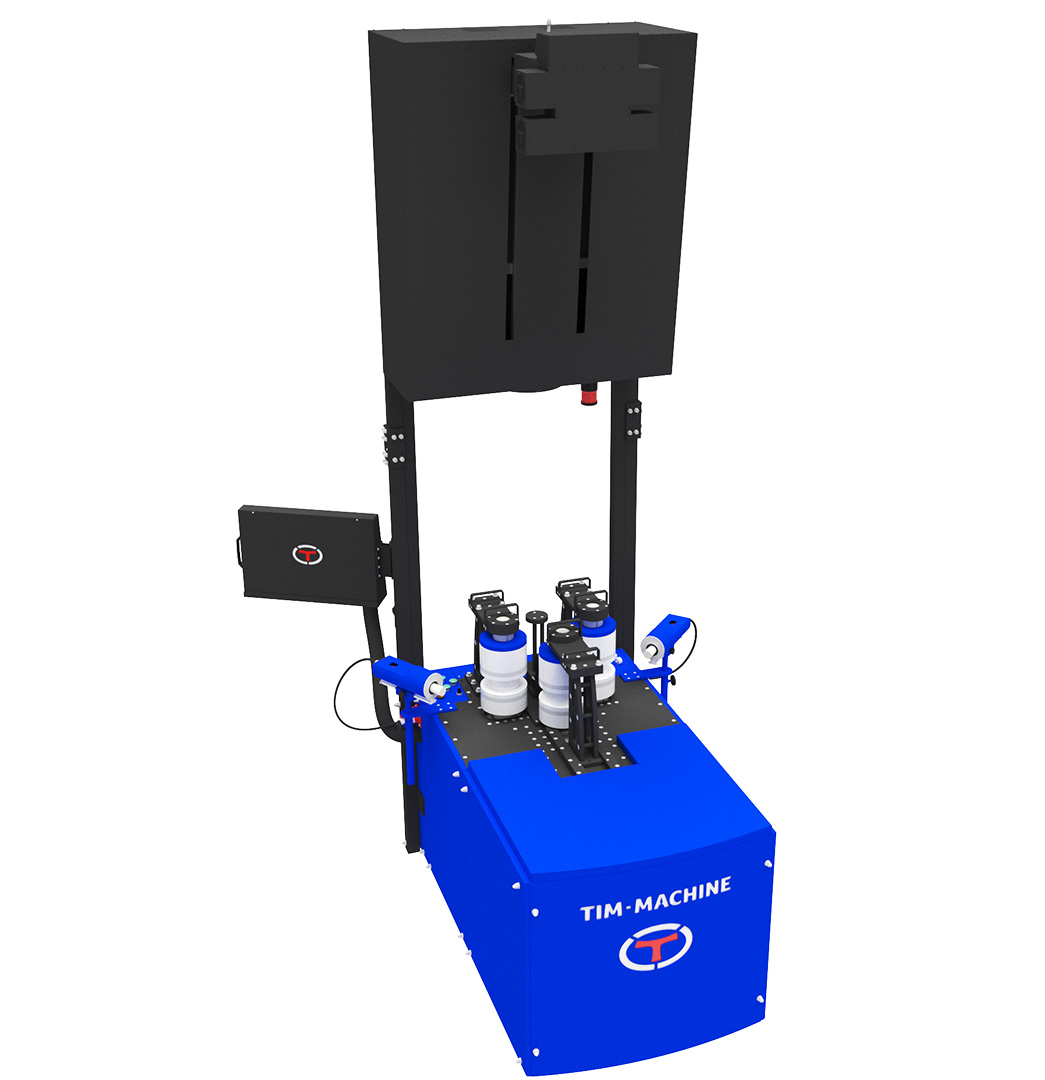

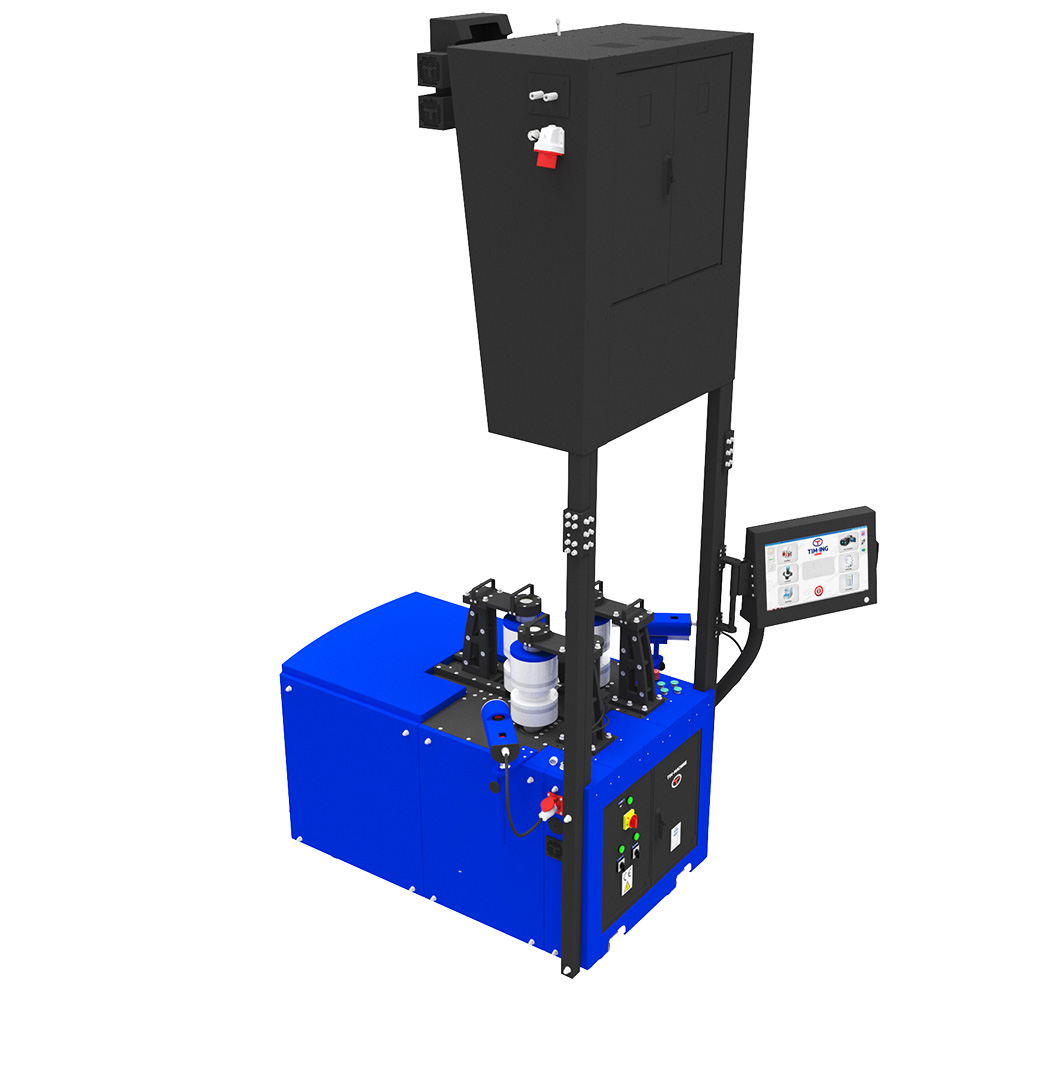

TIM-MACHINE
MODEL S
CNC 3D
Profile bending machine
MODEL S
CNC 3D BP
Basic equipment
One central high
precision 3D camera
- This bending machine is equipped with only one central high precision 3D camera.
- The machine can bend arches with one radius automatically in one process.
- This machine can bend arches from 350 mm to 1500 mm in the automatic mode.
- Larger radii than 1500 mm can be bent in the NC mode – semi-automatically.
- This machine model is equipped with a mechanical holder for the encoder that measures the distance.
- The machine is equipped with a laser device to ensure symmetrical arches.
Profiles bending possibility
| Maximum profile height | 10 – 240 mm |
|---|---|
| Maximum profile width | 10 – 100 mm |
| Maximum profile (height + width) – Axis | 240 x 40 mm |
| Maximum profile (width + height) – Axis | 80 x 40 mm |
| Maximum profile length | Unlimited |
| Profile wall thickness | 1 – 4 mm |
Arches bending possibility
| Automatic bending arches with one radius | |
|---|---|
| Automatic bending arches with two radii | |
| Automatic bending arches with three radii | |
| Manual bending arches |
TECHNICAL SPECIFICATIONS
| Name | TIM-MACHINE |
|---|---|
| Model | MODEL S |
| Type of machine | CNC 3D BP |
| Electric motor for X axis – back axle – 2 pcs | 3 kW + 3 kW |
| X axis – two back axles – max torque | 1316 Nm |
| Electric motor for X axis – middle axle – 1 pcs | 2,2 KW |
| X axis – middle axle – max torque per middle axle) | 1163 Nm |
| Electric motor for Y axis – threaded spindle – 1 pcs | 2.2 kW |
| Y axis – max torque per threaded spindle | 500 Nm |
| Number of propulsive axles | 3 |
| Dimensions | 1800 x 1700 x 3650mm |
| Weight | 1500 kg |
| Axle rotation speed | 0-16 rpm |
| Axle diameter | 70 mm |
| Axle height | 300 mm |
| Voltage | 3x380V~50 Hz |
| Warranty | 1 year |
| Country of origin | Serbia |
TIM-MACHINE
CNC 3D BP
MODEL S
