MODEL M CNC F - TIM-ING Centar

TIM-MACHINE
MODEL M

CNC 3D

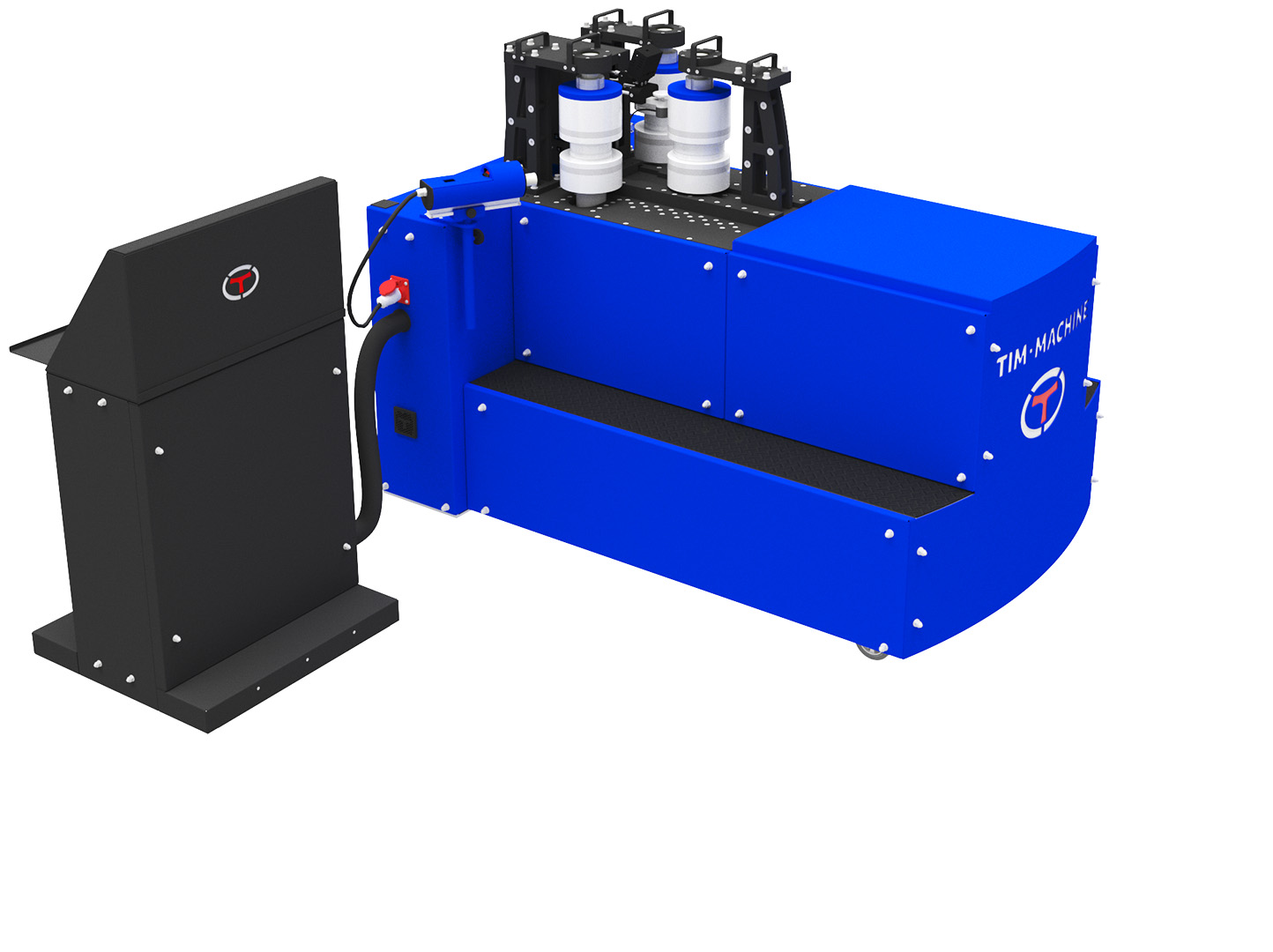

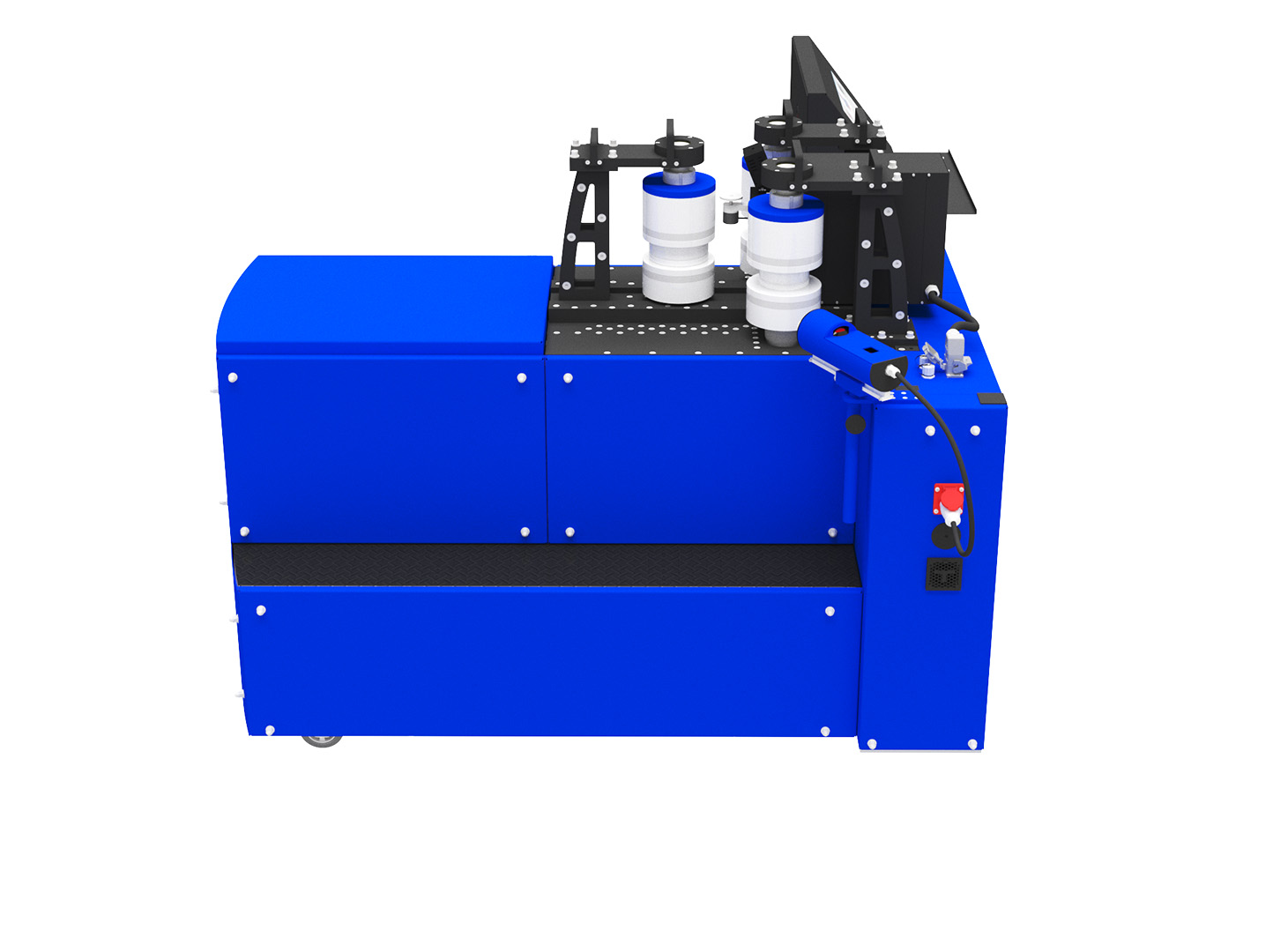

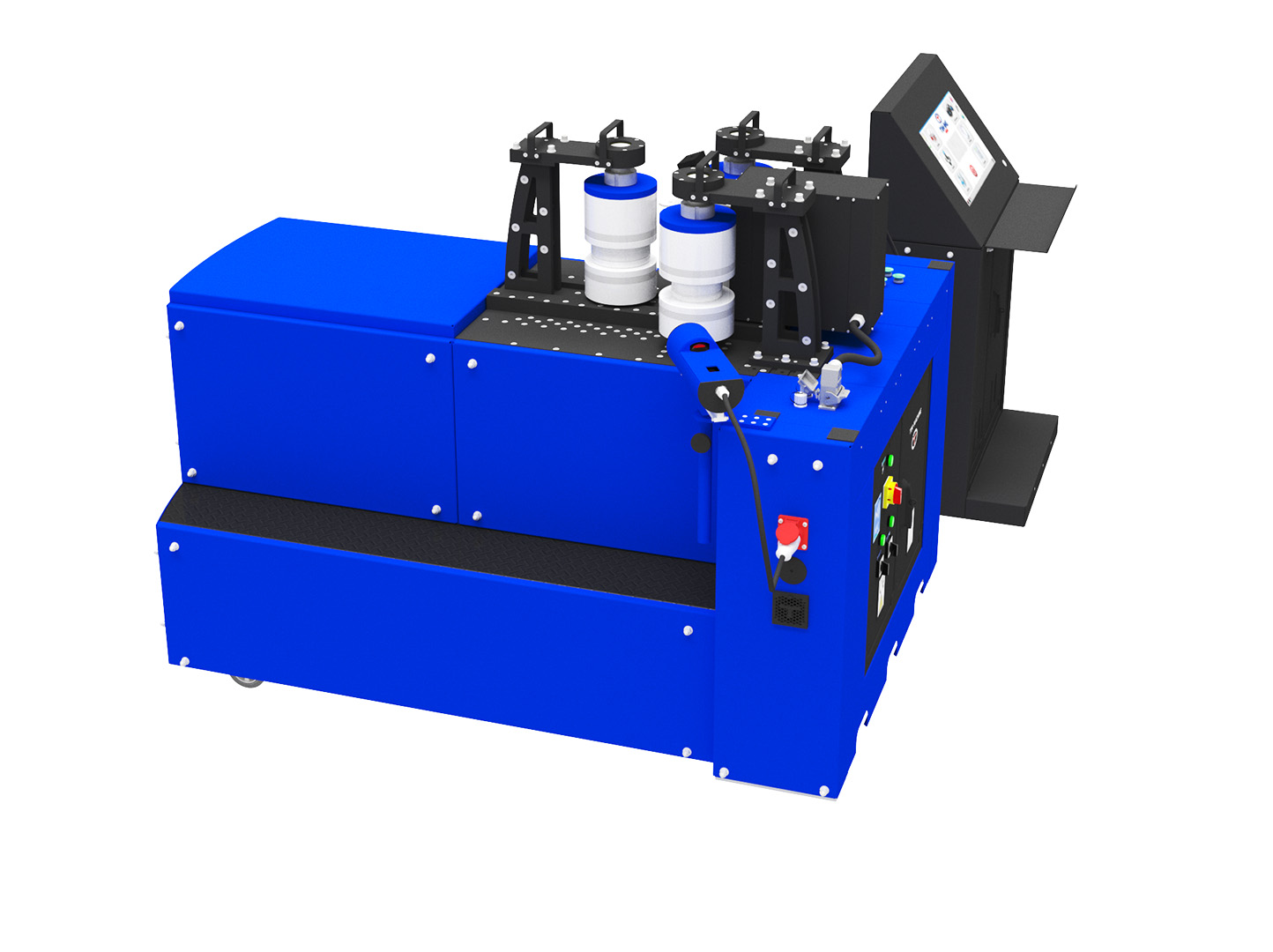

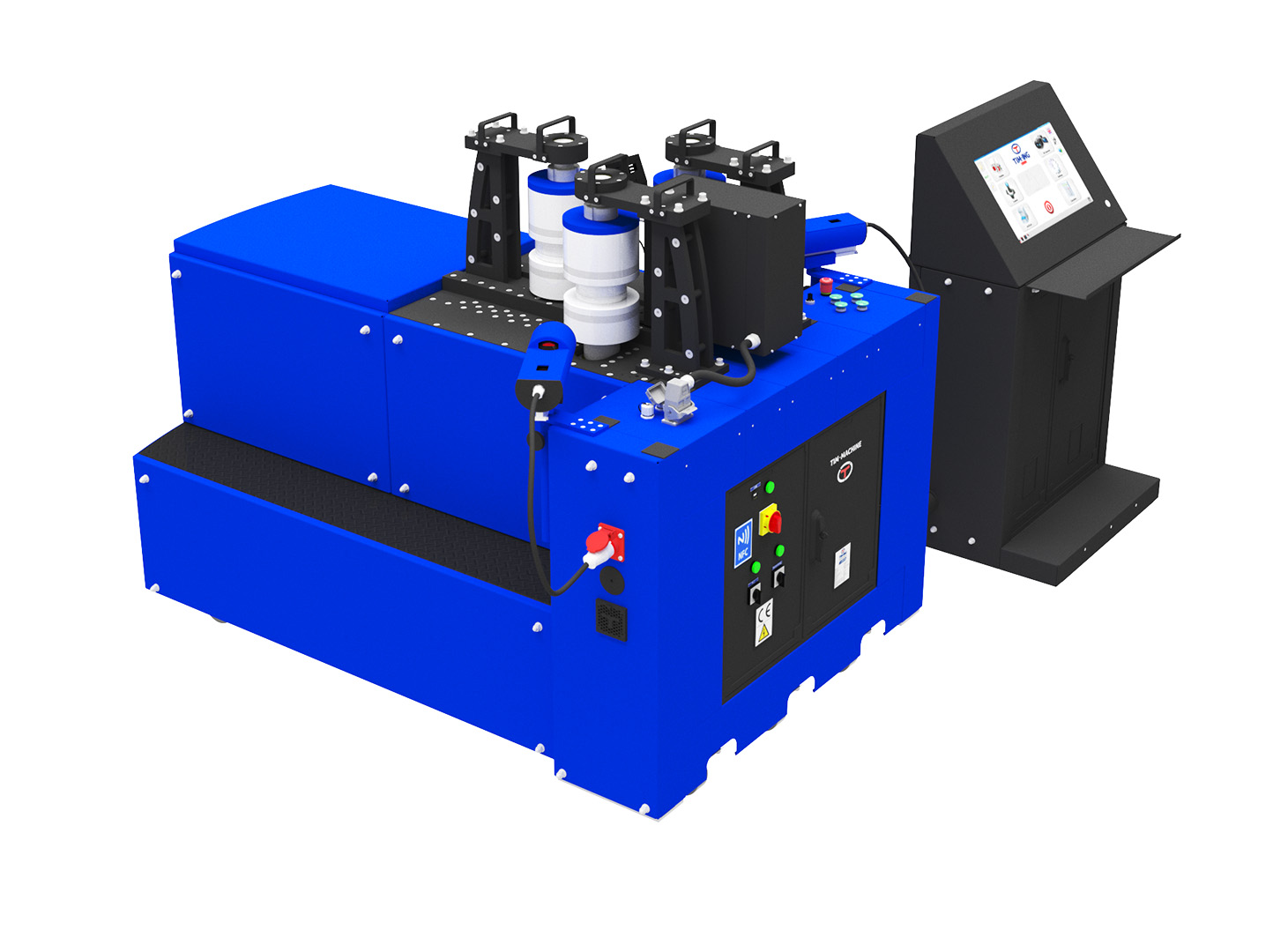

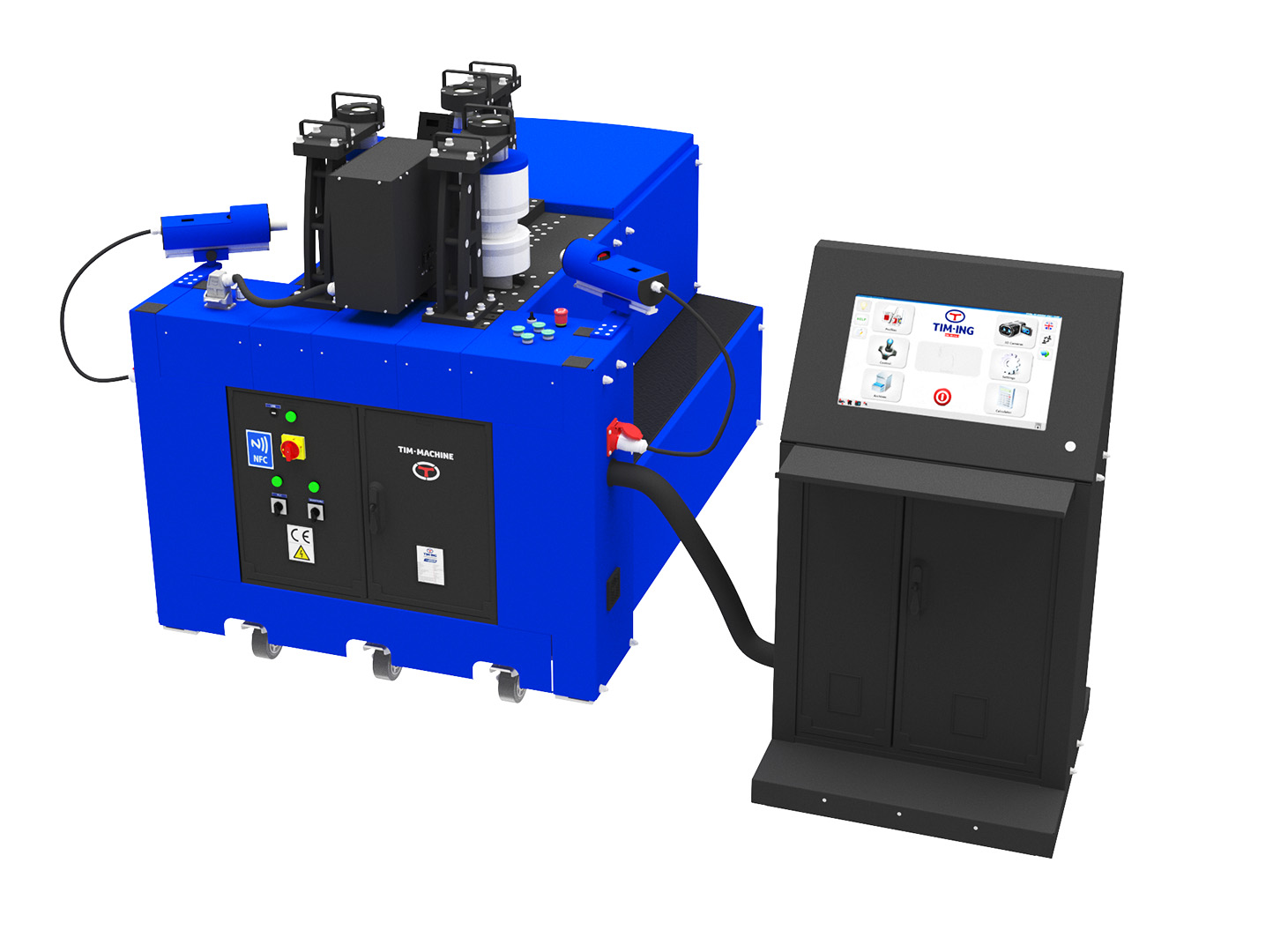

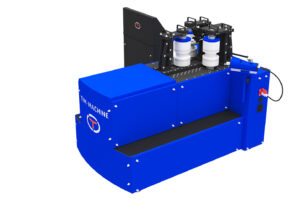

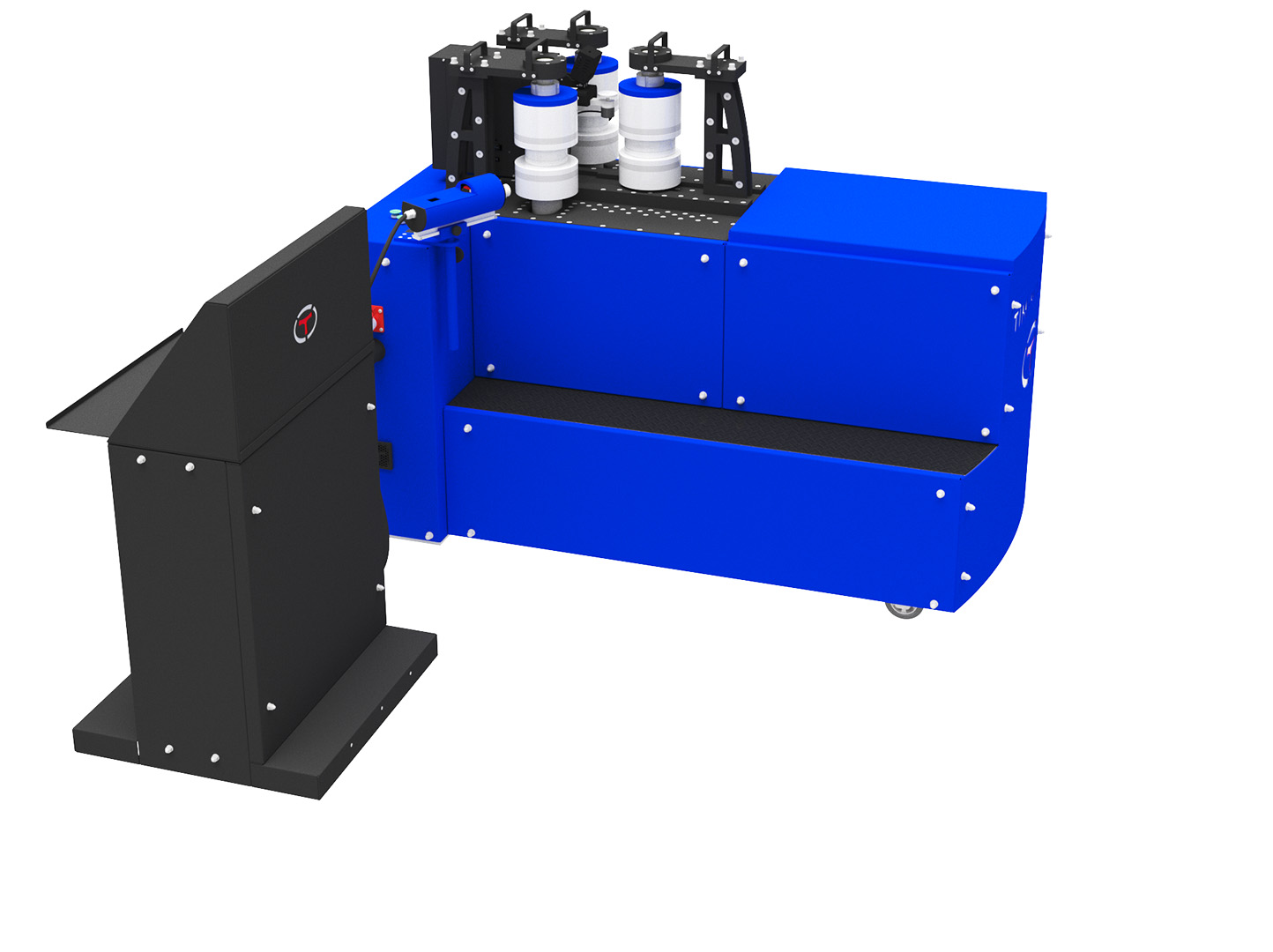

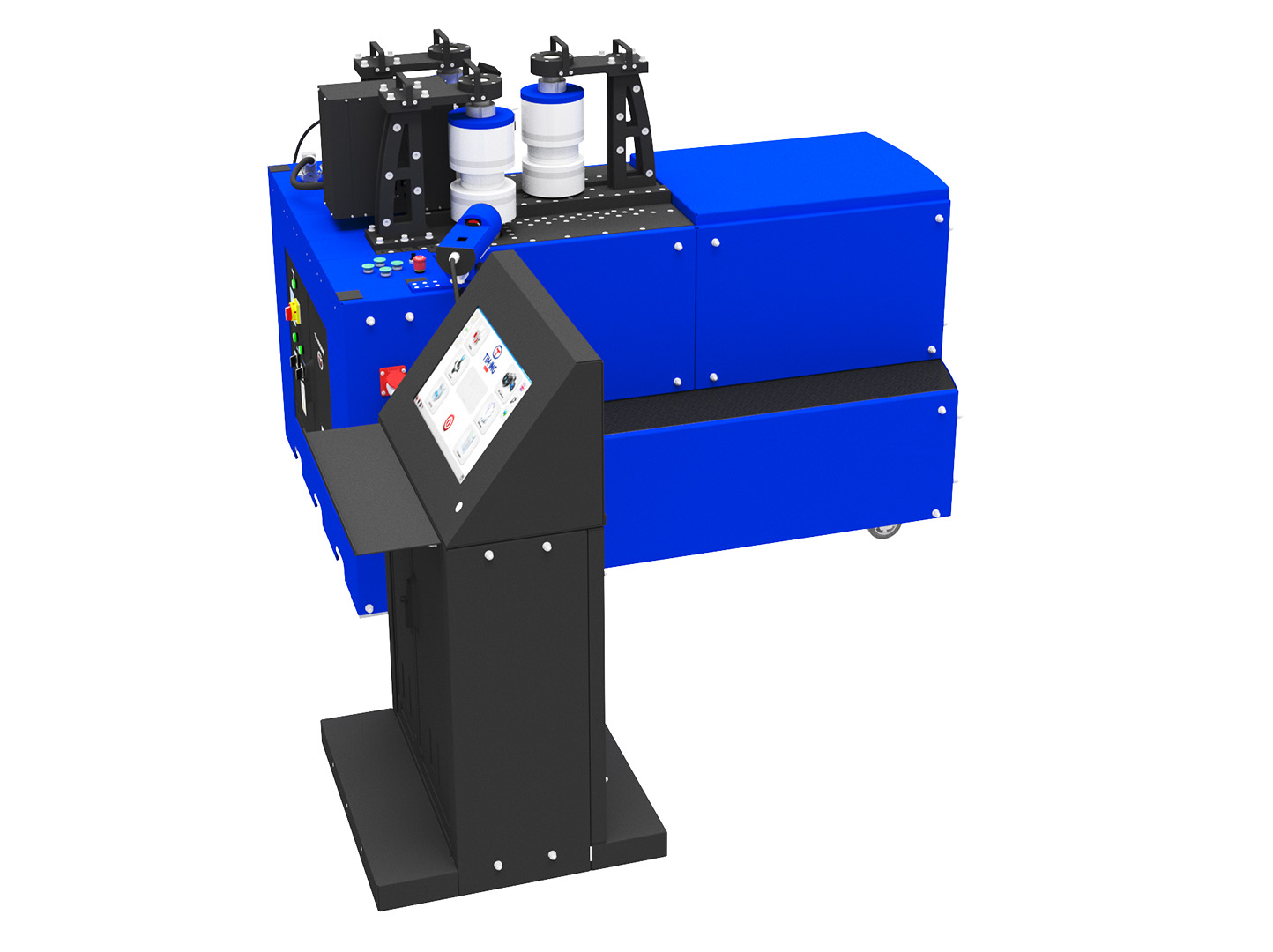

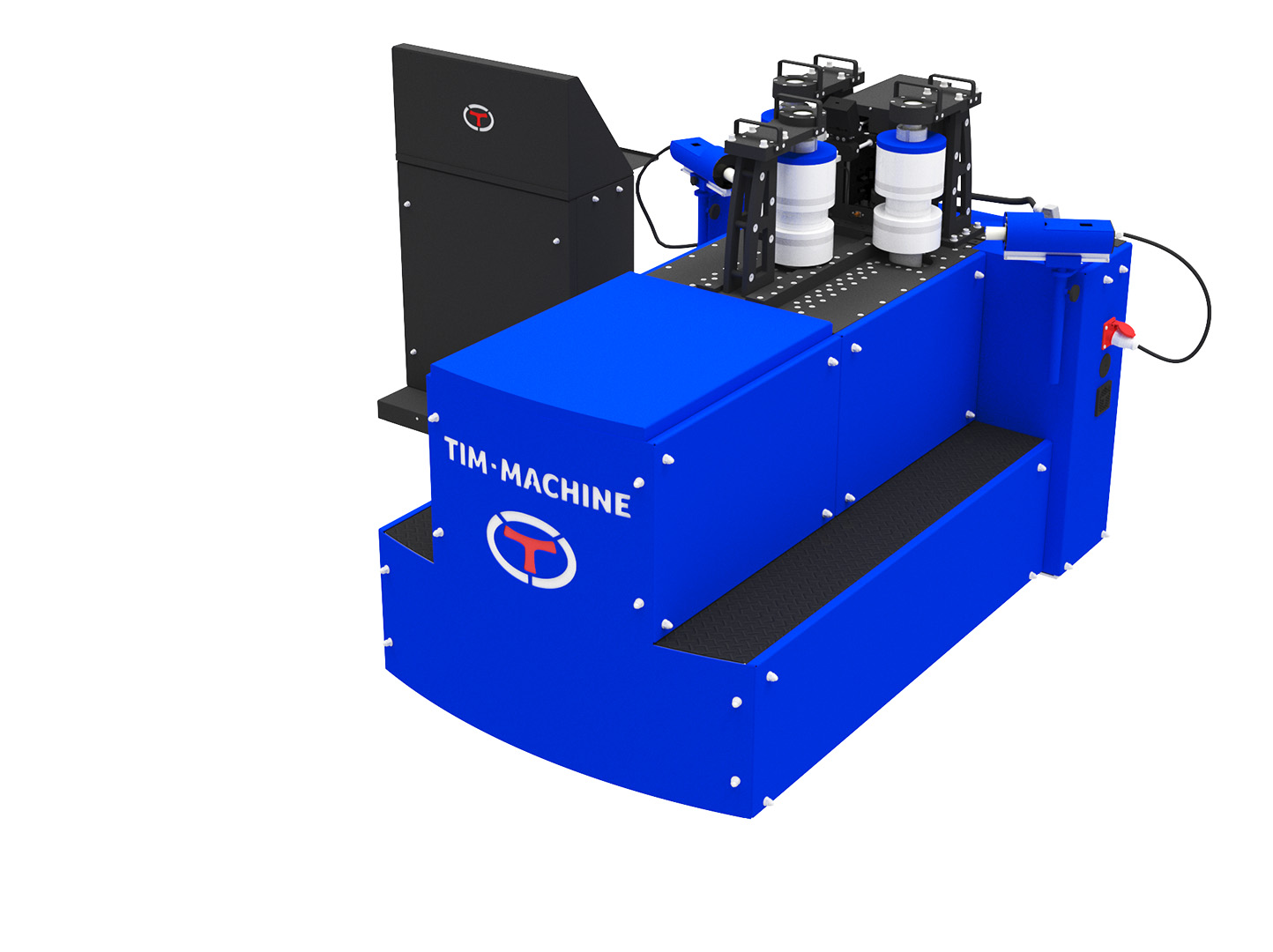

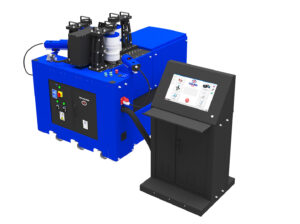

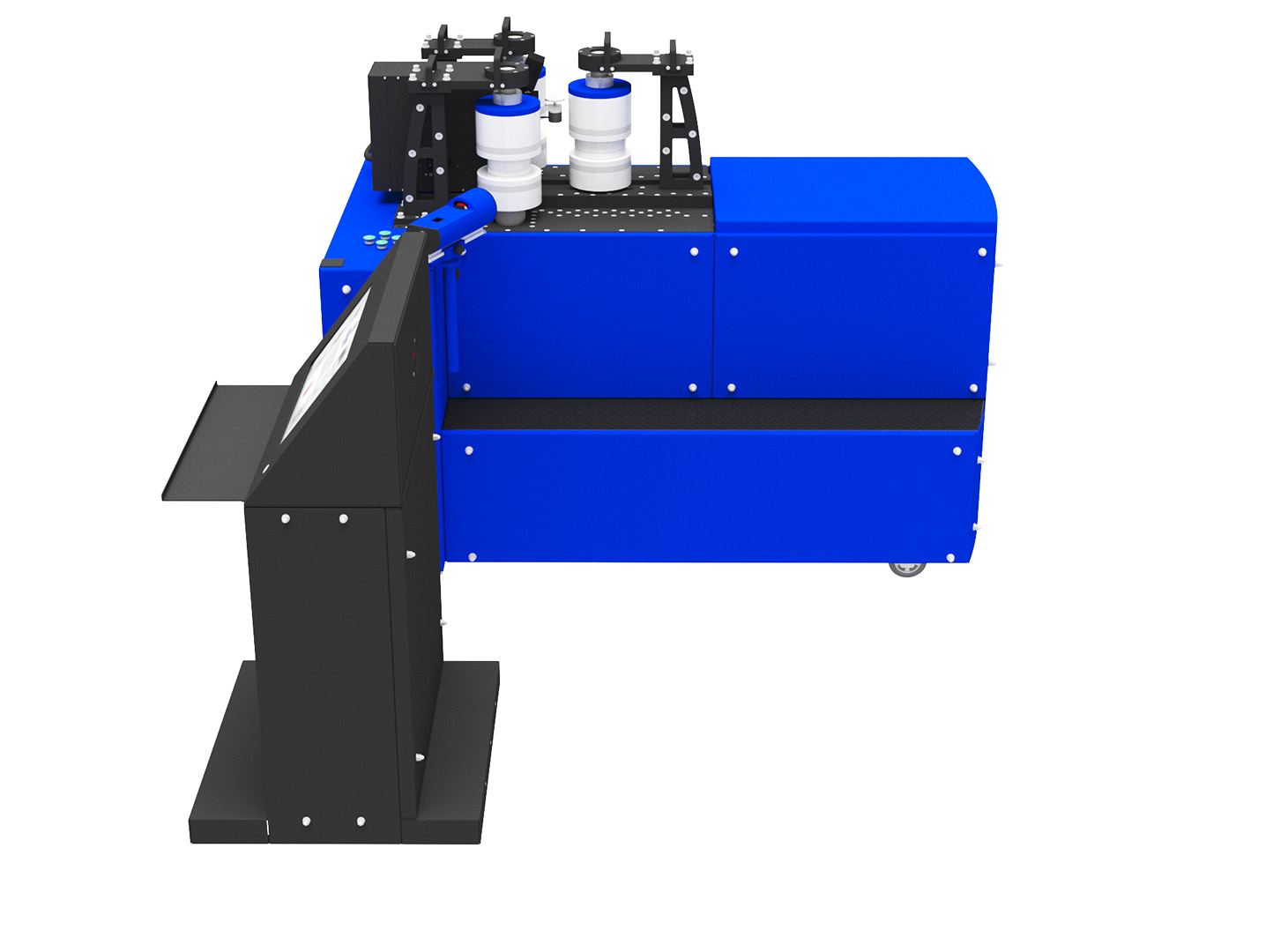

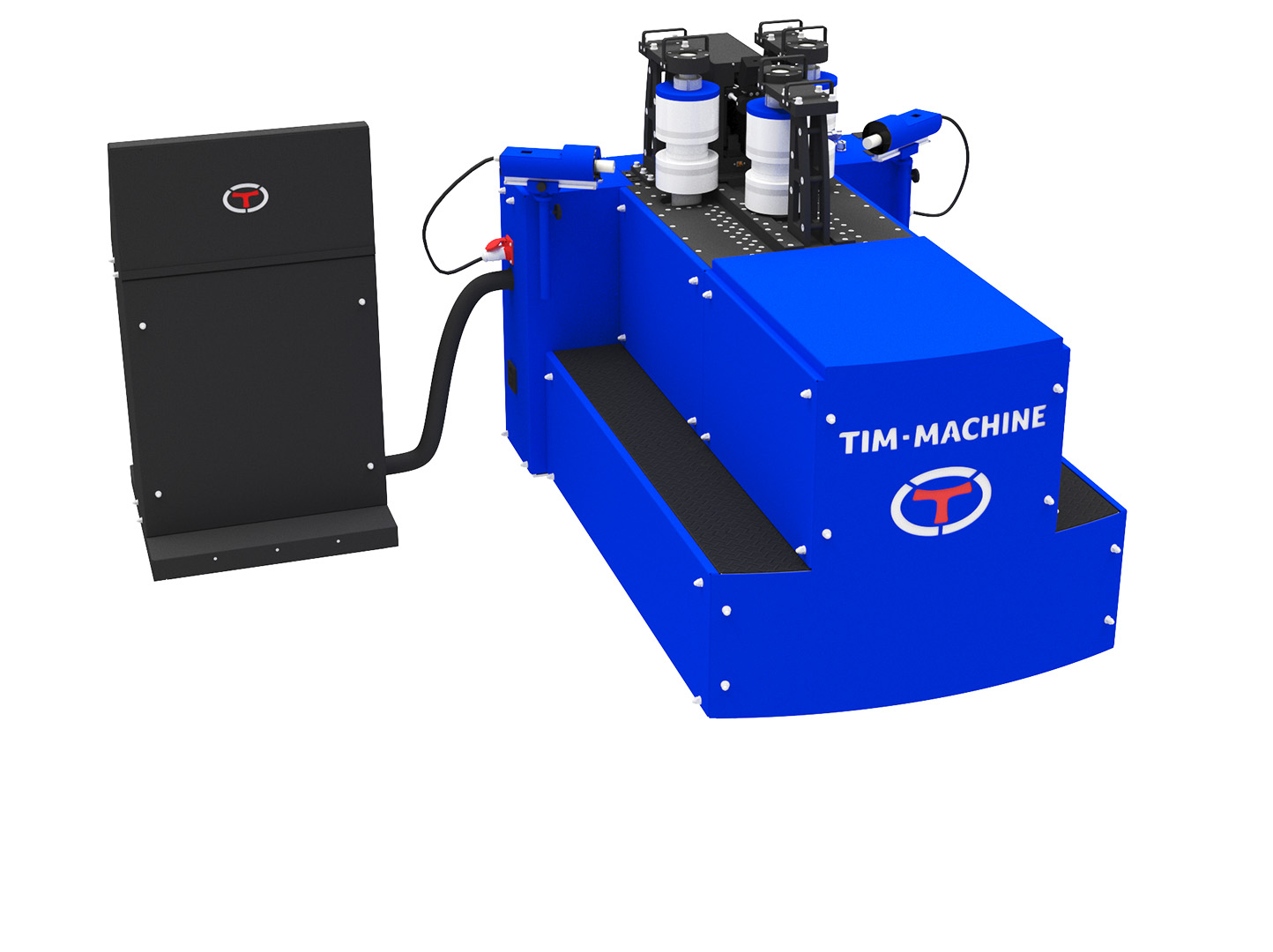

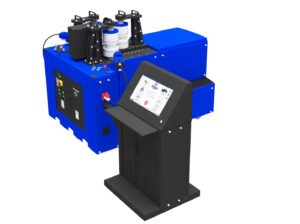

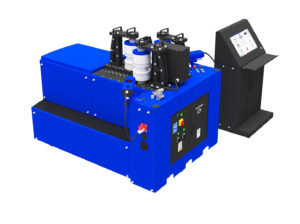

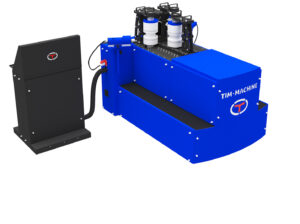

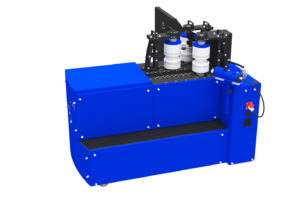

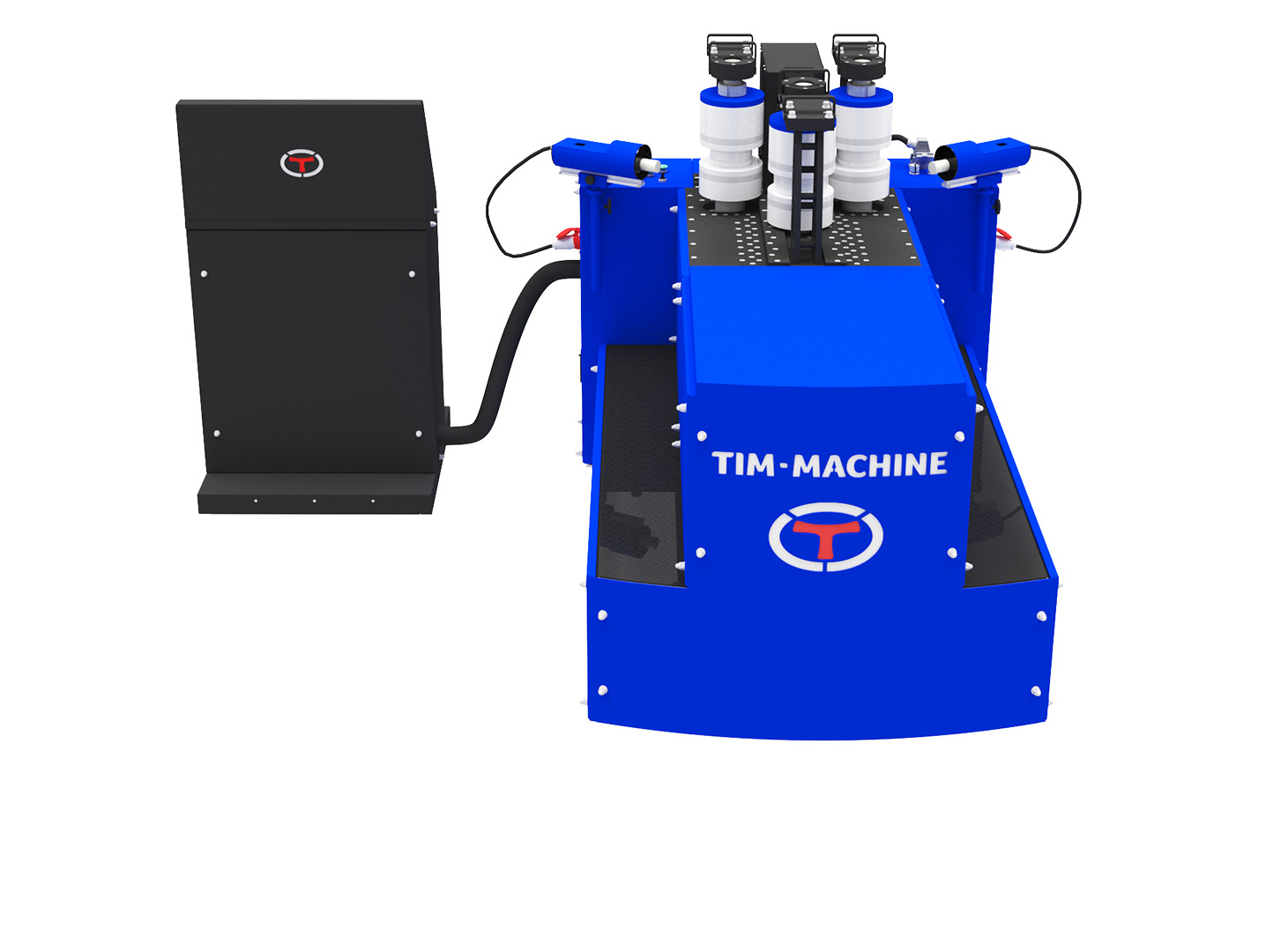

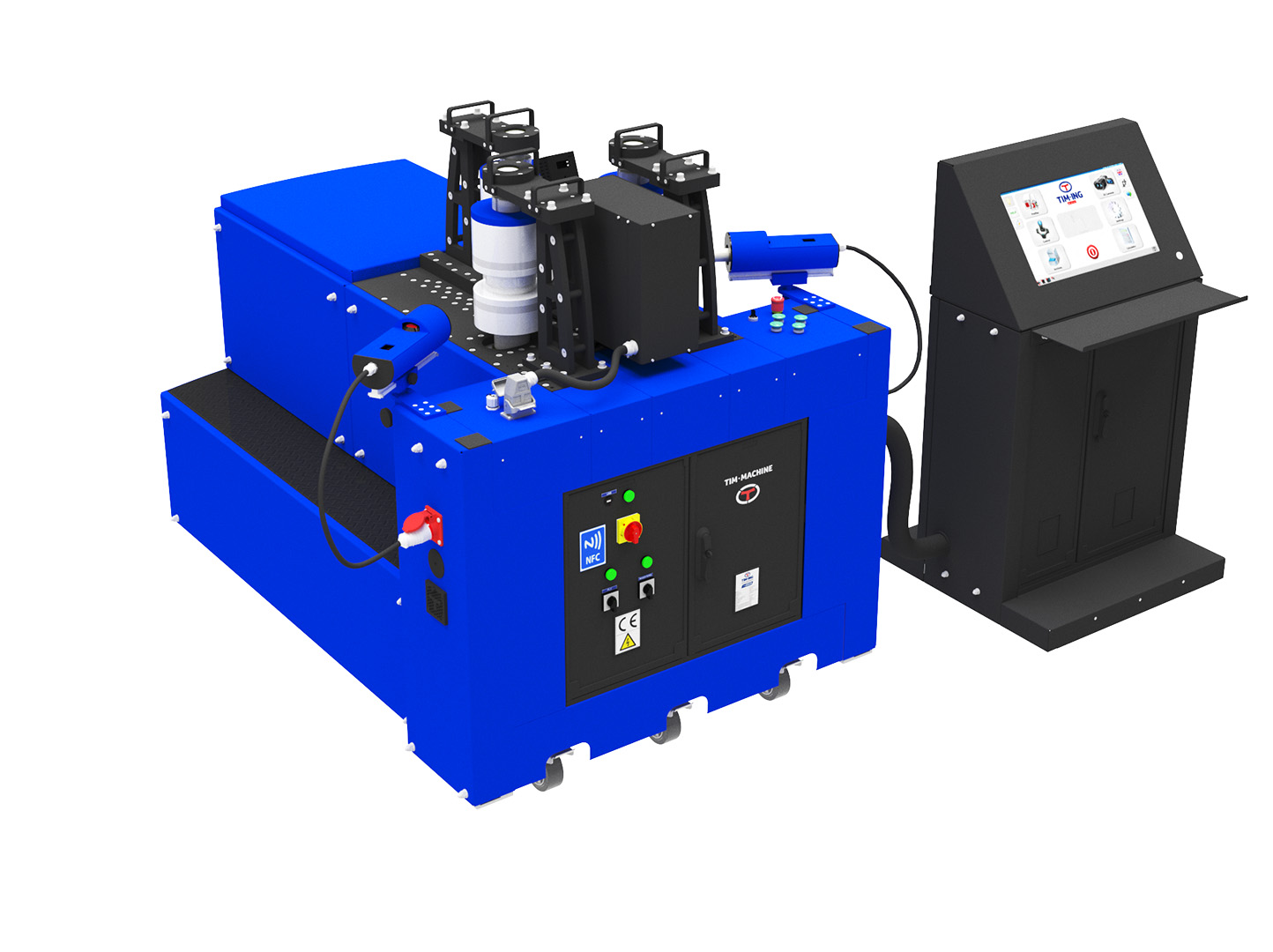

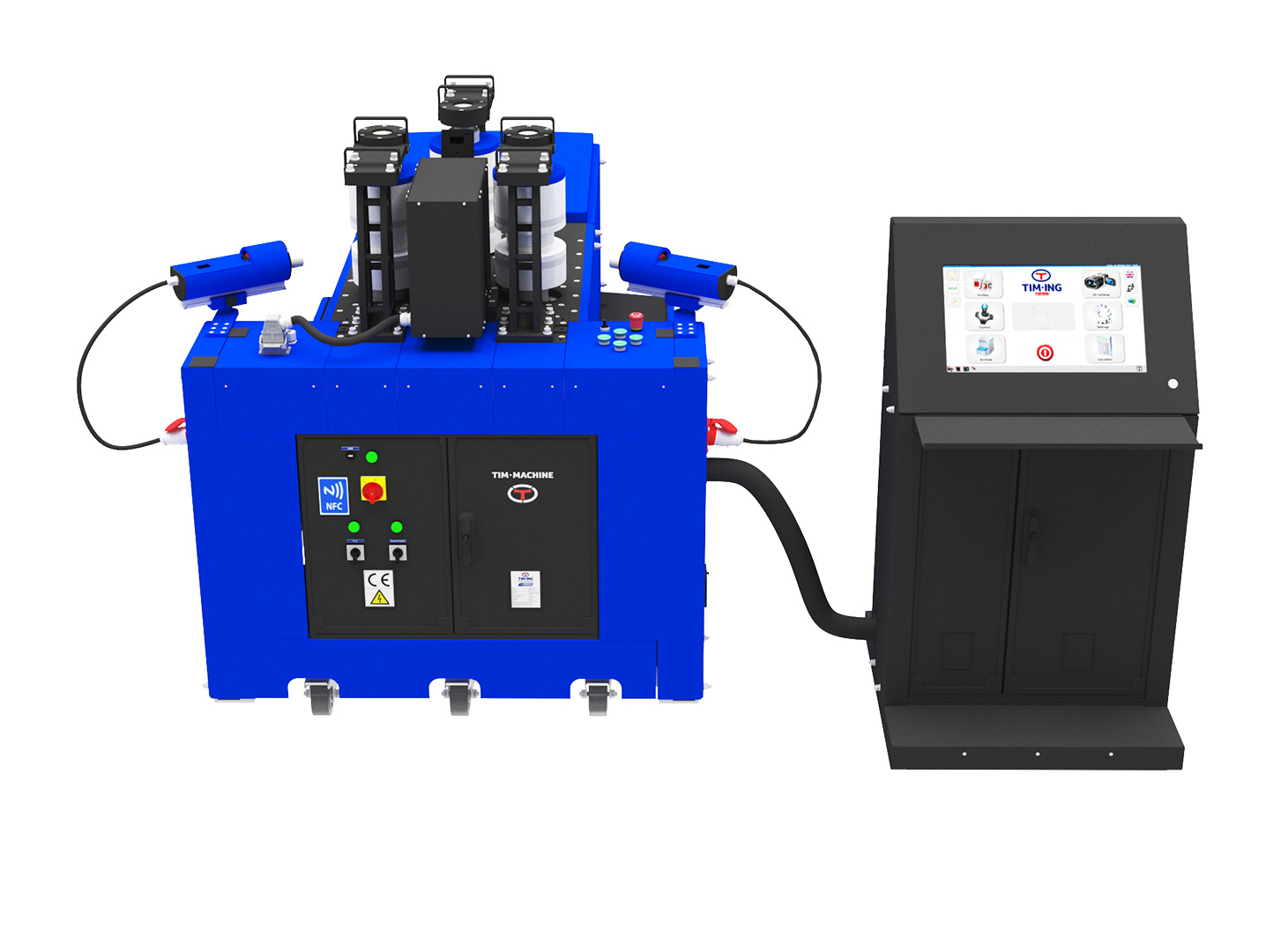

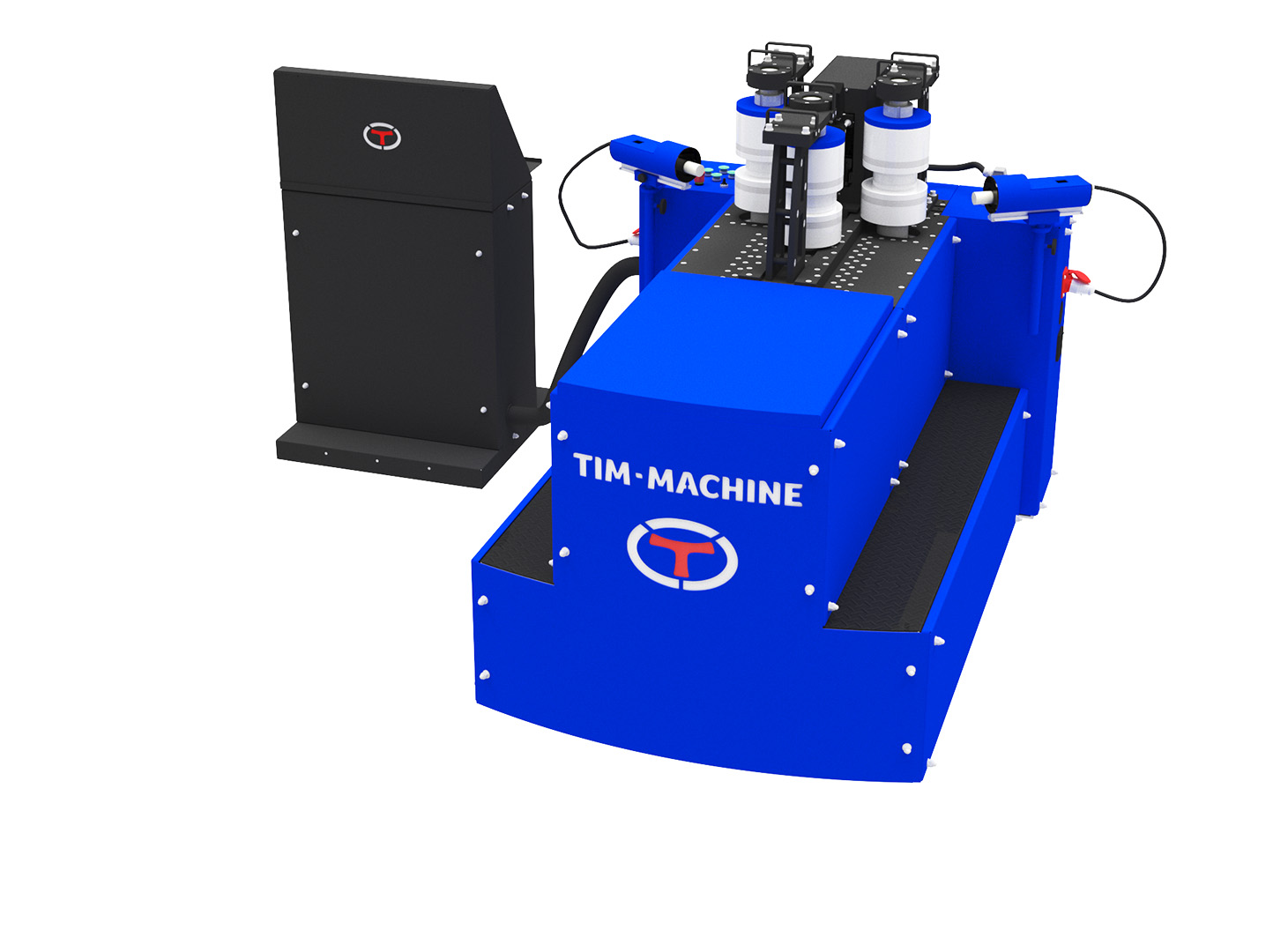

Profile bending machine

MODEL M

CNC F

Full equipment
CNC system
high precision

This bending machine is equipped with a high precision CNC system.
The machine can automatically bend arcs with one radius in one process.
This machine can bend arcs from 350 mm to 1500 mm in automatic CNC mode.
It can also bend radii greater than 1500 mm in CNC mode, automatically.
This machine model is equipped with an automatic platform that automatically adjusts the height of the position of the encoder and the laser device.
The machine is equipped with a laser device that ensures the symmetry of the left and right sides of the arc.

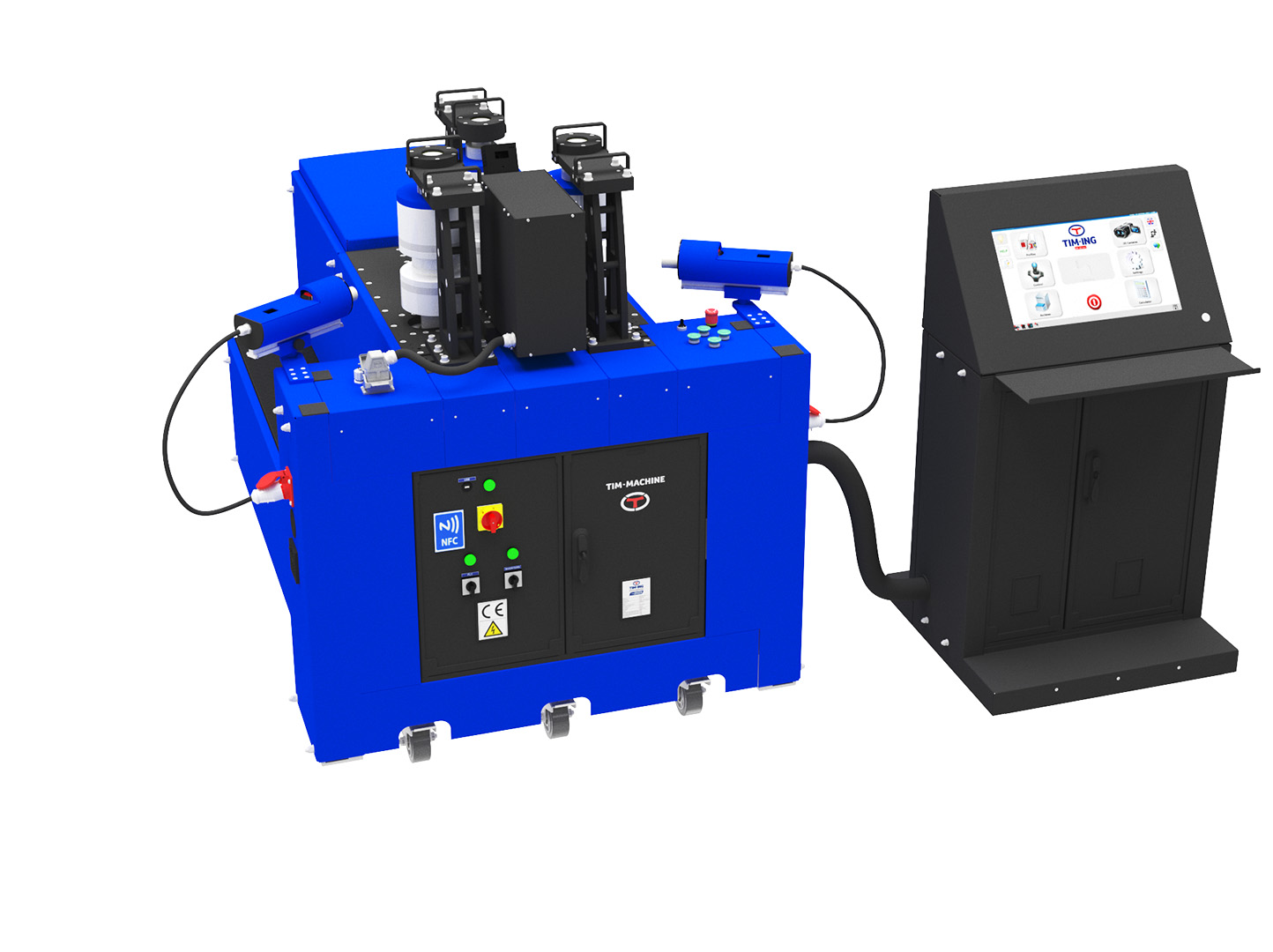

The machine is equipped with an NFC device that provides a secure way of signing in and out of the program.
The NFC device enables data security on the machine.
The machine is equipped with a remote control, which is very useful for longer profiles, so that the operator can very easily insert and remove the profiles from the machine.

Profiles bending possibility

Maximum profile height	10 – 240 mm
Maximum profile width	10 – 140 mm
Maximum profile (height + width) – Axis	240 x 60 mm
Maximum profile (width + height) – Axis	140 x 50 mm
Maximum profile length	Unlimited
Profile wall thickness	1 – 5 mm

Arches bending possibility

Automatic bending arches with one radius


Manual bending arches

TECHNICAL SPECIFICATIONS

Name	TIM-MACHINE
Model	MODEL M
Type of machine	CNC F
Electric motor for X axis – back axle – 2 pcs	4 kW + 4 kW
X axis – two back axles – max torque	5058 Nm
Electric motor for X axis – middle axle – 1 pcs	3 KW
X axis – middle axle – max torque per middle axle)	2533 Nm
Electric motor for Y axis – threaded spindle – 1 pcs	3 kW
Y axis – max torque per threaded spindle	2452 Nm
Number of propulsive axles	3
Dimensions	1800 x 1900 x 3650mm
Weight	2100 kg
Axle rotation speed	0-14 rpm
Axle diameter	70 mm
Axle height	300 mm
Voltage	3x380V~50 Hz
Warranty	1 year
Country of origin	Serbia

CNC F
