TIM-MACHINE
MODEL M
CNC 3D

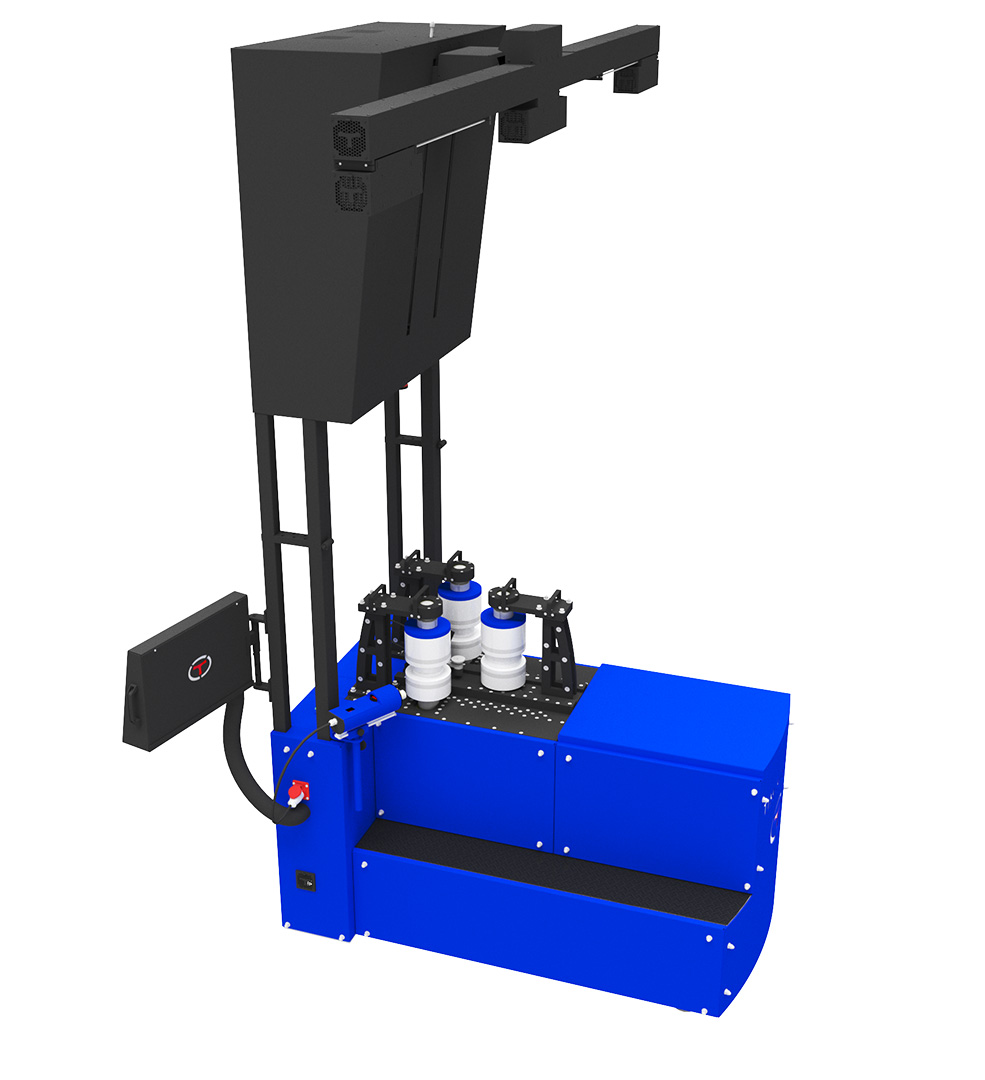

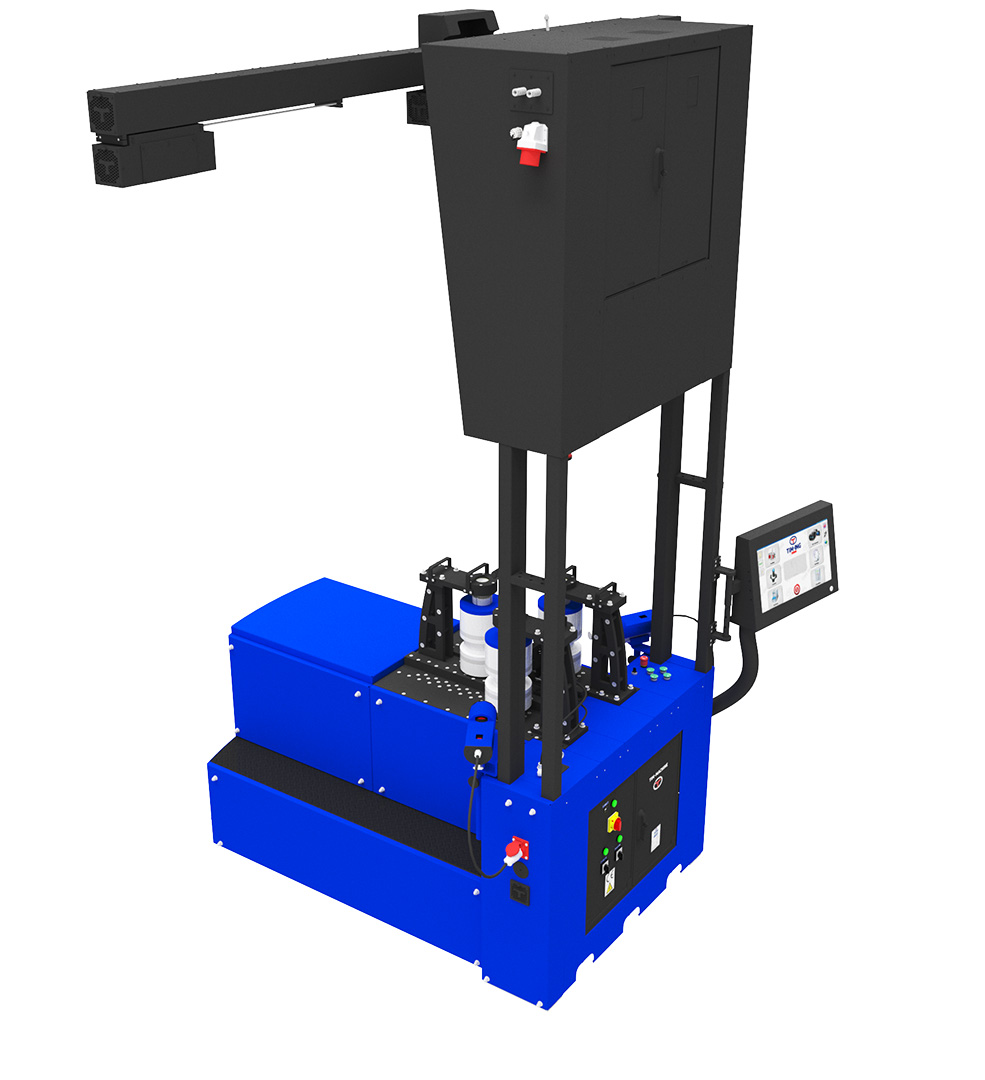

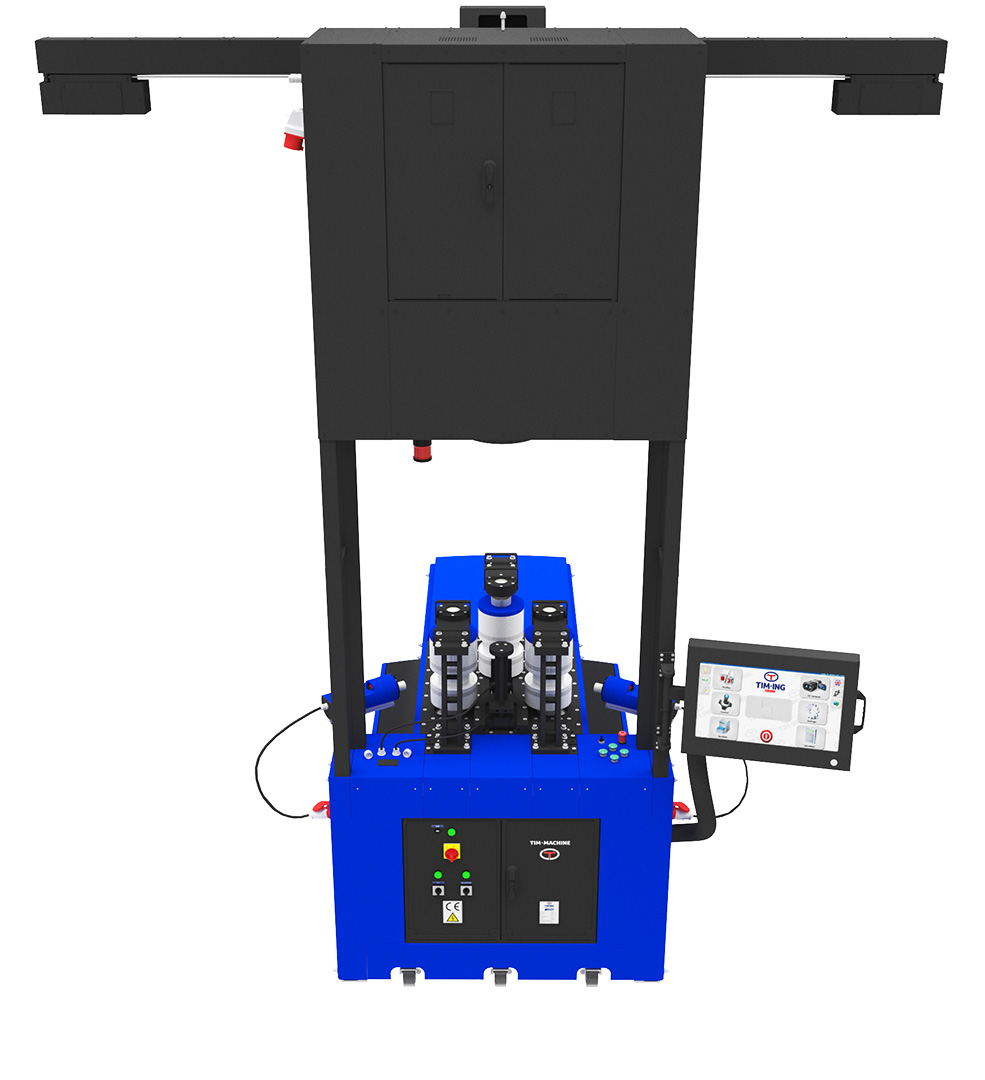

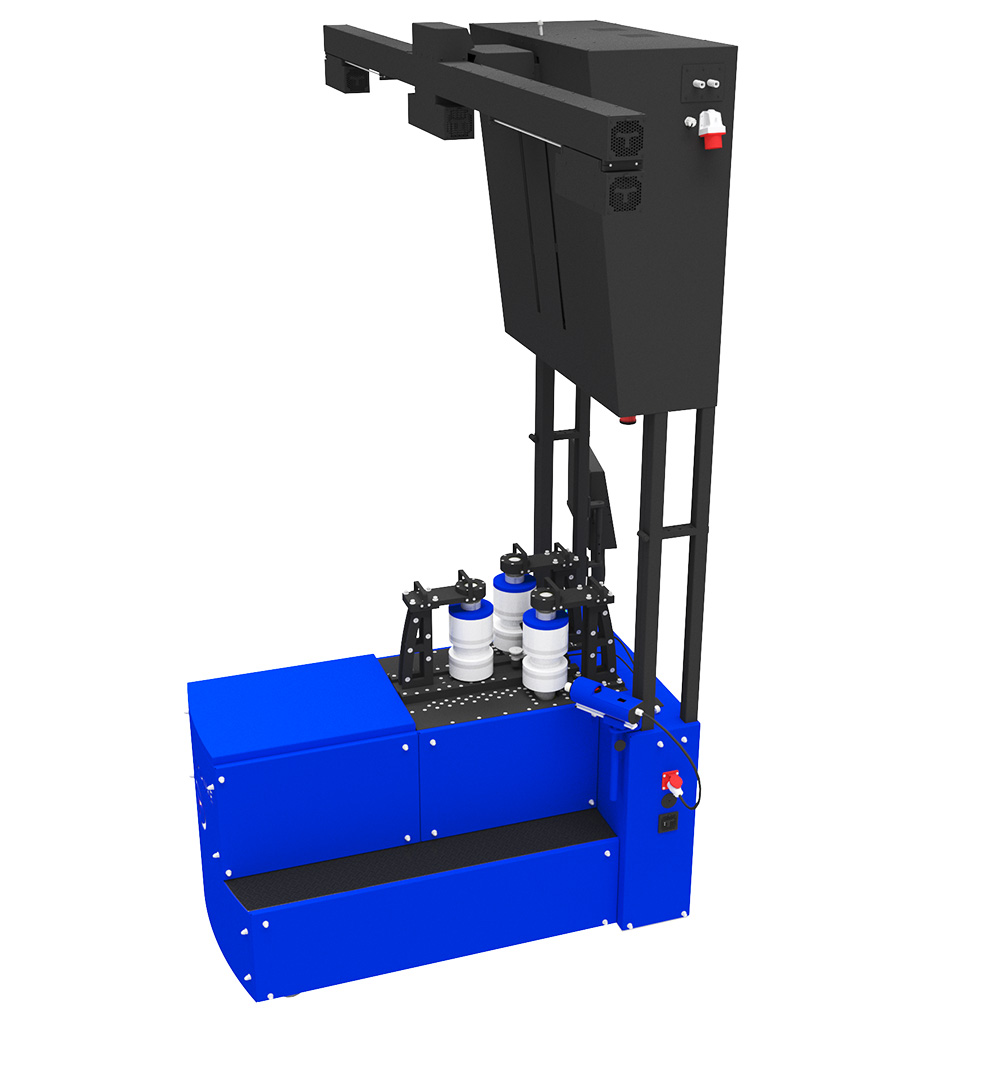

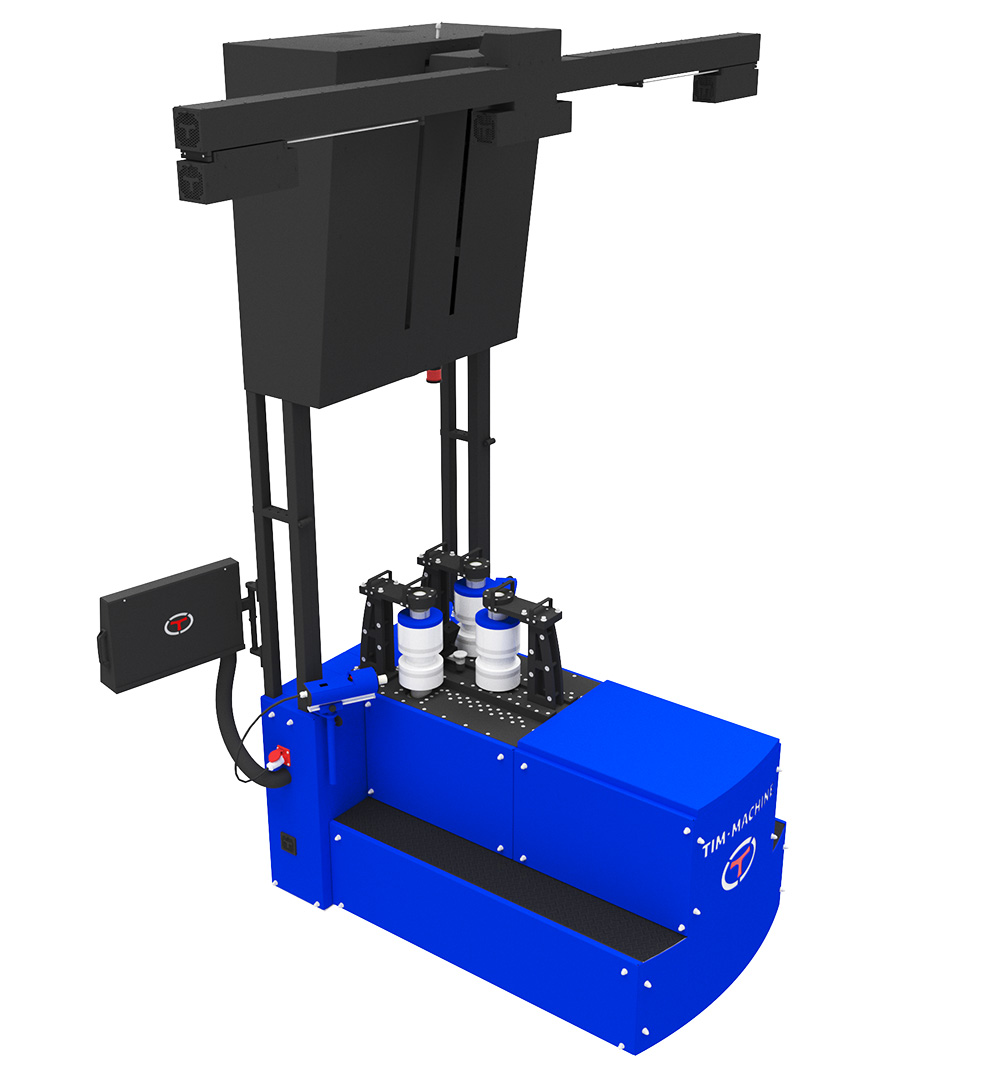

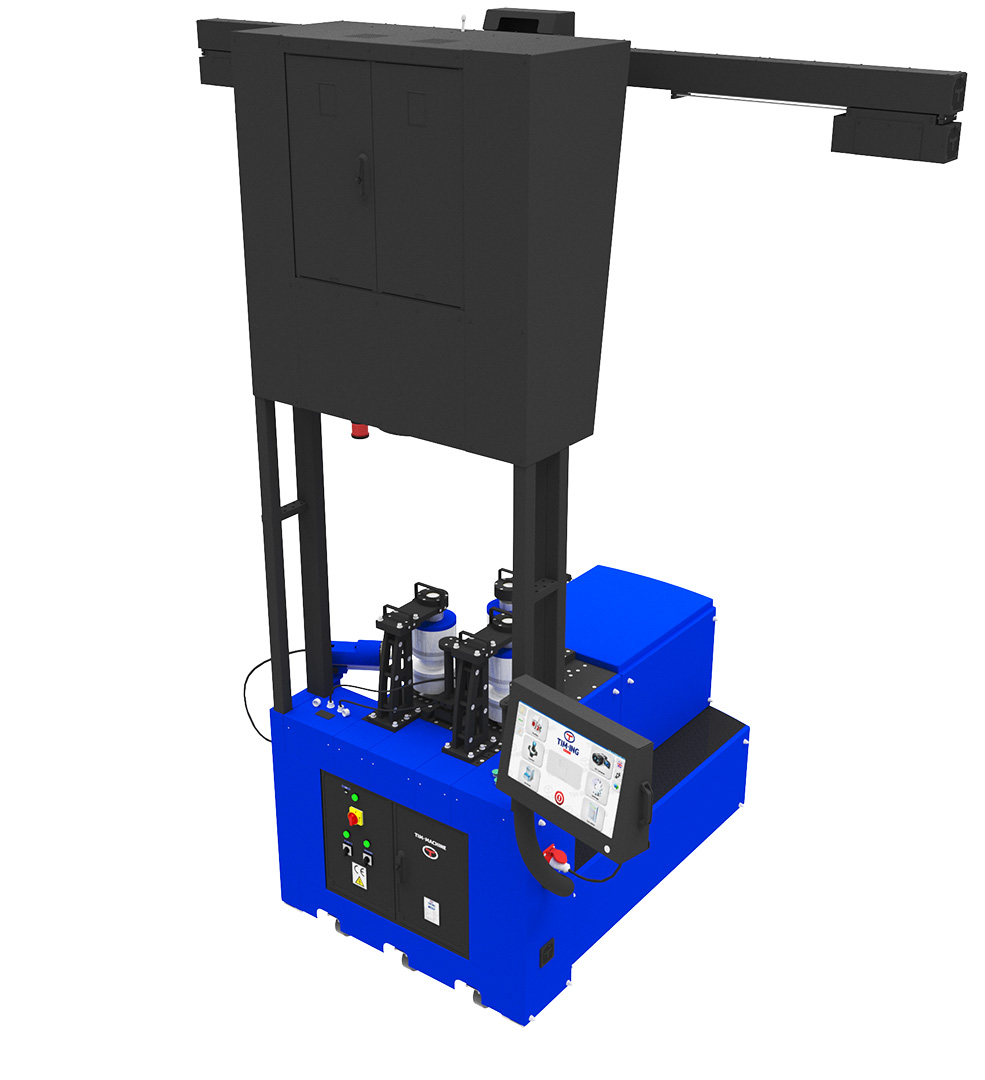

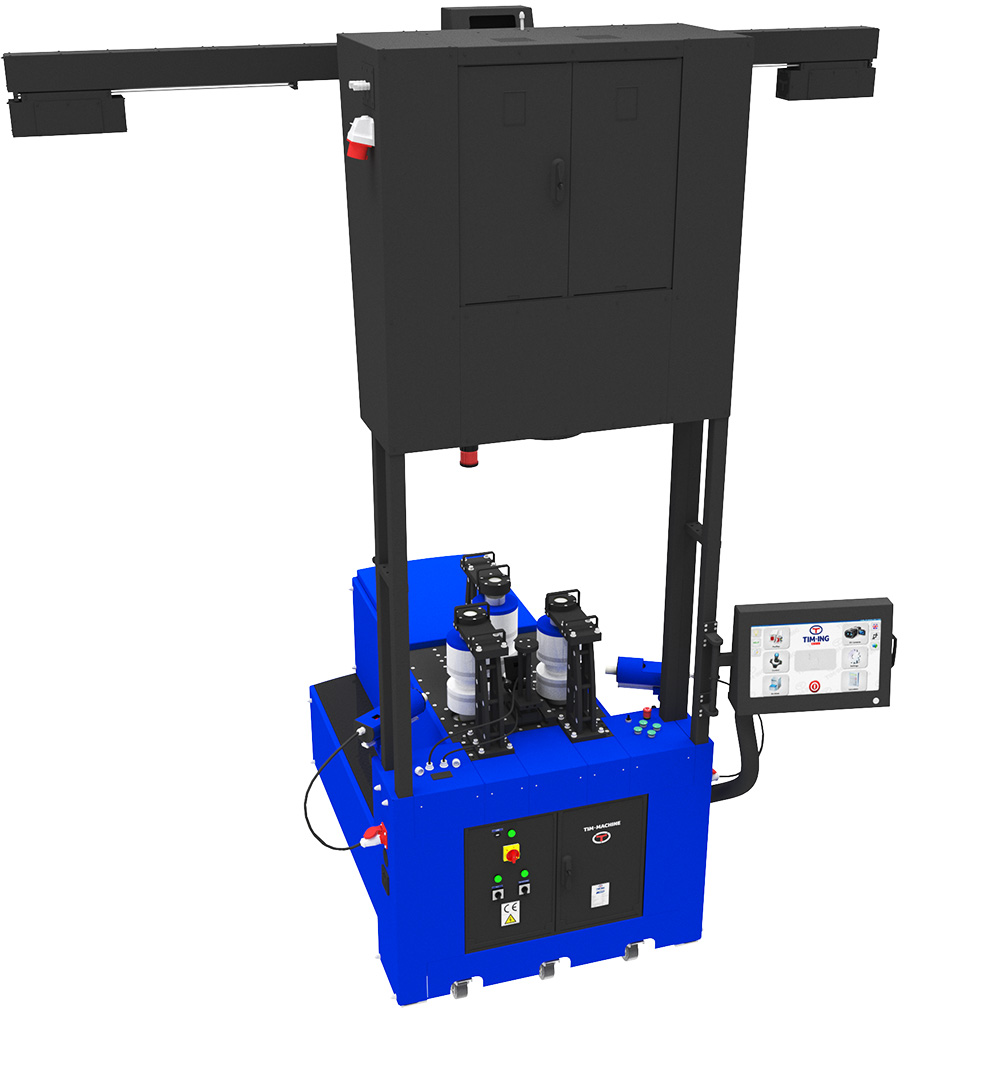

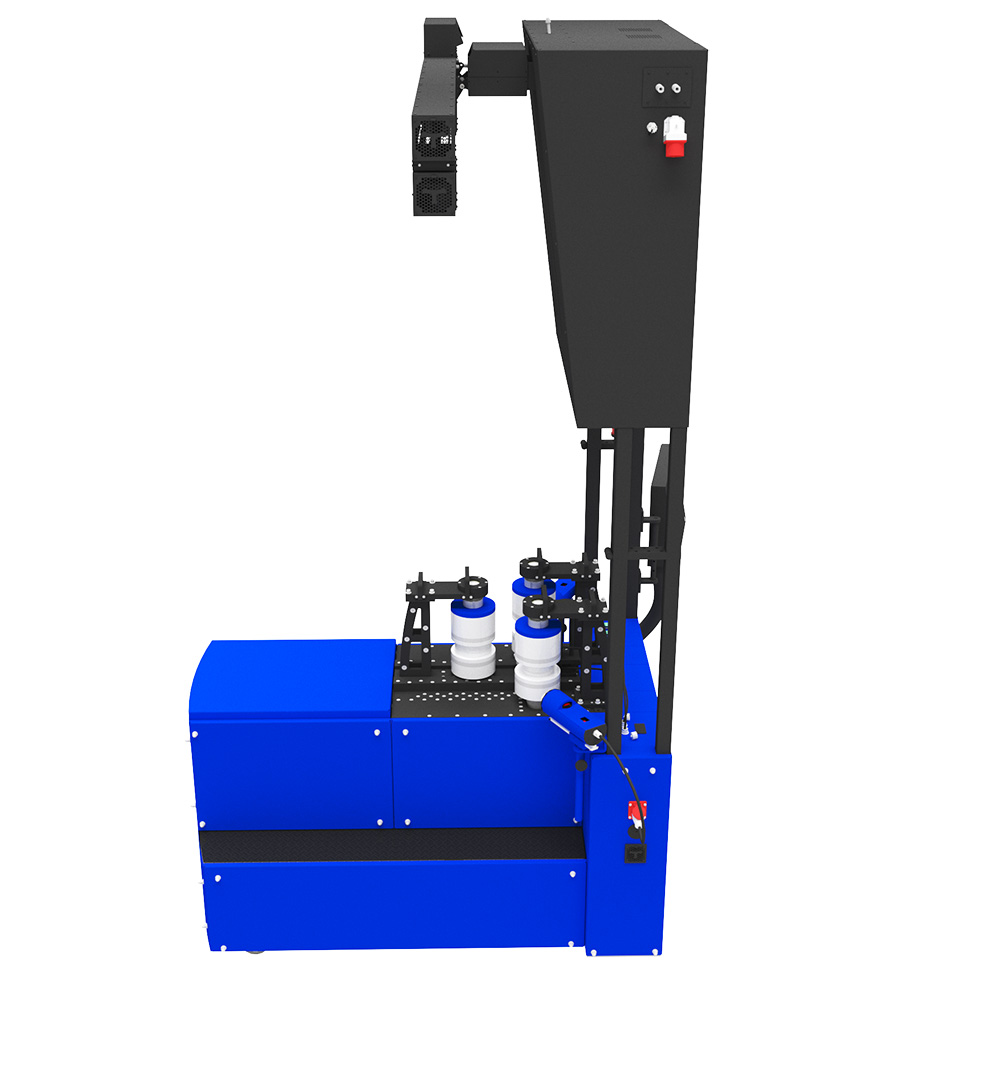

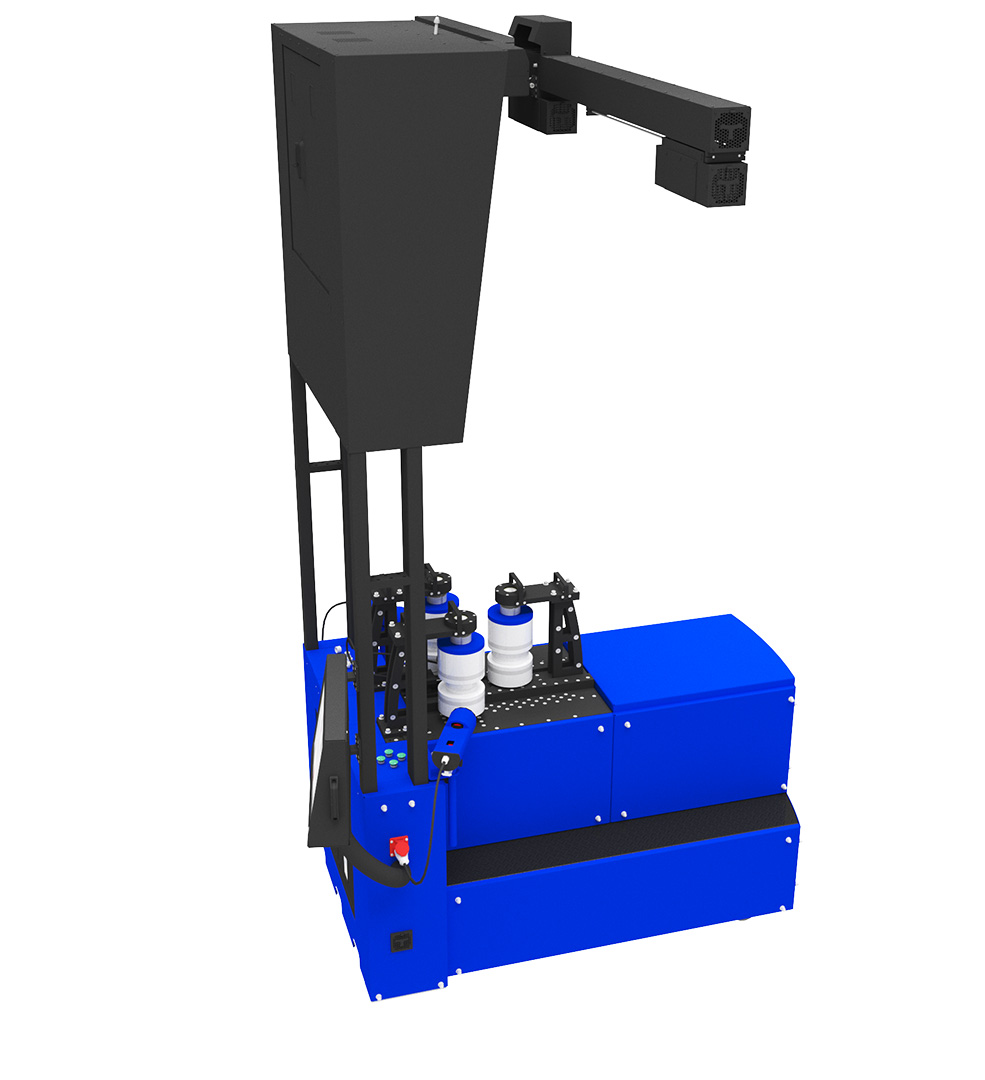

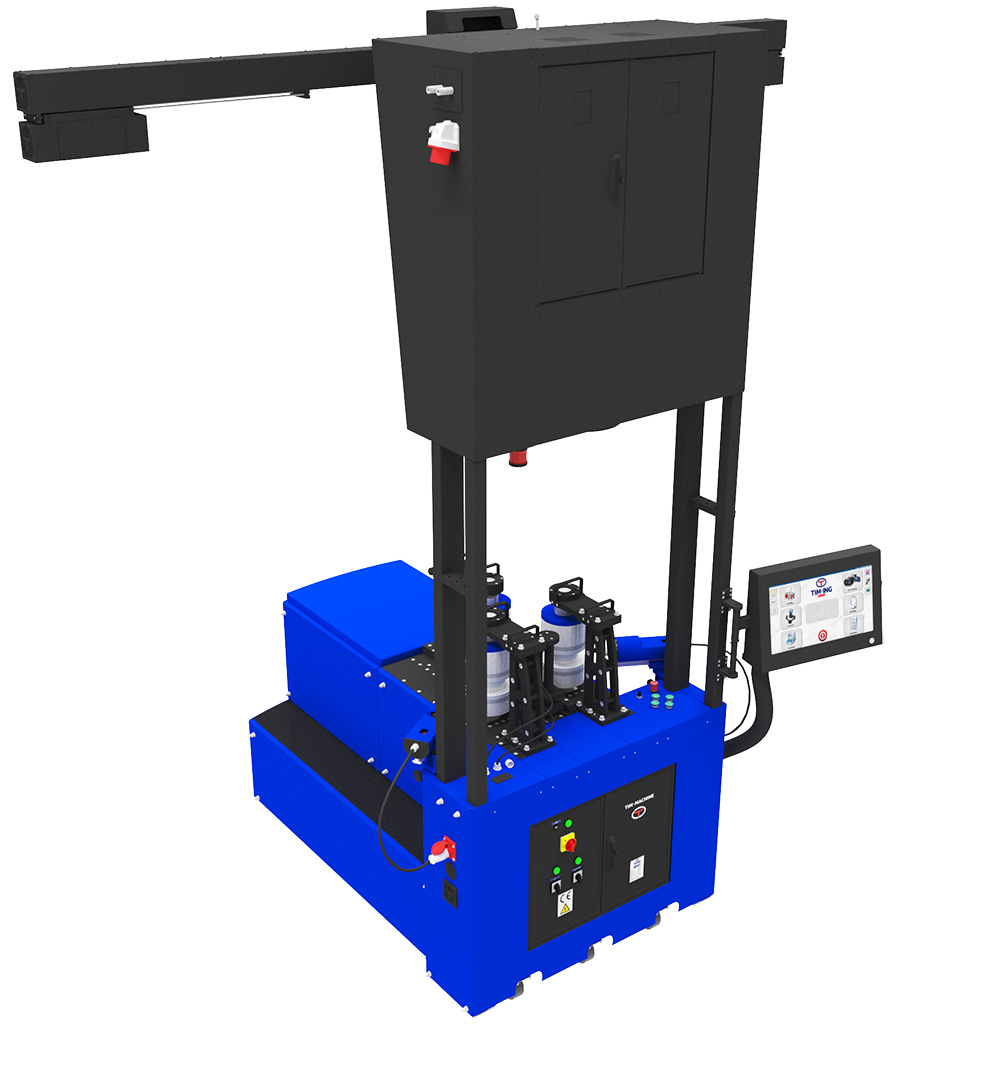

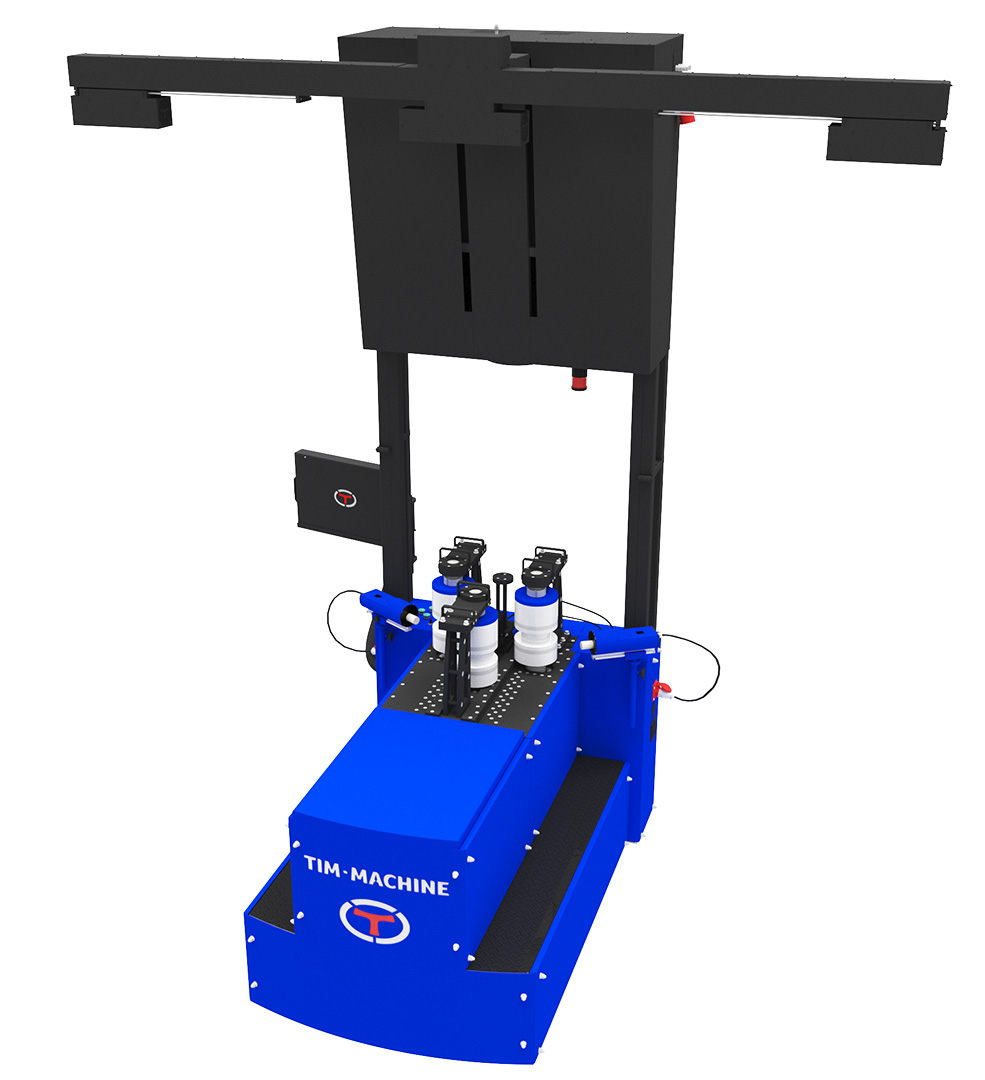

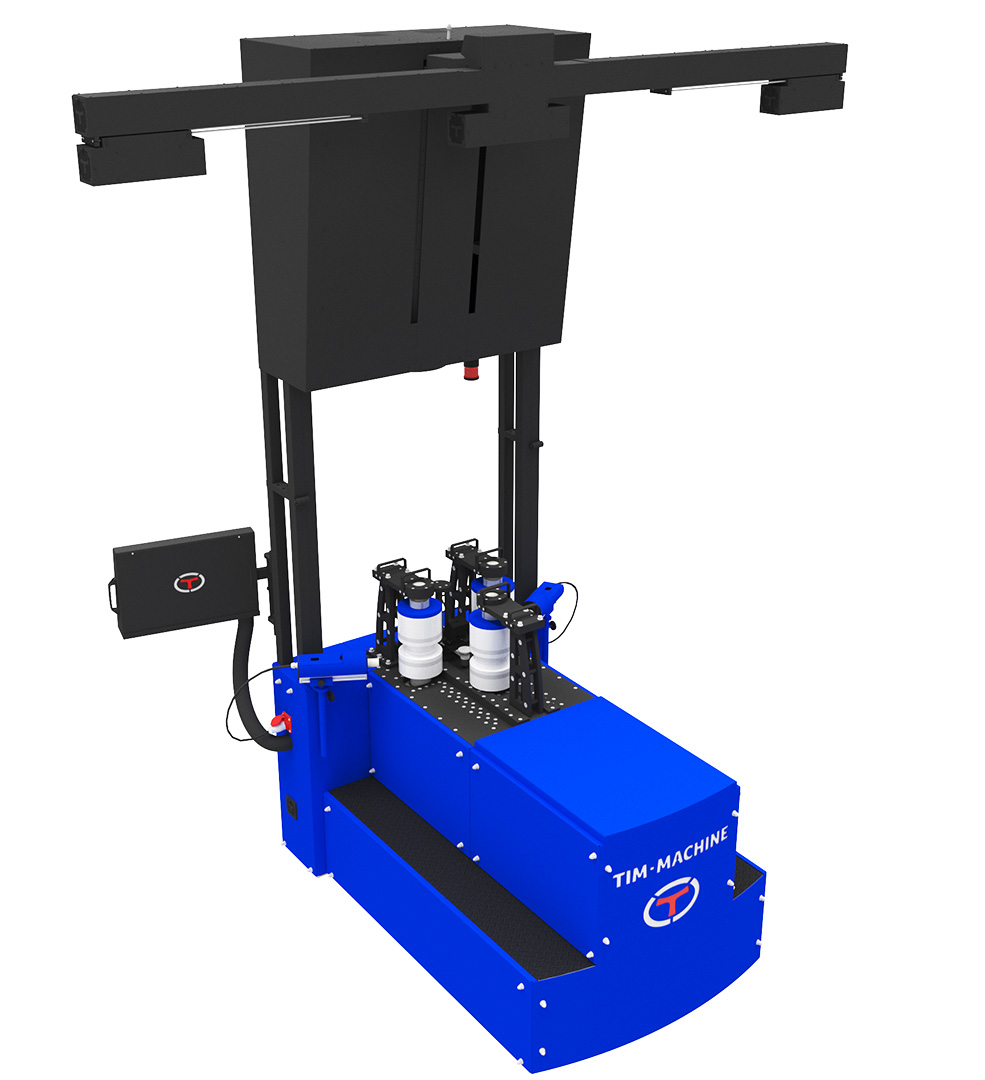

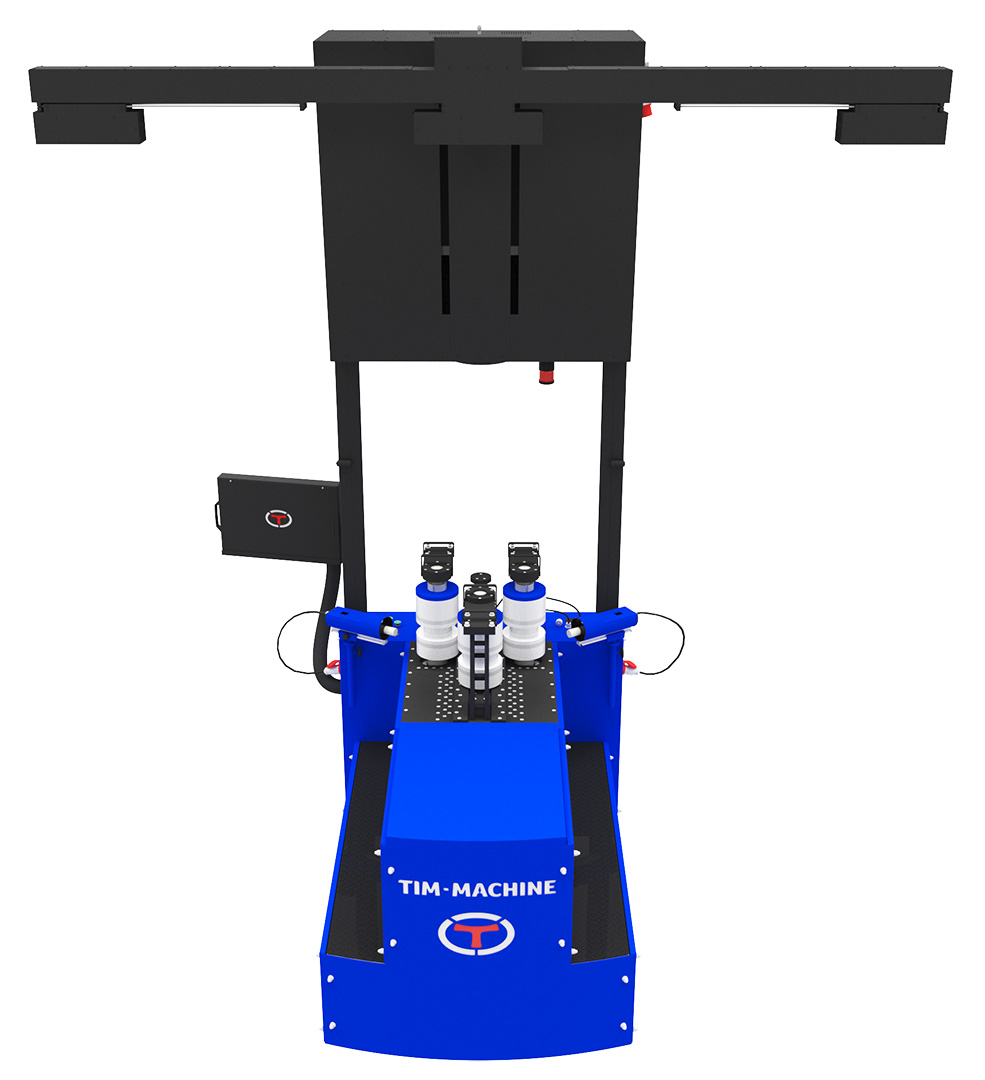

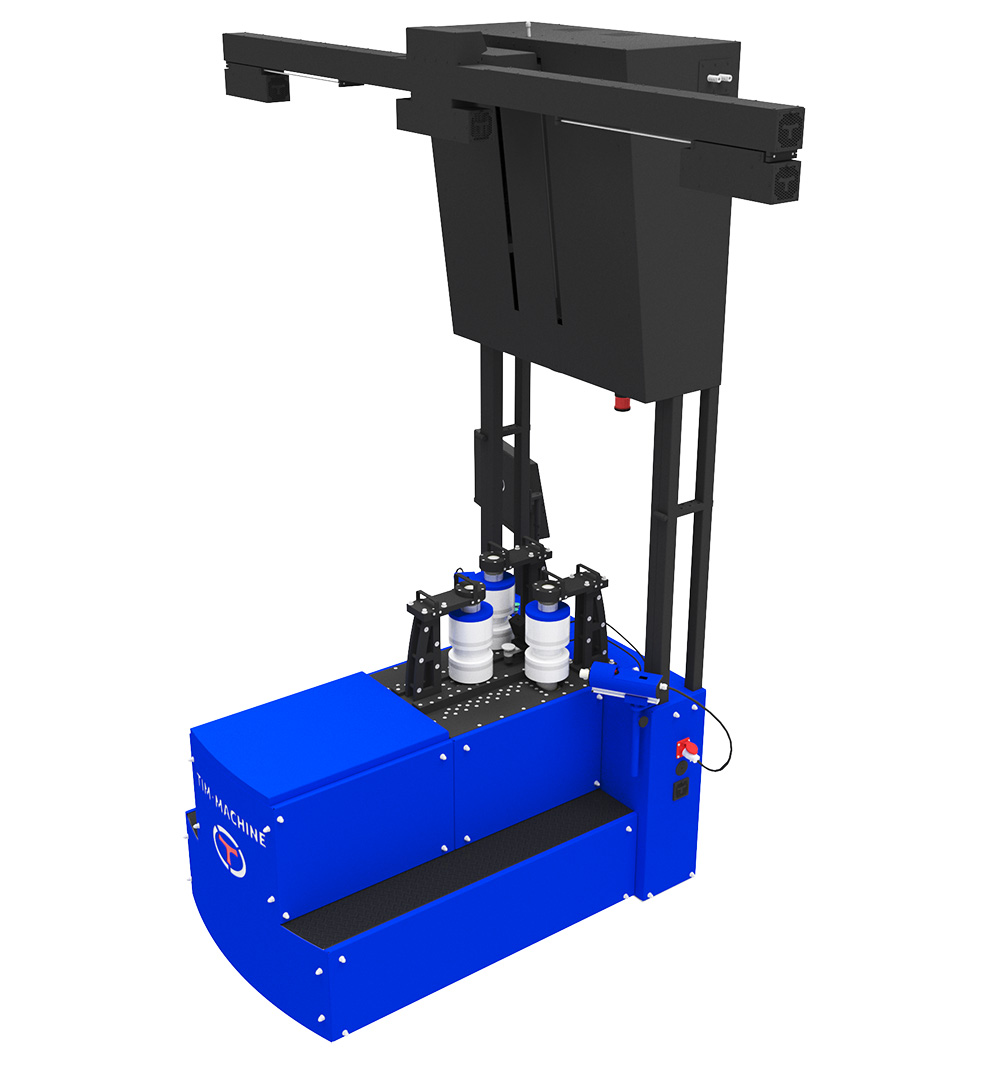

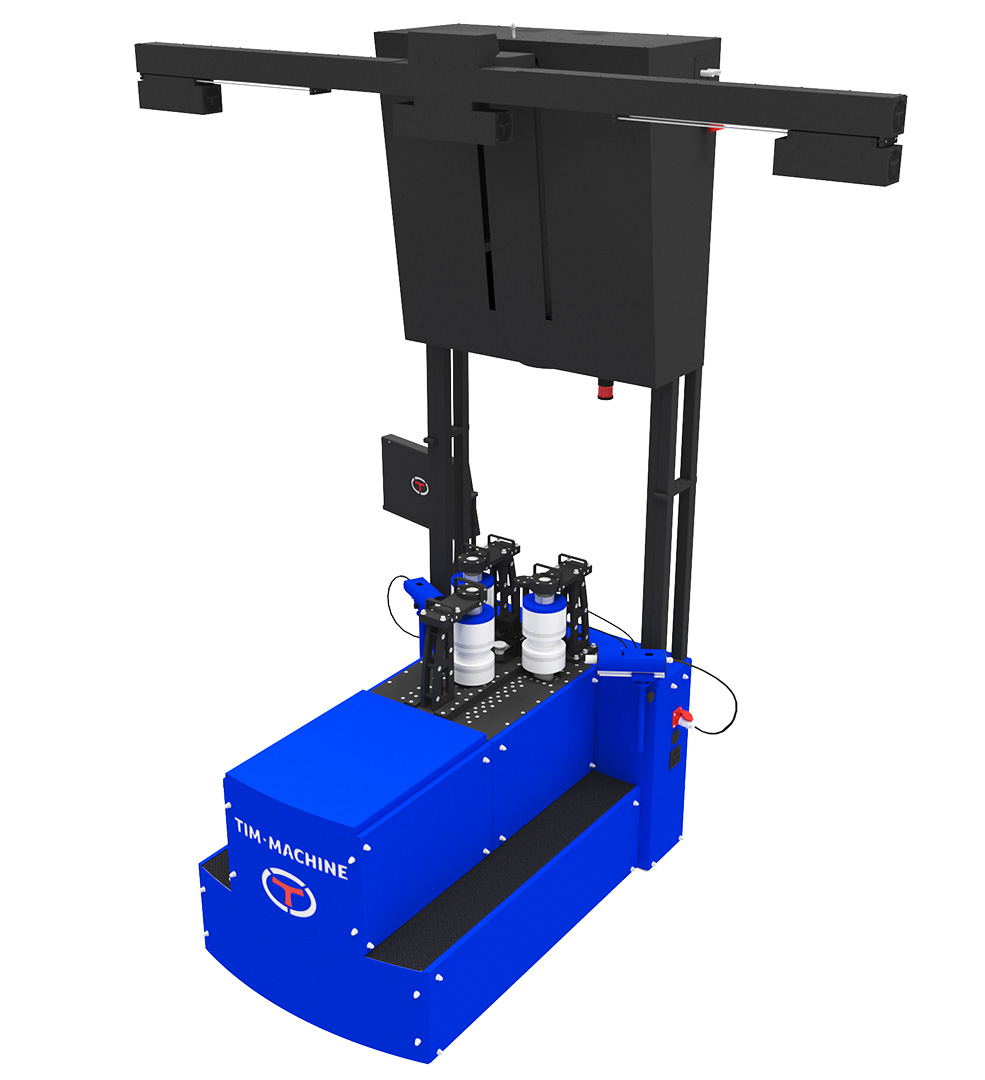

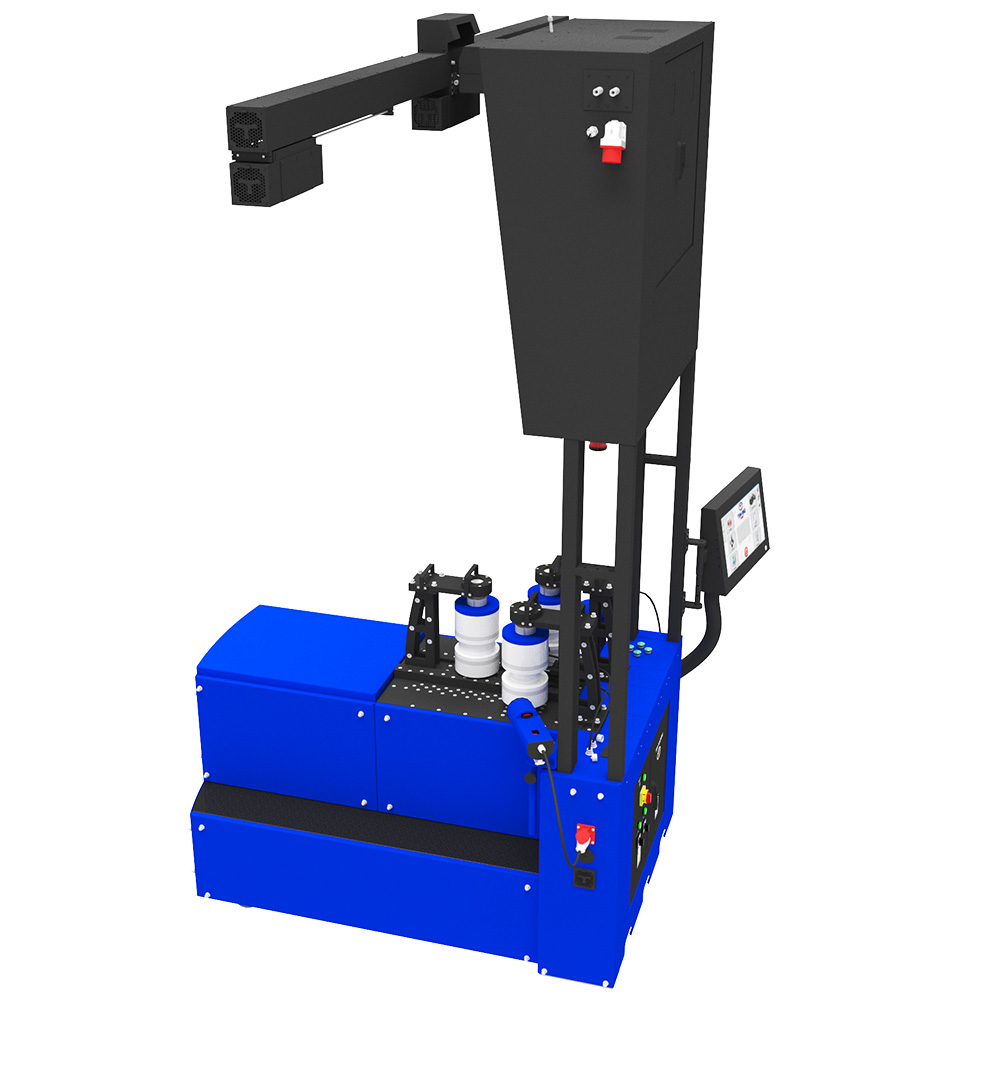

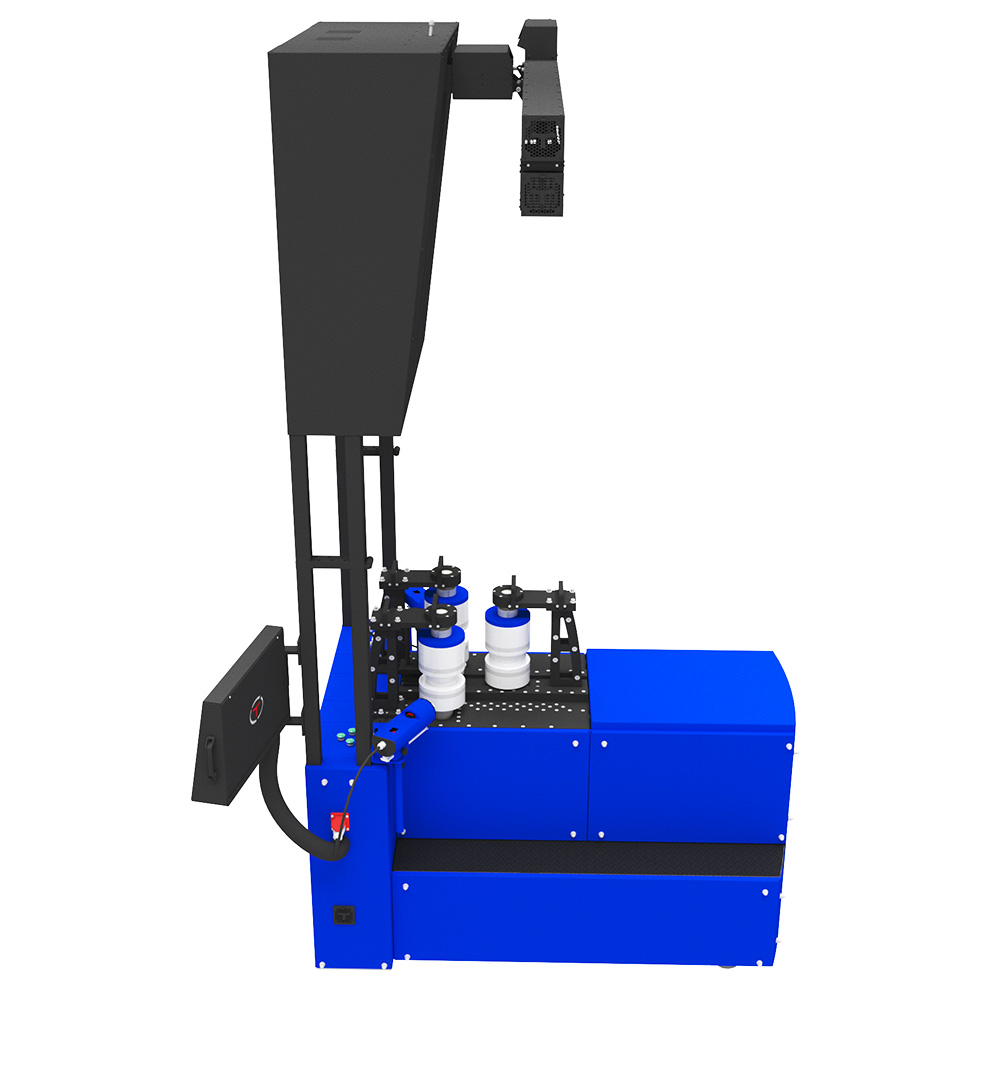

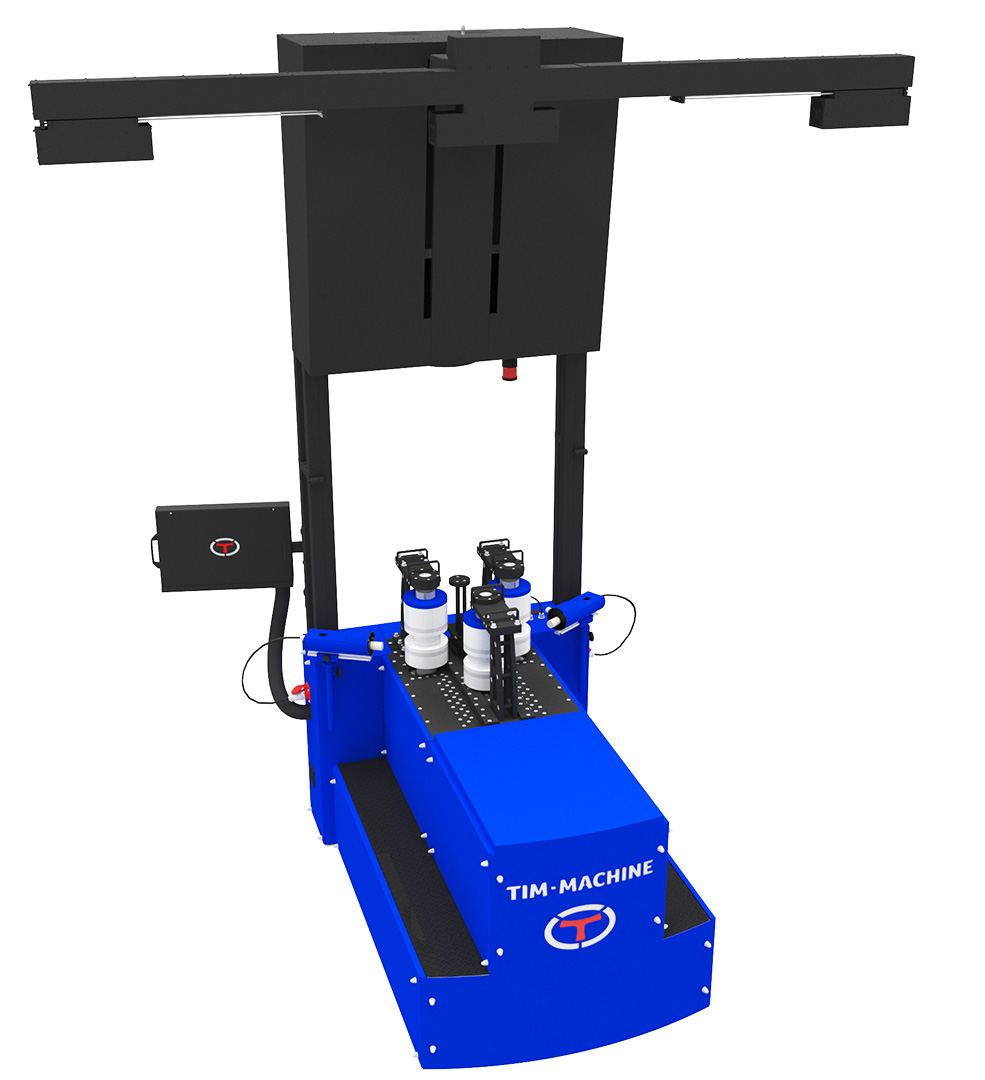

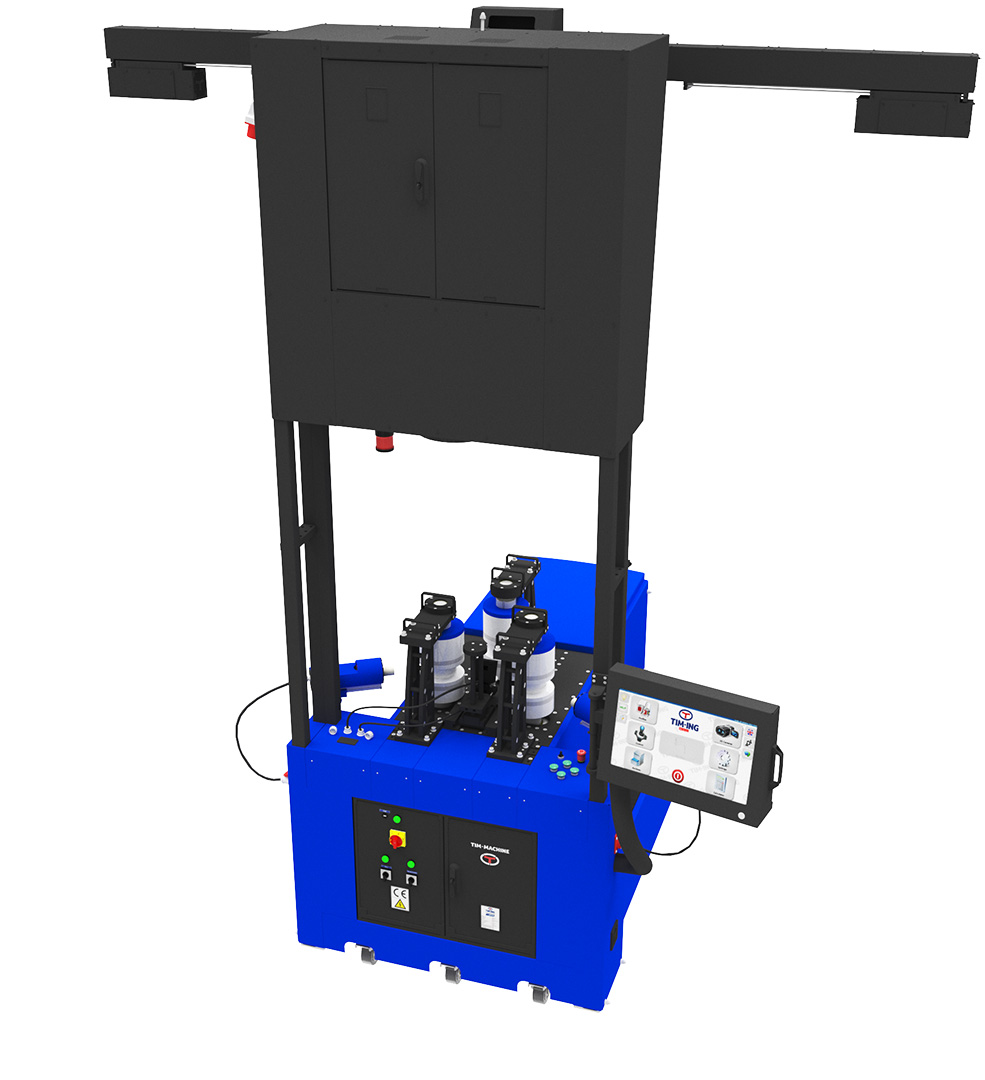

Profile bending machine
MODEL M
CNC 3D BHP
Basic equipment
Three high precision
3D cameras
- This bending machine is equipped with one central high precision 3D camera and two additional high precision 3D cameras placed at both sides.
- This version machine having 3D cameras of high resolution are used for all profiles having the width of 15 mm and bigger than that.
- The advantage of these high precision 3D cameras is that they are having the possibility to detect white, light, narrow, raw and dark profiles.
- The machine can bend predefined complex arches that have one, two and three radii automatically in one process flow.
- The machine can bend arches from 350 mm to 2800 mm in the automatic mode.
- This machine model is equipped with a mechanical holder for the encoder that measures the distance.
- The machine is equipped with a laser device to ensure symmetrical arches.
Profiles bending possibility
| Maximum profile height | 10 – 240 mm |
|---|---|
| Maximum profile width | 10 – 140 mm |
| Maximum profile (height + width) – Axis | 240 x 60 mm |
| Maximum profile (width + height) – Axis | 140 x 50 mm |
| Maximum profile length | Unlimited |
| Profile wall thickness | 1 – 5 mm |
Arches bending possibility
| Automatic bending arches with one radius | |
|---|---|
| Automatic bending arches with two radii | |
| Automatic bending arches with three radii | |
| Manual bending arches |
TECHNICAL SPECIFICATIONS
| Name | TIM-MACHINE |
|---|---|
| Model | MODEL M |
| Type of machine | CNC 3D BHP |
| Electric motor for X axis – back axle – 2 pcs | 4 kW + 4 kW |
| X axis – two back axles – max torque | 5058 Nm |
| Electric motor for X axis – middle axle – 1 pcs | 3 KW |
| X axis – middle axle – max torque per middle axle) | 2533 Nm |
| Electric motor for Y axis – threaded spindle – 1 pcs | 3 kW |
| Y axis – max torque per threaded spindle | 2452 Nm |
| Number of propulsive axles | 3 |
| Dimensions | 1800 x 2780 x 3650mm |
| Weight | 2170 kg |
| Axle rotation speed | 0-14 rpm |
| Axle diameter | 70 mm |
| Axle height | 300 mm |
| Voltage | 3x380V~50 Hz |
| Warranty | 1 year |
| Country of origin | Serbia |
